C | 3-fazna / 50Hz

Schneiderad

Fiksne oštrice u obliku pile upotrebljavaju se u kombinaciji s karbidnim oštricama u strukturi integriranoj u radno kolo. Ova konstrukcija osigurava da se vlaknasta strana tvar razreže i da se kanalizacijska voda premjesti bez začepljenja.

Downloads

Kurve_U.jpg Kurve_U.jpg

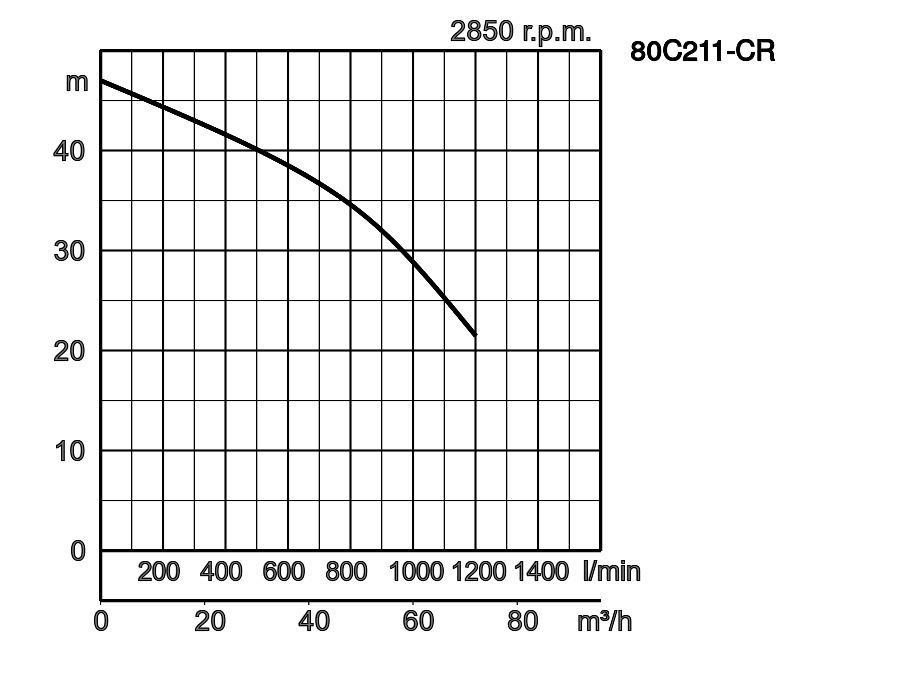

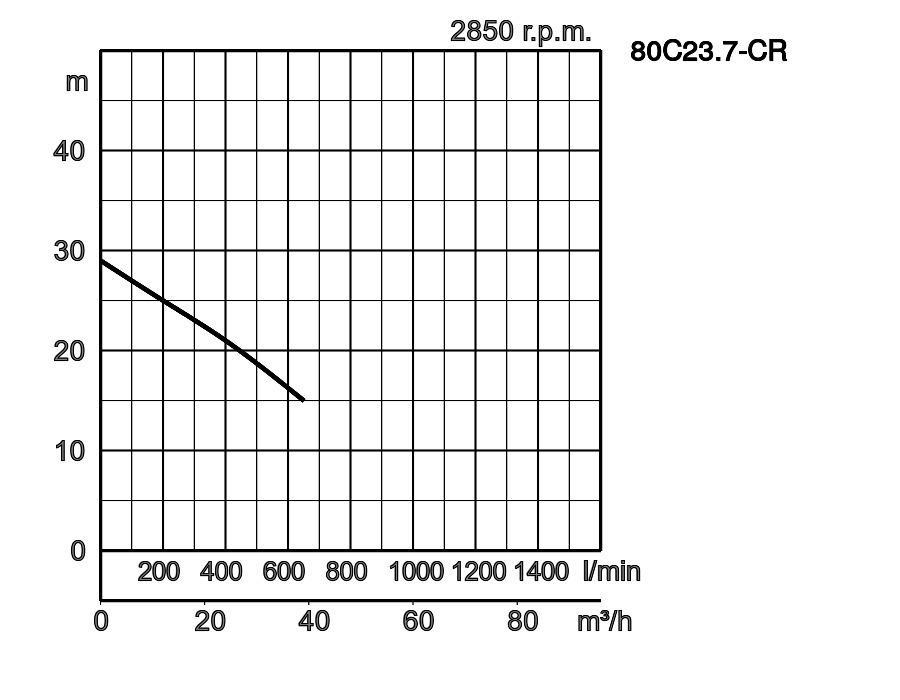

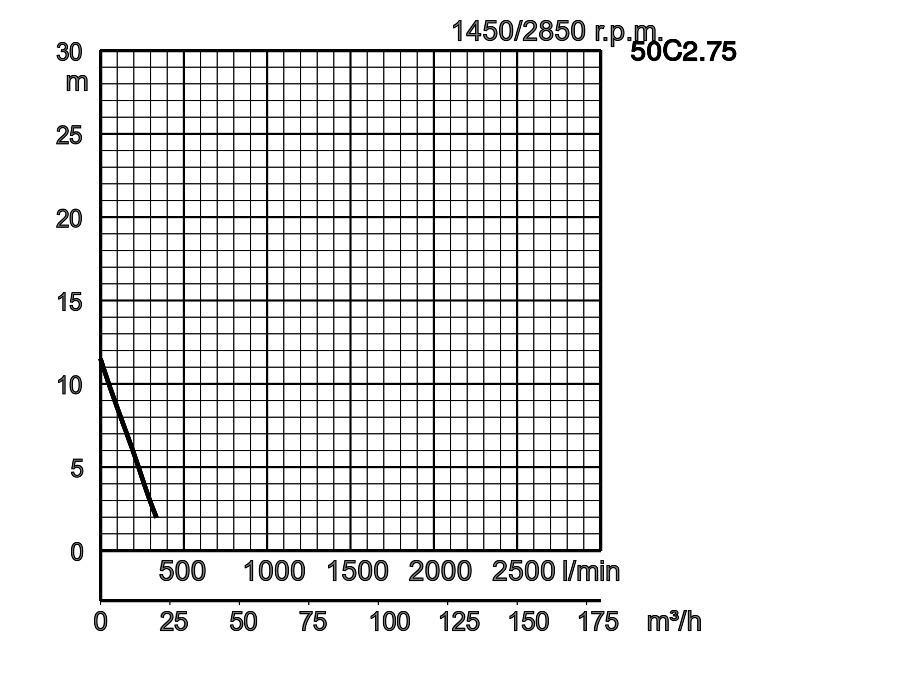

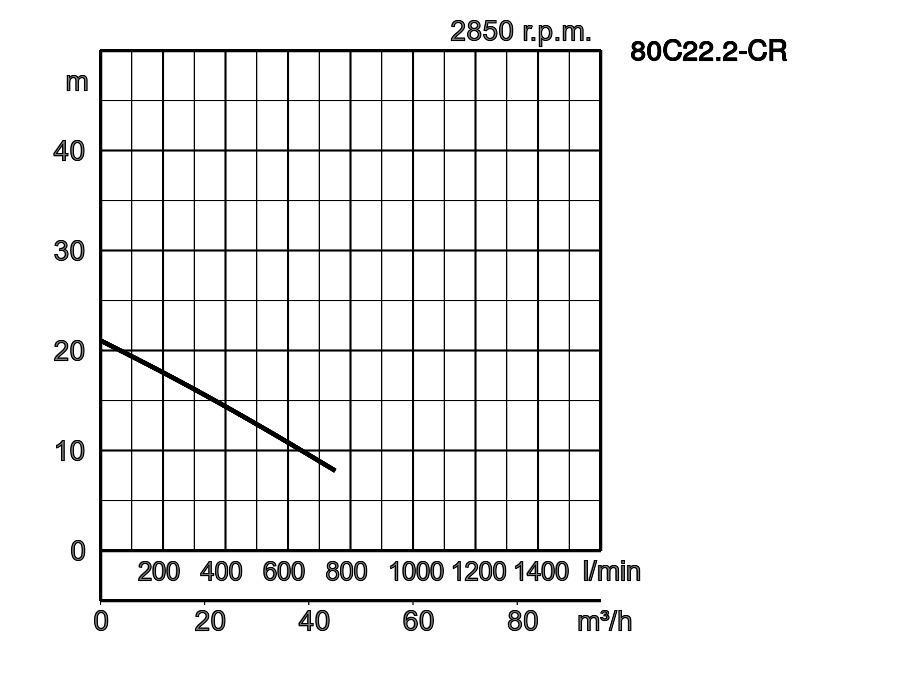

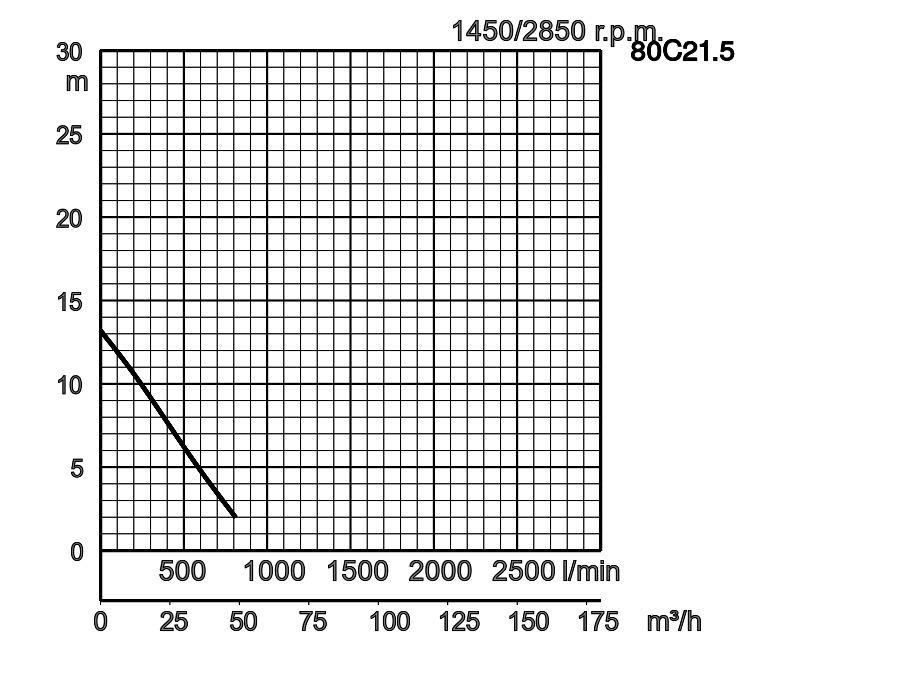

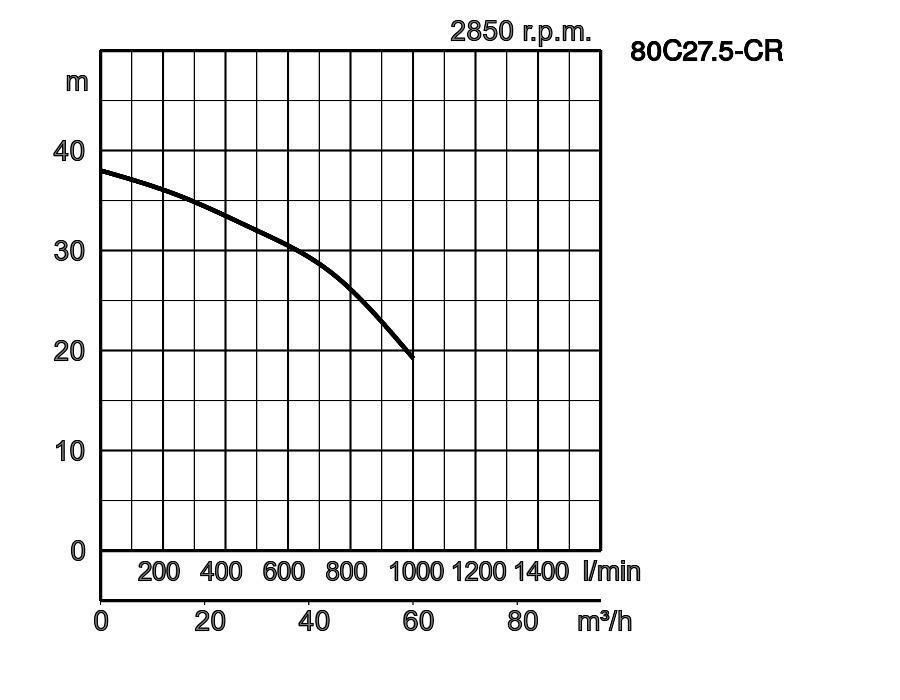

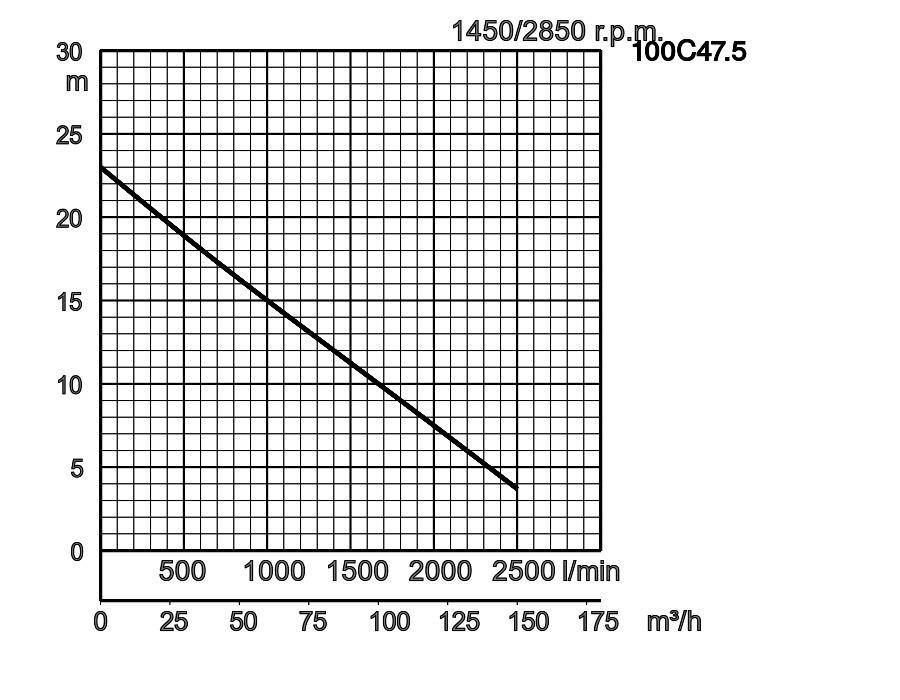

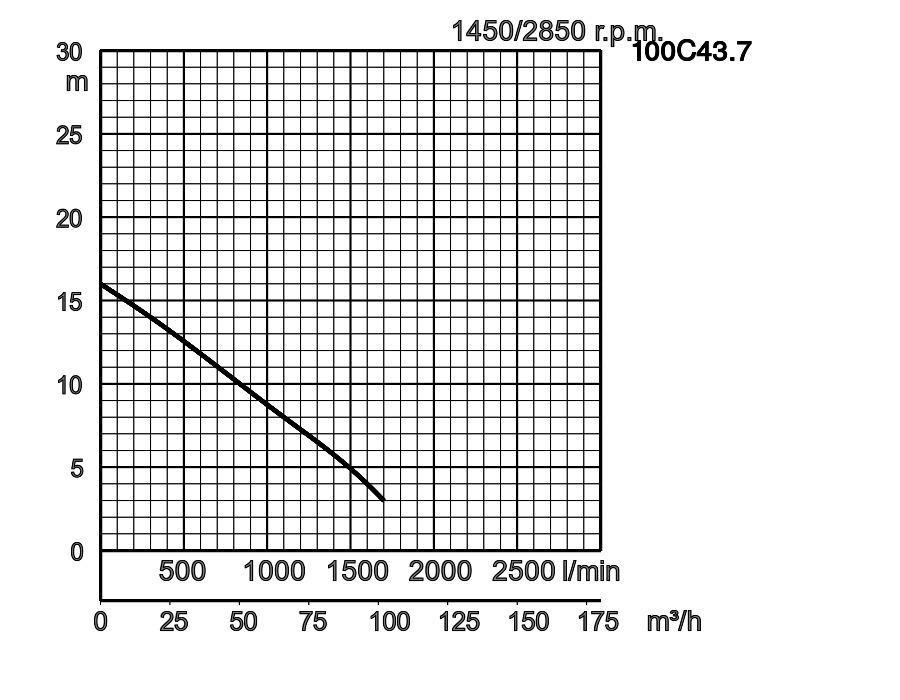

ModelKrivulja označena bojomProvrt mmIzlazna snaga kWFazer.p.m.Dobavna visina maks. mKapacitet maks. l/minMetoda pokretanjaTežina suve pumpe u kg*Prolaz radnoga kola mm
samostojećas priključkom vodilicesamostojećas priključkom vodilice
50C2.75 TOS50C2.75
1
50 0,75 3 2850 11,5 335 izravno 24,0 23,0 21
80C21.5 TOS80C21.5
2
80 1,5 3 2850 13,2 810 izravno 36,0 34,0 37

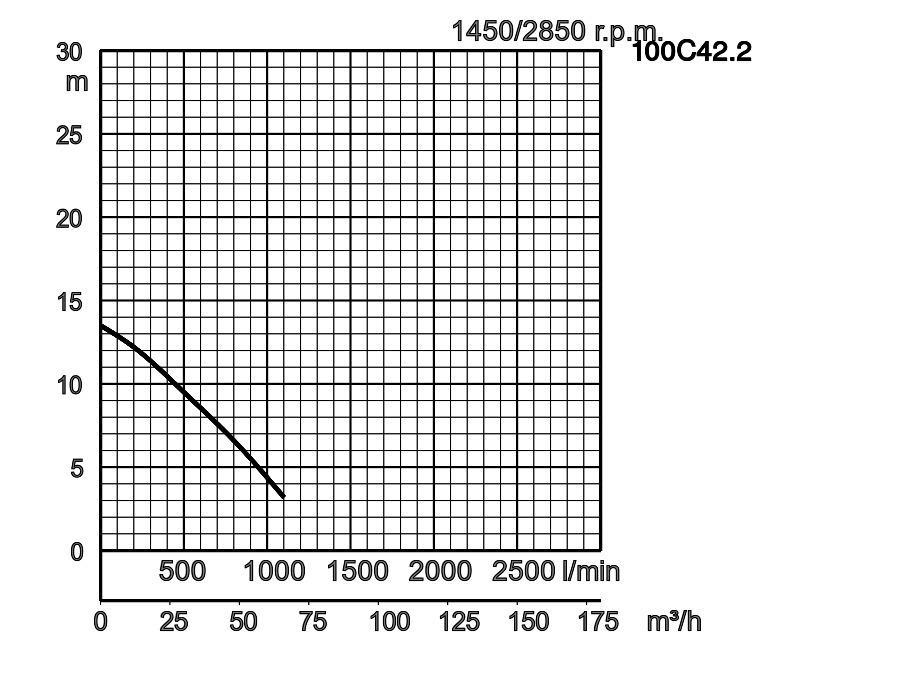

100C42.2 TOS100C42.2
3
100 2,2 3 1450 13,5 1100 izravno 70,0 64,0 44
100C43.7 TOS100C43.7
4
100 3,7 3 1450 16,0 1700 izravno 86,0 80,0 60

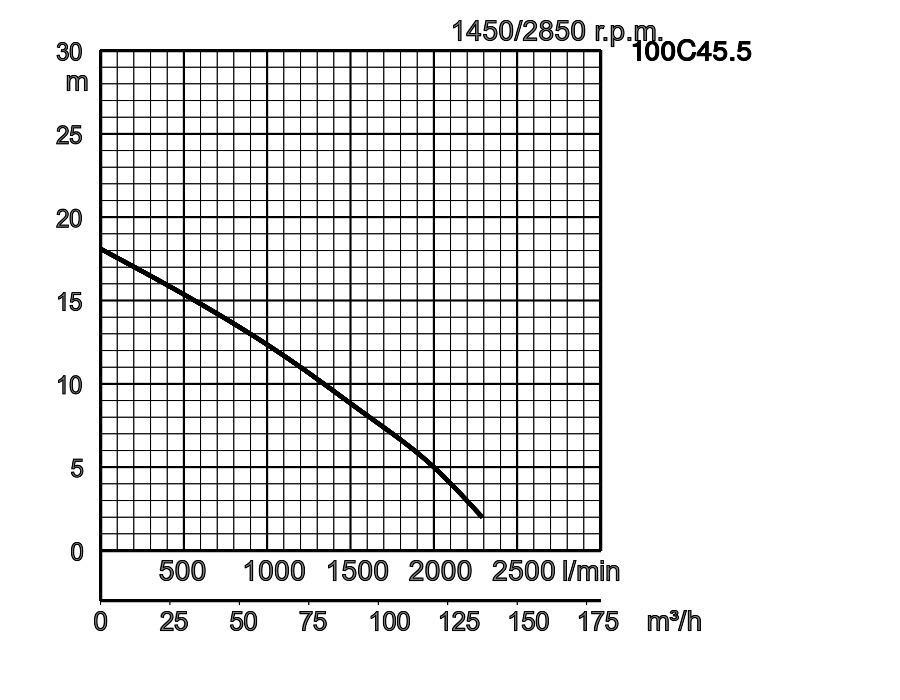

100C45.5 TOS100C45.5
5
100 5,5 3 1450 18,1 2290 izravno 140,0 133,0 40
100C47.5 TOS100C47.5
6
100 7,5 3 1450 23,0 2500 izravno 159,0 152,0 40

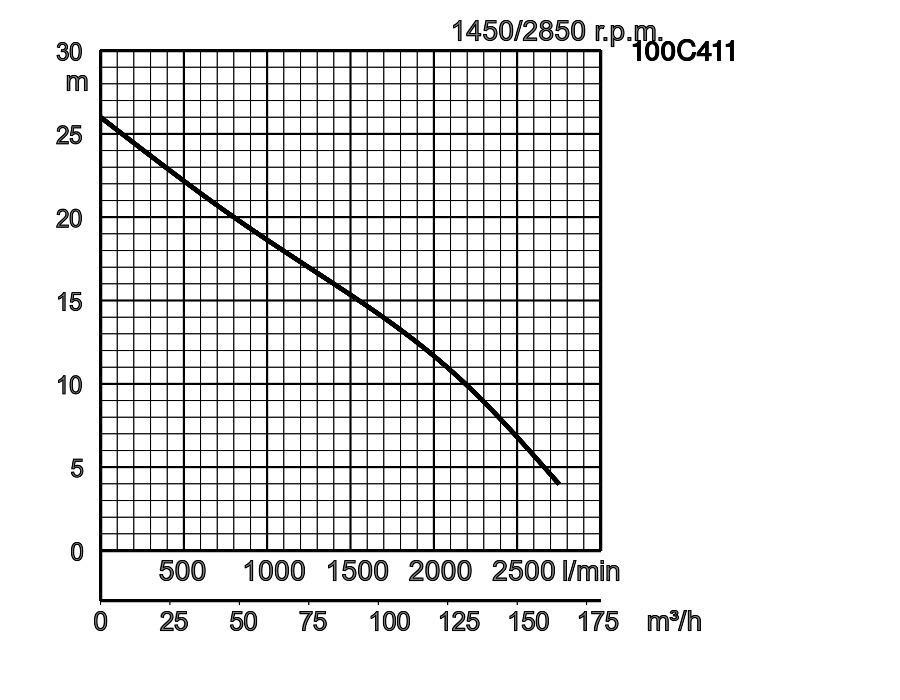

100C411 TOS100C411
7
100 11 3 1450 26,0 2750 zvijezda/trokut 184,0 177,0 50
80C22.2-CR TOS80C22.2-CR
8
80 2,2 3 2850 21,0 750 izravno 70,0 64,0 20x31
80C23.7-CR TOS80C23.7-CR
9
80 3,7 3 2850 29,0 650 izravno 70,0 64,0 22x31

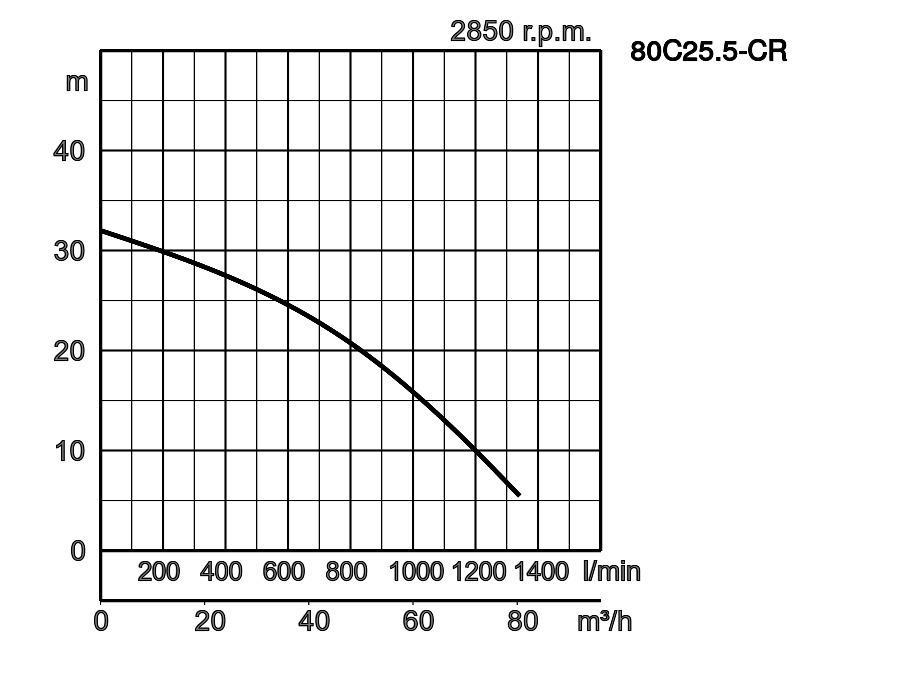

80C25.5-CR TOS80C25.5-CR
10
80 5,5 3 2850 32,0 1340 izravno 125,0 117,0 29x23
80C27.5-CR TOS80C27.5-CR
11
80 7,5 3 2850 38,0 1000 izravno 130,0 122,0 26x23
80C211-CR TOS80C211-CR
12
80 11 3 2850 47,0 1200 zvijezda/trokut 160,0 152,0 26x25,5
ø Provrt za ispust mm 50mm, 80mm,100mm
Transportni medij Temperatura 1 - 40 °C
Vrsta medija Otpadna voda i tekućina koja prenosi otpad i strane čestice
Pumpa Komponente Radno kolo Nezačepljuće radno kolo s mehanizmom za rezanje
Brtva osovine Dvostruka mehanička brtva
Ležajevi Oklopljeni kuglični ležajevi
Materijal Radno kolo Sivi lijev EN-GJL-200 sa sinteriranim oštricom od legure volframa i karbida, Željezni lijev s kromom sa sinteriranim oštricom od legure volframa i karbida
Kućište Sivi lijev EN-GJL-201
Usisna ploča Nodularni lijev EN-GJS-700-3, Željezni lijev s kromom
Brtva osovine Silicijev karbid u uljnoj kupki
Motor Izolacija Izolacijski razred E, Izolacijski razred F
faza/napon 3-fazno / 400V / 50Hz / izravno pokretanje (d.o.l)., 3-fazno / 400V / 50Hz / pokretanje zvijezda-trokut
Zaštita za motora (ugrađena) Kružna toplinska sklopka
Podmazivanje Turbinsko ulje (ISO VG32)
Tip, polovi Indukcijski motor, 2 pola, IP69, Indukcijski motor, 4 pola, IP69
Materijal Kućište Sivi lijev EN-GJL-151, Sivi lijev EN-GJL-201
Osovina Nehrđajući čelik EN-X6Cr14, Nehrđajući čelik EN-X30Cr14
Kabel Gumeno, NSSHÖU
Ispusni priključak Unutarnji navoj, JIS10K prirubnica
Izborna dodatna oprema Priključak vodilice „TOS“ (vodeći potporanj, stojno podnožje, lanac za podizanje) / komplet s lukom i stalkom za samostojeće tipove

Dimenzije u mm:

  • 50C2.75
  • 80C21.5
  • 100C42.2
  • 100C43.7
  • 100C45.5
  • 100C47.5
  • 100C411
  • 80C22.2-CR
  • 80C23.7-CR
  • 80C25.5-CR
  • 80C27.5-CR
  • 80C211-CR

W1: najniža razina tekuće vode
ModelAA4BDHW1W2
50C2.75405351196250415145385
80C21.5446392234250536190465
100C42.2594489328324616225570
100C43.7602497333331680235635
100C45.5687582372400824335700
100C47.5687582372400814335720
100C4117106053724311000300840
80C22.2-CR519427289260611180565
80C23.7-CR519427291260613180565
80C25.5-CR615522320345879225745
80C27.5-CR615522320345879225745
80C211-CR615522320345927225770


Uzmite u obzir: ispusni luk, spojno podnožje i komplet za stajanje dodatna su oprema i moraju se naručiti zasebno

Dimenzije - tip priključka vodilice u mm:

ModelAA5DHH1W1W2
50C2.75368175250459650190430
80C21.5410165250586-240515
100C42.2484165324631790240585
100C43.7490-339690860245645
100C45.56191813848221160305690
100C47.56191813848121155305710
100C4116421814319341265300805
80C22.2-CR435165260640860205595
80C23.7-CR435165260640860205595
80C25.5-CR5301653208771200220745
80C27.5-CR5301653208771200220745
80C211-CR1655303209251250220765
  • 50C2.75
  • 80C21.5
  • 100C42.2
  • 100C43.7
  • 100C45.5
  • 100C47.5
  • 100C411
  • 80C22.2-CR
  • 80C23.7-CR
  • 80C25.5-CR
  • 80C27.5-CR
  • 80C211-CR

W1: najniža razina tekuće vode
Provrt za ispust mmdT1T2T3T4T5T6K1K2K3B1
50mm50230185502516020012012010250
80mm80230195603222025017017015290
100mm100230195603222025017017015290
