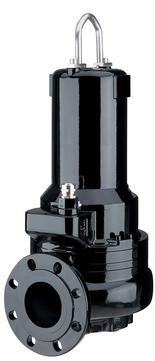

A three phase wastewater range of pumps fitted with oil chamber sensors. Vortex impellers ensure flow without risk of clogging. Optional cooling jacket for dry mounting and ATEX models available.
| Model | Colour code curve | ø Discharge bore mm | Type of Fluid | Max. Solid Handling mm | Max. PH Value | Max. Capacity l/min | Max. Head m | Motor output kW | Phase / Voltage | |
|---|---|---|---|---|---|---|---|---|---|---|
| free standing | with guide rail fitting | |||||||||

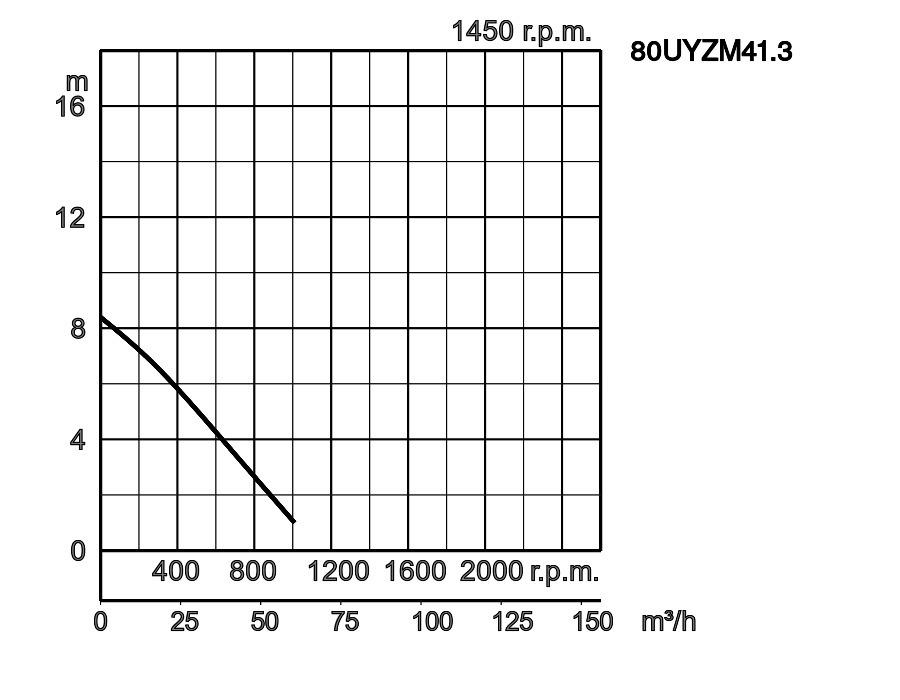

| 80UYZM41.3 | TOS80UYZM41.3 |
1
|
80 | Sewage | 80 | 5-9 | 1005 | 8.40 | 1,3 | 3-phase / 400V / 50Hz |

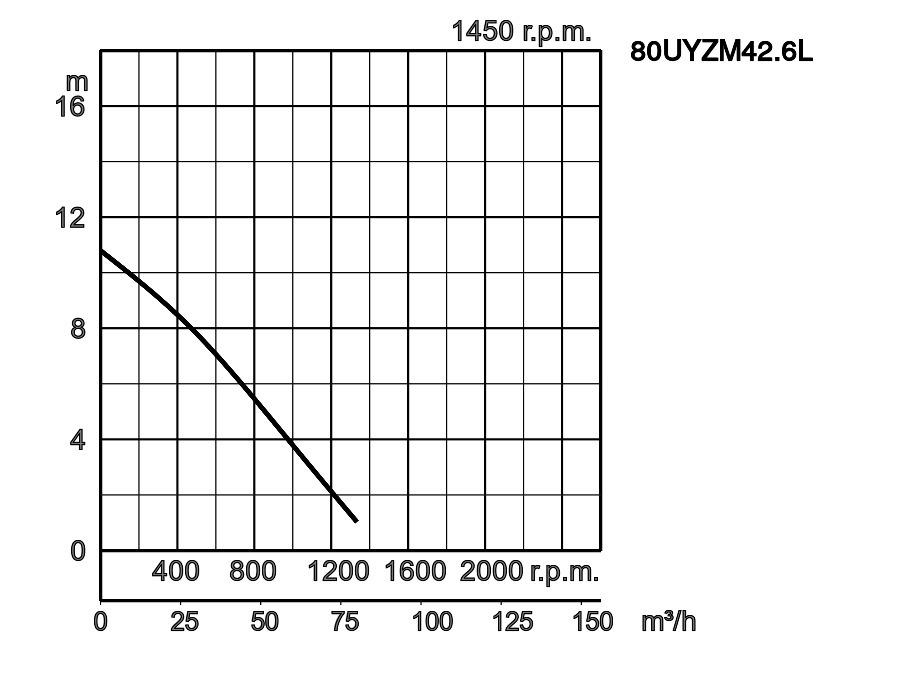

| 80UYZM42.6L | TOS80UYZM42.6L |
2
|
80 | Sewage | 80 | 5-9 | 1333 | 10.80 | 2,6 | 3-phase / 400V / 50Hz |

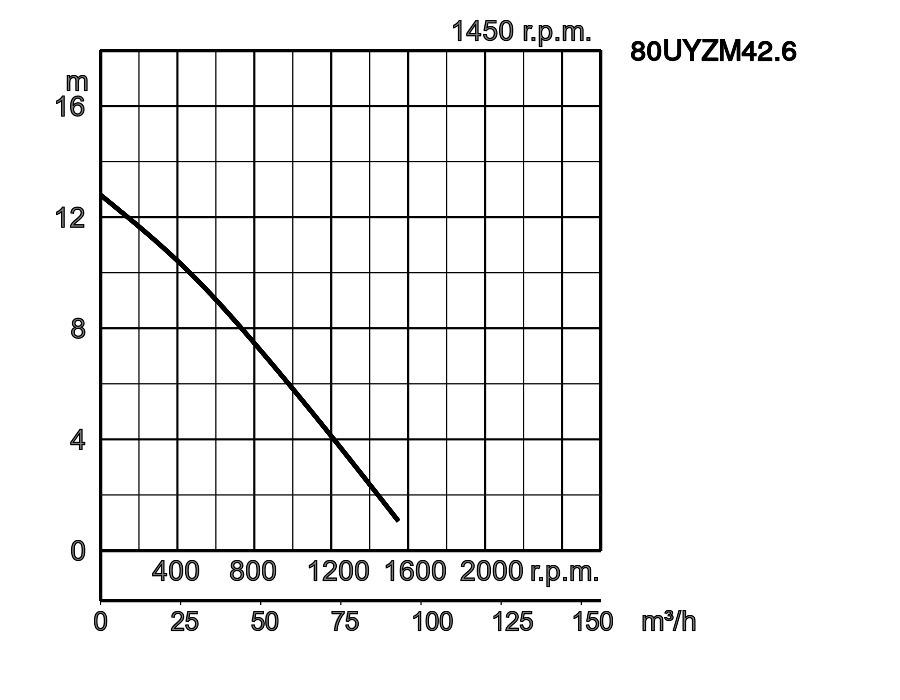

| 80UYZM42.6 | TOS80UYZM42.6 |
3
|
80 | Sewage | 80 | 5-9 | 1550 | 12.80 | 2,6 | 3-phase / 400V / 50Hz |

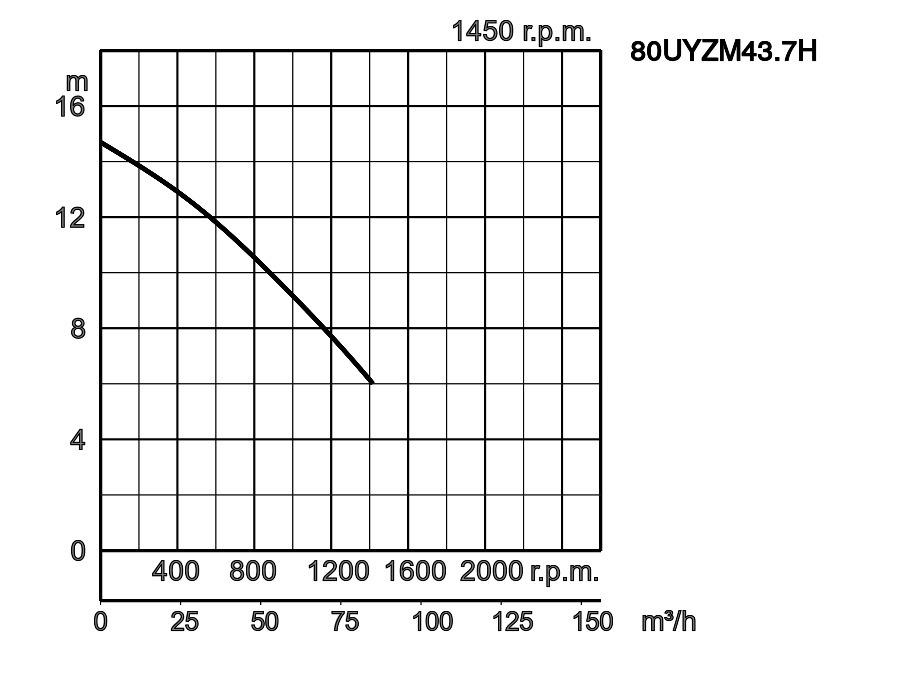

| 80UYZM43.7H | TOS80UYZM43.7H |
4
|
80 | Sewage | 80 | 5-9 | 1413 | 14.70 | 3,7 | 3-phase / 400V / 50Hz |

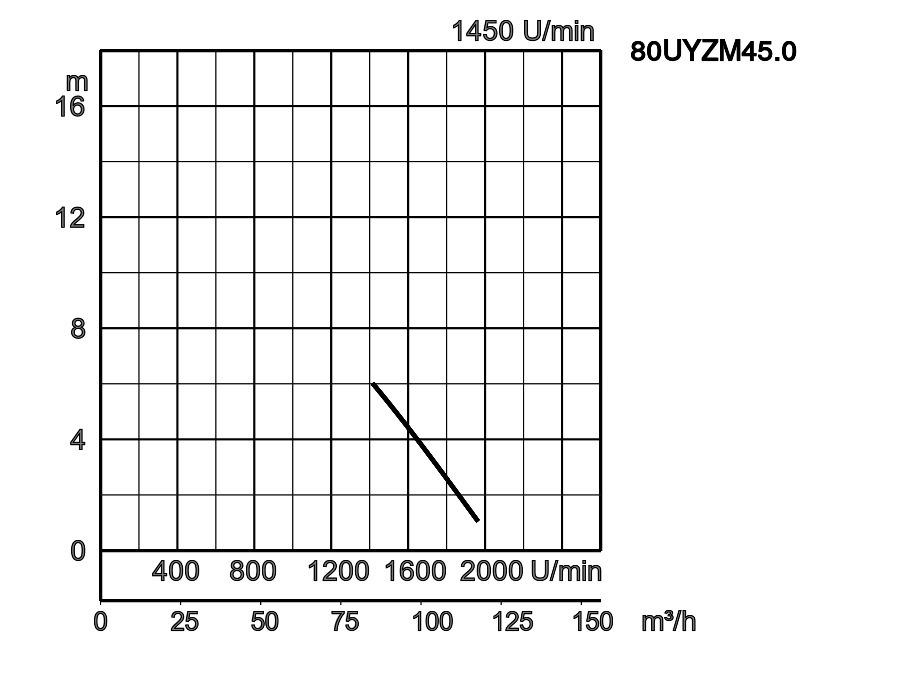

| 80UYZM45.0 | TOS80UYZM45.0 |
5
|

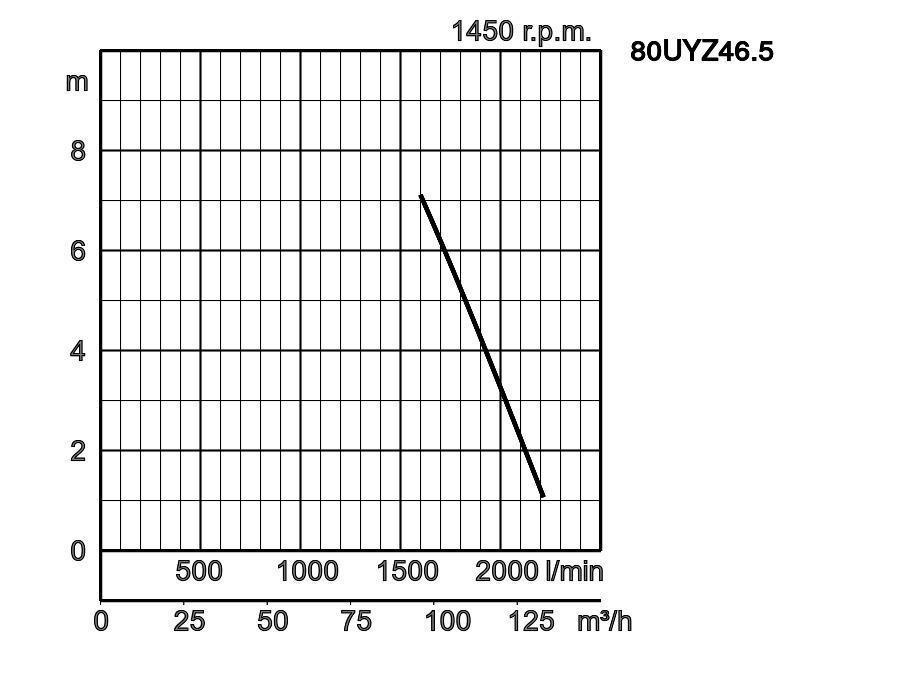

80 | Sewage | 80 | 5-9 | 1967 | 14.70 | 5,0 | 3-phase / 400V / 50Hz |
| 80UYZM46.5 | TOS80UYZM46.5 |
6
|
80 | Sewage | 80 | 5-9 | 2217 | 17.20 | 6,5 | 3-phase / 400V / 50Hz |

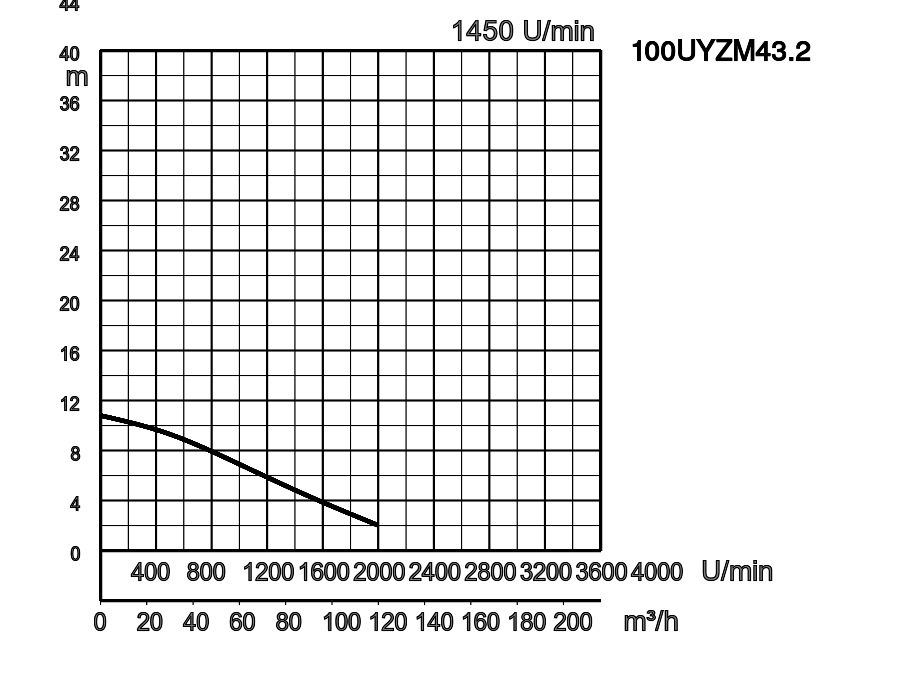

| 100UYZM43.2 | TOS100UYZM43.2 |
7
|
100 | Sewage | 100 | 5-9 | 2000 | 10.80 | 3,2 | 3-phase / 400V / 50Hz |

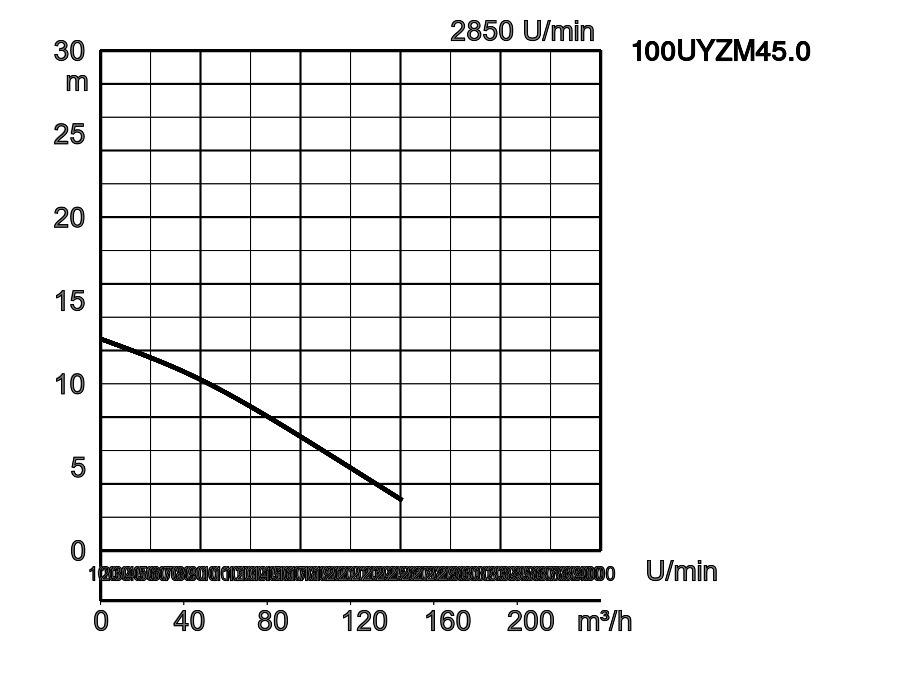

| 100UYZM45.0 | TOS100UYZM45.0 |
8
|
100 | Sewage | 100 | 5-9 | 2433 | 12.20 | 5,0 | 3-phase / 400V / 50Hz |

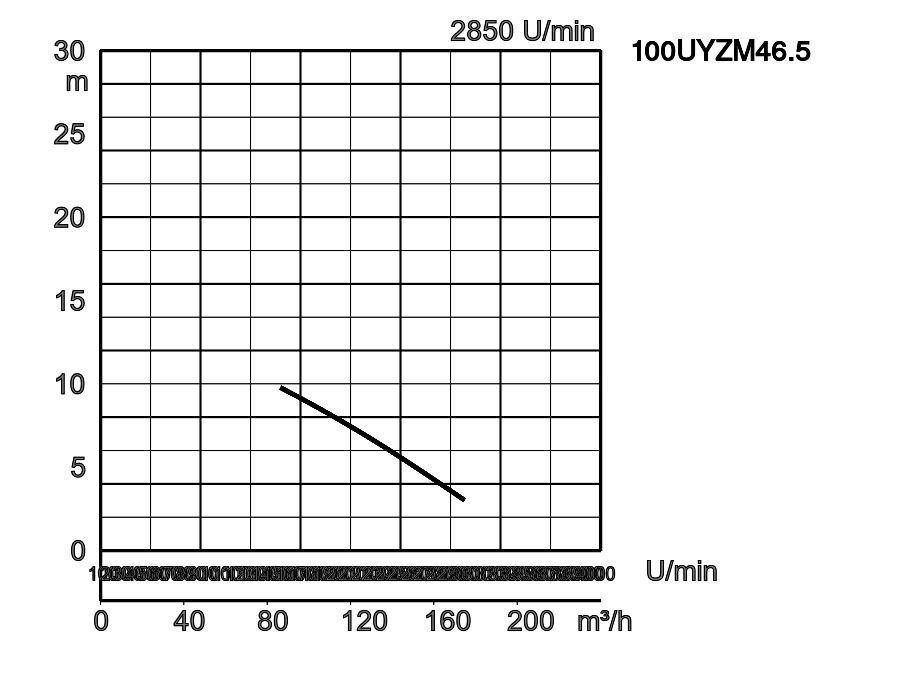

| 100UYZM46.5 | TOS100UYZM46.5 |
9
|
100 | Sewage | 100 | 5-9 | 2833 | 13.80 | 6,5 | 3-phase / 400V / 50Hz |

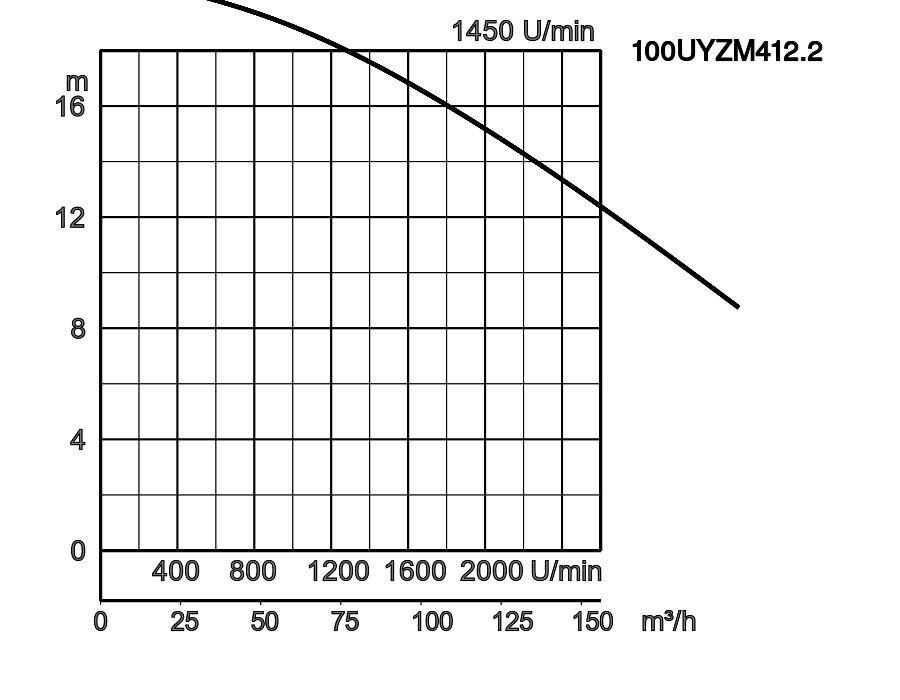

| 100UYZM412.2 | TOS100UYZM412.2 |
10
|
100 | Sewage | 100 | 5-9 | 3333 | 20.80 | 12,2 | 3-phase / 400V / 50Hz |
| 100UYZMK412.2 | 100UYZMK412.2 | 100 | Sewage | 100 | 5-9 | 3333 | 20.80 | 12,2 | 3-phase / 400V / 50Hz | |
| 100UYZM414.6 | TOS100UYZM414.6 |
11
|
100 | Sewage | 100 | 5-9 | 3500 | 22.70 | 14,6 | 3-phase / 400V / 50Hz |
| 100UYZMK414.6 | 100UYZMK414.6 | 100 | Sewage | 100 | 5-9 | 3500 | 22.70 | 14,6 | 3-phase / 400V / 50Hz | |
| 100UYZM419.3 | TOS100UYZM419.3 |
12
|
100 | Sewage | 100 | 5-9 | 3800 | 26.80 | 19,3 | 3-phase / 400V / 50Hz |
| 100UYZMK419.3 | 100UYZMK419.3 | 100 | Sewage | 100 | 5-9 | 3800 | 26.80 | 19,3 | 3-phase / 400V / 50Hz | |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1005 |
| Max. Head m | 8.40 |
| Motor output kW | 1,3 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1333 |
| Max. Head m | 10.80 |
| Motor output kW | 2,6 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1550 |
| Max. Head m | 12.80 |
| Motor output kW | 2,6 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1413 |
| Max. Head m | 14.70 |
| Motor output kW | 3,7 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1967 |
| Max. Head m | 14.70 |
| Motor output kW | 5,0 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 80 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2217 |
| Max. Head m | 17.20 |
| Motor output kW | 6,5 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2000 |
| Max. Head m | 10.80 |
| Motor output kW | 3,2 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2433 |
| Max. Head m | 12.20 |
| Motor output kW | 5,0 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2833 |
| Max. Head m | 13.80 |
| Motor output kW | 6,5 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3333 |
| Max. Head m | 20.80 |
| Motor output kW | 12,2 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3333 |
| Max. Head m | 20.80 |
| Motor output kW | 12,2 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3500 |
| Max. Head m | 22.70 |
| Motor output kW | 14,6 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3500 |
| Max. Head m | 22.70 |
| Motor output kW | 14,6 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3800 |
| Max. Head m | 26.80 |
| Motor output kW | 19,3 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100 |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3800 |
| Max. Head m | 26.80 |
| Motor output kW | 19,3 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 80 - 100 |
|---|---|
| Discharge Connection | Flange DIN/ANSI DN100 (PN10), Flange DIN/ANSI DN80 (PN10) |
| ATEX available | Yes |
| Type of Fluid | Sewage |
|---|---|
| Temperature | 0-35°C, 0-40°C |
| Max. Solid Handling mm | 80 - 100 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1005 - 3800 |
| Max. Head m | 8.40 - 26.80 |
| Impeller | Vortex impeller |
|---|---|
| Bearings | Shielded ball bearings |
| Mechanical Seal | Inside/outside mechancial seal |
| Impeller | Grey iron casting EN-GJL-250 |
|---|---|
| Casing | Grey iron casting EN-GJL-250 |
| Motor output kW | 1,3 - 19,3 |
|---|---|
| Starting method | direct online , star/delta |
| Type, Poles | Induction motor, 4 poles, IP68 |
| Insulation | Insulation class H |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| r.p.m. | 1450 |
| Motor Protector (built-in) | Miniature protector |
| Rated Current | 3,3 - 36,5 |
| Shaft | Stainless steel EN-X5CrNiMo17-12-2 |
|---|---|
| Cable | H07RN8-F PLUS 7G1,5_x000D_ H07RN-F 5G1,5, H07RN8-F PLUS 7G2,5_x000D_ H07RN-F 5G1,5, H07RN8-F PLUS 10G1,5, H07RN8-F PLUS 12G1,5 |
| Cable Length | 10m |
| Dry Weight Kg | 64.71 - 234.81 |
|---|---|
| Pressure Resistance | max. 20m |
| Model | A | B | B1 | C | C1 | DN1 | DN2 | DN3 | G | H | J1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80UYZM41.3 | 526 | 365 | 220 | 290 | 145 | 80 | 100 | 80 | 395 | 589 | 137 |
| 80UYZM42.6L | 563 | 408 | 250 | 316 | 158 | 80 | 100 | 80 | 395 | 628 | 137 |
| 80UYZM42.6 | 563 | 408 | 250 | 316 | 158 | 80 | 100 | 80 | 395 | 628 | 137 |
| 80UYZM43.7H | 767 | 408 | 250 | 316 | 158 | 80 | 100 | 80 | 395 | 628 | 137 |
| 80UYZM45.0 | 767 | 408 | 250 | 316 | 158 | 80 | 100 | 80 | 395 | 628 | 137 |
| 80UYZM46.5 | 767 | 408 | 250 | 316 | 158 | 80 | 100 | 80 | 395 | 628 | 137 |
| 100UYZM43.2 | 630 | 410 | 250 | 296 | 148 | 100 | 100 | 100 | 395 | 626 | 122 |
| 100UYZM45.0 | 630 | 410 | 250 | 296 | 148 | 100 | 100 | 100 | 395 | 626 | 122 |
| 100UYZM46.5 | 804 | 460 | 280 | 336 | 168 | 100 | 100 | 100 | 395 | 657 | 122 |
| 100UYZM412.2 | 994 | 576 | 345 | 457 | 207 | 100 | 150 | 100 | 450 | 755 | 122 |
| 100UYZMK412.2 | 994 | 576 | 345 | 457 | 207 | 100 | 150 | - | - | - | - |
| 100UYZM414.6 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | 100 | 450 | 749 | 122 |
| 100UYZMK414.6 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | - | - | - | - |
| 100UYZM419.3 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | 100 | 450 | 749 | 122 |
| 100UYZMK419.3 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | - | - | - | - |
| Model | A | B | B1 | C | C1 | D | DN1 | DN2 | E |
|---|---|---|---|---|---|---|---|---|---|
| 80UYZM41.3 | 526 | 365 | 220 | 290 | 145 | 722 | 80 | 100 | 112 |
| 80UYZM42.6L | 563 | 408 | 250 | 316 | 158 | 775 | 80 | 100 | 112 |
| 80UYZM42.6 | 563 | 408 | 250 | 316 | 158 | 775 | 80 | 100 | 112 |
| 80UYZM43.7H | 767 | 408 | 250 | 316 | 158 | 775 | 80 | 100 | 112 |
| 80UYZM45.0 | 767 | 408 | 250 | 316 | 158 | 775 | 80 | 100 | 112 |
| 80UYZM46.5 | 767 | 408 | 250 | 316 | 158 | 775 | 80 | 100 | 112 |
| 100UYZM43.2 | 630 | 410 | 250 | 296 | 148 | 834 | 100 | 100 | 140 |
| 100UYZM45.0 | 804 | 460 | 280 | 336 | 168 | 1029 | 100 | 100 | 175 |
| 100UYZM46.5 | 804 | 460 | 280 | 336 | 168 | 1029 | 100 | 100 | 175 |
| 100UYZM412.2 | 994 | 576 | 345 | 457 | 207 | 1000 | 100 | 150 | 105 |
| 100UYZMK412.2 | - | 576 | 345 | 457 | 207 | - | 100 | 150 | - |
| 100UYZM414.6 | 1098 | 555 | 345 | 410 | 205 | 979 | 100 | 150 | 130 |
| 100UYZMK414.6 | - | 555 | 345 | 410 | 205 | - | 100 | 150 | - |
| 100UYZM419.3 | 1098 | 555 | 345 | 410 | 205 | 979 | 100 | 150 | 130 |
| 100UYZMK419.3 | - | 555 | 345 | 410 | 205 | - | 100 | 150 | - |
The UYZM series is ideal for pumping of domestic, municipal and industrial waste water, faeces and sludge, also with coarse, long-fibre and plait-forming constituents, as well as pumped media containing gas. The non clogging vortex impeller with a big free passage allows for maximum operational safety. Oil chamber sensors constantly monitor the state of the pump and will alert in case of malfunction.
