U

U | 3-phase / 50Hz
Request an Offer

Three phase submersible sewage pumps, constructed in cast-iron with 2-pole motors. Designed for clog free pumping of solid and fibrous materials.

Technical Data
  • ø Discharge bore mm: 40mm,50mm,80mm
  • Type of Fluid: Sewage
  • Max. Solid Handling mm: 35 - 56
  • Max. PH Value: 5-9
  • Max. Capacity l/min: 264 - 1030
  • Max. Head m: 7.4 - 23.50
  • Motor output kW: 0,25 - 3,7
  • Phase / Voltage: 1-phase / 230V / 50Hz,3-phase / 400V / 50Hz

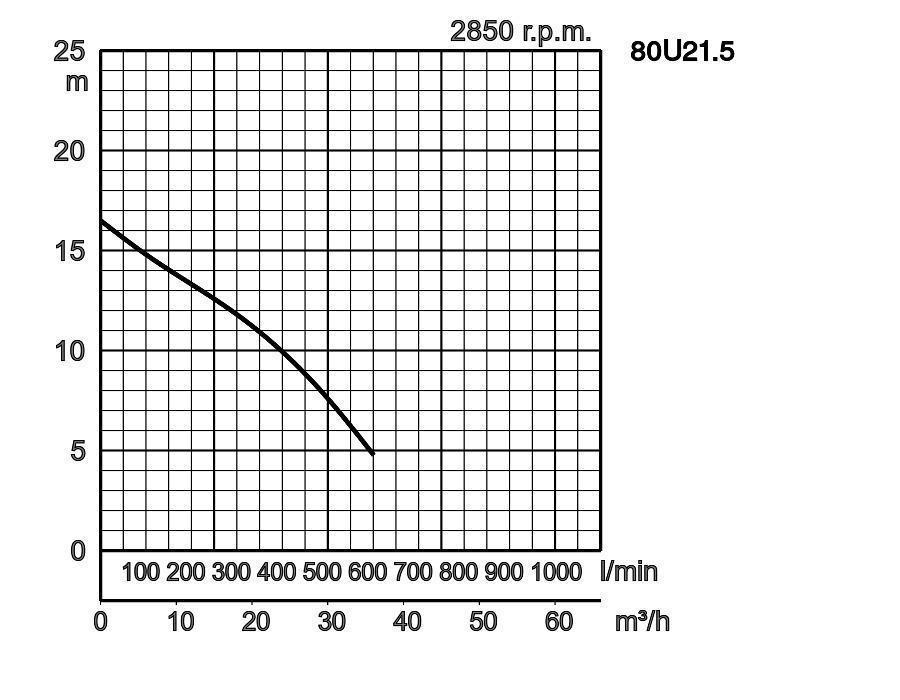

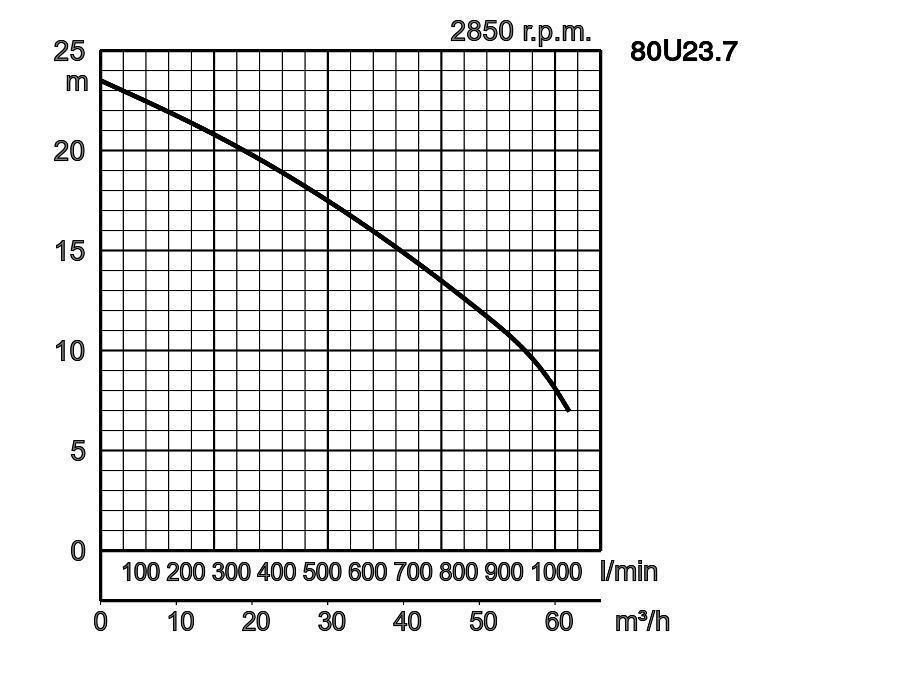

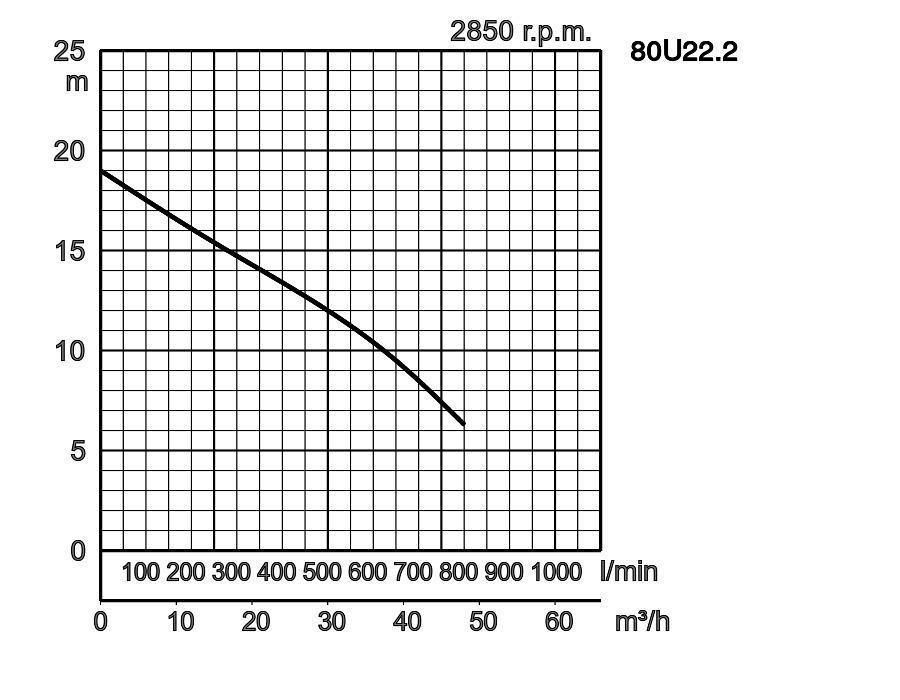

Performance curve
1 O
Specifications
Model Colour code curve ø Discharge bore mm Type of Fluid Max. Solid Handling mm Max. PH Value Max. Capacity l/min Max. Head m Motor output kW Phase / Voltage
free standing with guide rail fitting
80U21.5 -
1
80mm Sewage 46 5-9 600 16.50 1,5 3-phase / 400V / 50Hz
80U22.2 -
2
80mm Sewage 56 5-9 800 19 2,2 3-phase / 400V / 50Hz
80U23.7 TOS80U23.7
3
80mm Sewage 56 5-9 1030 23.50 3,7 3-phase / 400V / 50Hz
ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 46
Max. PH Value 5-9
Max. Capacity l/min 600
Max. Head m 16.50
Motor output kW 1,5
Phase / Voltage 3-phase / 400V / 50Hz
ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 56
Max. PH Value 5-9
Max. Capacity l/min 800
Max. Head m 19
Motor output kW 2,2
Phase / Voltage 3-phase / 400V / 50Hz
ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 56
Max. PH Value 5-9
Max. Capacity l/min 1030
Max. Head m 23.50
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz
General
ø Discharge bore mm 80mm
Discharge Connection Inside thread, JIS10K flange
Pumping Fluid
Type of Fluid Sewage
Temperature 0-40°C
Max. Solid Handling mm 46 - 56
Max. PH Value 5-9
Max. Capacity l/min 600 - 1030
Max. Head m 16.50 - 23.50
Pump
Components
Impeller Vortex impeller
Bearings Shielded ball bearings
Mechanical Seal Dual mechancial seal in oil bath
Material
Impeller Grey iron casting EN-GJL-200
Casing Grey iron casting EN-GJL-200
Pump Body Grey iron casting EN-GJL-150
Mechanical Seal Silicon Carbide
Motor
Motor output kW 1,5 - 3,7
Starting method direct online
Suitable for VFD Yes
Suitable for Soft Starter Yes
Type, Poles Induction motor, 2 poles, IP68
Insulation Insulation class F
Phase / Voltage 3-phase / 400V / 50Hz
r.p.m. 2894 - 2912
Motor Protector (built-in) Circle thermal cut-out
Rated Current 3.60 - 8
Material
Frame Grey iron casting EN-GJL-150
Shaft Stainless steel EN-X30Cr13
Cable NSSHÖU 4C*1.5mm²
Cable Length 10m
Others
Dry Weight Kg 40 - 62
Pressure Resistance max. 30m
Dimensions - in mm
W1: lowest running water level
  • 40U2.25
  • 40U2.25S
  • 50U2.4
  • 50U2.4S
  • 50U2.75
  • 80U2.75
  • 80U21.5
  • 80U22.2
  • 80U23.7
W1: lowest running water level
  • 40UA2.25
  • 40UA2.25S
  • 50UA2.4
  • 50UA2.4S
ModelAA4BDHW1W2
80U21.5420366173200501135430
80U22.2502410225240562160490
80U23.7502410226234565160520
Dimensions - in mm
  • 40U2.25
  • 40U2.25S
  • 40UA2.25
  • 40UA2.25S
  • 50U2.4
  • 50U2.4S
  • 50U2.75
  • 50UA2.4
  • 50UA2.4S
W1: lowest running water level
  • 80U2.75
  • 80U21.5
  • 80U22.2
  • 80U23.7
W1: lowest running water level
ModelAA5DHH1W1W2
80U21.5389130200603-240530
80U22.2418130240647-245575
80U23.7418130234650895245610

The U-series is a 2-pole-motor-based, compact type submersible vortex pump designed for handling raw sewage, wastewater and liquid carrying solid matters and fibrous materials. Rotation of the impeller produces vortex flow in the pump casing, which allows those foreign matters to be pumped out with minimum contact to the impeller. Since this mechanism does not require the foreign matters to pass through the impeller vane, the pump offers practically unchokable pumping.
