With a light fibre-reinforced plastic casing and head cover, the pump is abrasion and corrosion resistant, minimizing maintenance.

Technical Data

  • ø Discharge bore mm: 32mm
  • Type of Fluid: Sewage
  • Max. Solid Handling mm: 10
  • Max. PH Value: 4-10
  • Max. Capacity l/min: 185
  • Max. Head m: 7.50
  • Motor output kW: 0,15
  • Phase / Voltage: 1-phase / 230V / 110V / 50Hz
Performance curve
1 O
Specifications

Model Colour code curve ø Discharge bore mm Type of Fluid Max. Solid Handling mm Max. PH Value Max. Capacity l/min Max. Head m Motor output kW Phase / Voltage
OM
1
32mm Sewage 10 4-10 185 7.50 0,15 1-phase / 230V / 110V / 50Hz
OMA   32mm Sewage 10 4-10 185 7.50 0,15 1-phase / 230V / 110V / 50Hz

ø Discharge bore mm 32mm
Type of Fluid Sewage
Max. Solid Handling mm 10
Max. PH Value 4-10
Max. Capacity l/min 185
Max. Head m 7.50
Motor output kW 0,15
Phase / Voltage 1-phase / 230V / 110V / 50Hz

ø Discharge bore mm 32mm
Type of Fluid Sewage
Max. Solid Handling mm 10
Max. PH Value 4-10
Max. Capacity l/min 185
Max. Head m 7.50
Motor output kW 0,15
Phase / Voltage 1-phase / 230V / 110V / 50Hz
General
ø Discharge bore mm 32mm
Discharge Connection Inside thread, flange
Pumping Fluid
Type of Fluid Sewage
Temperature 0-40°C
Max. Solid Handling mm 10
Max. PH Value 4-10
Max. Capacity l/min 185
Max. Head m 7.50
Pump
Components
Impeller Vortex impeller
Bearings Shielded ball bearings
Mechanical Seal Dual mechancial seal in oil bath
Material
Impeller Glass fibre reinforced plastic
Casing Glass fibre reinforced plastic
Pump Body Stainless steel EN-X5CrNi18-10
Mechanical Seal Silicon Carbide
Motor
Motor output kW 0,15
Starting method condensor
Type, Poles Induction motor, 2 poles, IP68
Insulation Insulation class E
Phase / Voltage 1-phase / 230V / 110V / 50Hz
r.p.m. 2852
Motor Protector (built-in) Miniature protector
Rated Current 1.65
Material
Frame Stainless steel EN-X5CrNi18-10
Shaft Stainless steel EN-X5CrNiMo17-12-2
Cable H07RN8-F 3C*1.0mm²
Cable Length 10m
Others
Dry Weight Kg 5.10 - 5.30
Pressure Resistance max. 20m
Dimensions in mm:
W1: lowest running water level
  • OMA
W1: lowest running water level
  • OM

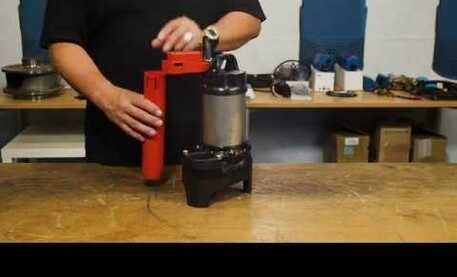

The OM-series is a submersible semi-vortex pump designed for handling household wastewater and liquid carrying small solid matters. The semi-vortex pump design with moderate solids passage provides efficient performance for versatile applications. Liquid paraffin is used for the lubricating oil, which widens the application of the pump to decorative waterfalls, fishponds, aquaculture, etc.
