Smasher pumps with enhanced solid handling capabilities, designed for pumping sewage containing various types of solids and fibrous materials. Atex version available.
| Model | Colour code curve | ø Discharge bore mm | Type of Fluid | Max. Solid Handling mm | Max. PH Value | Max. Capacity l/min | Max. Head m | Motor output kW | Phase / Voltage | |
|---|---|---|---|---|---|---|---|---|---|---|
| free standing | with guide rail fitting | |||||||||

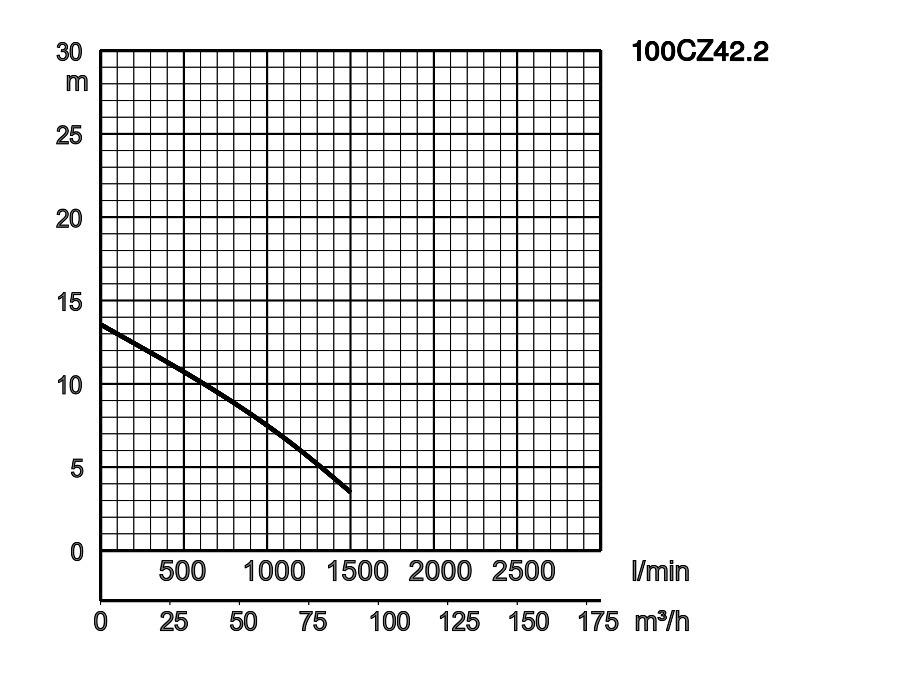

| 100CZ42.2 | TOS100CZ42.2 |
1
|
100mm | Sewage | 30 | 5-9 | 1500 | 13.50 | 2,2 | 3-phase / 400V / 50Hz |
| 100CZ43.7 | TOS100CZ43.7 |
2
|
100mm | Sewage | 30 | 5-9 | 1800 | 18 | 3,7 | 3-phase / 400V / 50Hz |

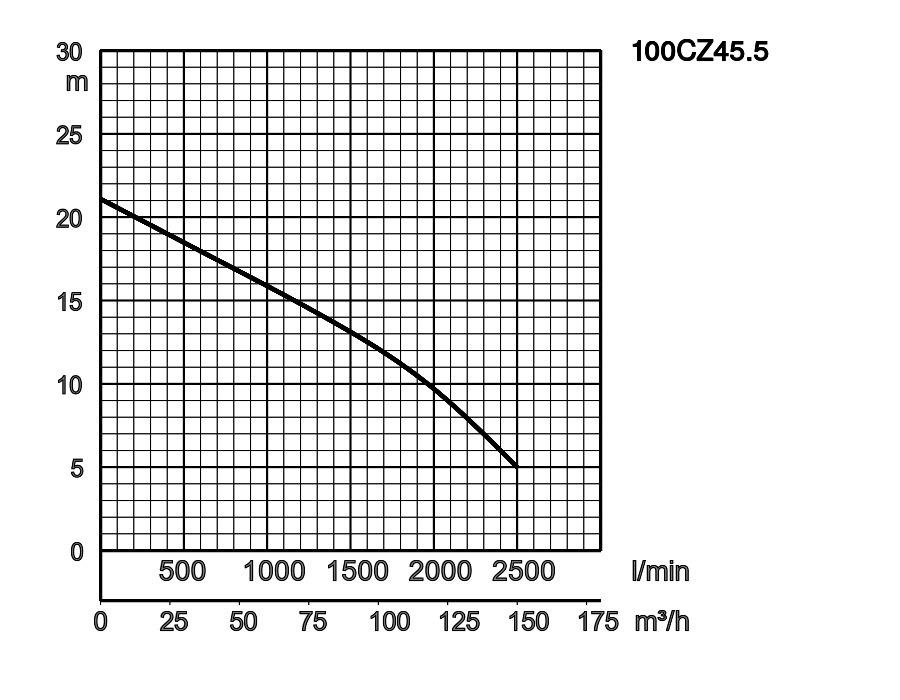

| 100CZ45.5 | TOS100CZ45.5 |
3
|
100mm | Sewage | 35 | 5-9 | 2500 | 21 | 5,5 | 3-phase / 400V / 50Hz |
| 100CZ47.5 | TOS100CZ47.5 |
4
|
100mm | Sewage | 35 | 5-9 | 2800 | 24 | 7,5 | 3-phase / 400V / 50Hz |

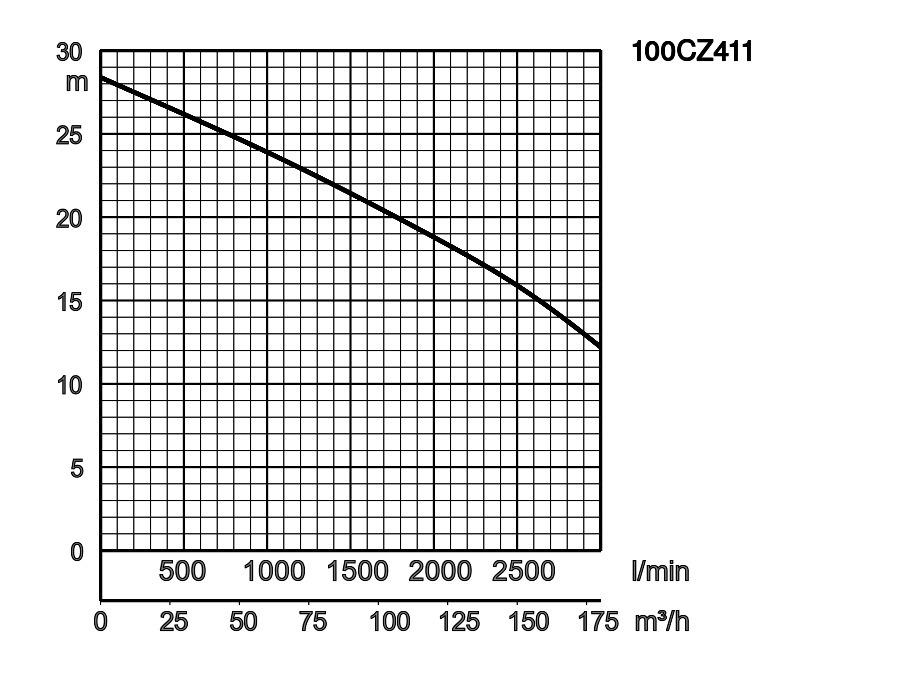

| 100CZ411 | TOS100CZ411 |
5
|
100mm | Sewage | 41 | 5-9 | 3500 | 28,5 | 11 | 3-phase / 400V / 50Hz |

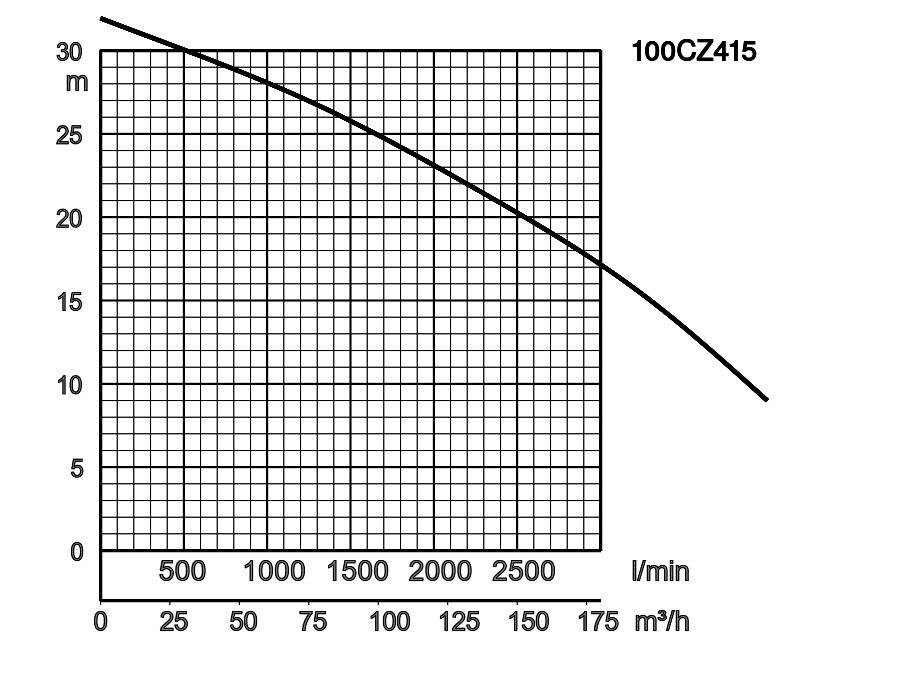

| 100CZ415 | TOS100CZ415 |
6
|
100mm | Sewage | 41 | 5-9 | 4000 | 32 | 15 | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 30 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1500 |
| Max. Head m | 13.50 |
| Motor output kW | 2,2 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 30 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1800 |
| Max. Head m | 18 |
| Motor output kW | 3,7 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 35 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2500 |
| Max. Head m | 21 |
| Motor output kW | 5,5 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 35 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 2800 |
| Max. Head m | 24 |
| Motor output kW | 7,5 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 41 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 3500 |
| Max. Head m | 28,5 |
| Motor output kW | 11 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
| Type of Fluid | Sewage |
| Max. Solid Handling mm | 41 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 4000 |
| Max. Head m | 32 |
| Motor output kW | 15 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| ø Discharge bore mm | 100mm |
|---|---|
| Discharge Connection | Inside thread, JIS10K flange |
| Type of Fluid | Sewage |
|---|---|
| Temperature | 0-40°C |
| Max. Solid Handling mm | 30 - 41 |
| Max. PH Value | 5-9 |
| Max. Capacity l/min | 1500 - 4000 |
| Max. Head m | 13.50 - 32 |
| Impeller | Scissor Smasher |
|---|---|
| Bearings | Shielded ball bearings |
| Mechanical Seal | Dual mechancial seal in oil bath |
| Impeller | Ductile iron casting EN-GJS500 |
|---|---|
| Casing | Grey iron casting EN-GJL-250 |
| Suction Plate | Ductile iron casting EN-GJS-500-7 |
| Pump Body | Grey iron casting EN-GJL-200 |
| Mechanical Seal | Silicon Carbide |
| Motor output kW | 2,2 - 15 |
|---|---|
| Starting method | direct online , star/delta |
| Type, Poles | Induction motor, 4 poles, IP68 |
| Insulation | Insulation class F |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| r.p.m. | 1411 - 1461 |
| Motor Protector (built-in) | Circle thermal cut-out, Miniature protector |
| Rated Current | 4.80 - 30.90 |
| Frame | Grey iron casting EN-GJL-200 |
|---|---|
| Shaft | Stainless steel EN-X30Cr13 |
| Cable | NSSHÖU 4C*2.5mm² / NSSHÖU 3C*2.5mm² / 2PNCT 2C*1.25mm², NSSHÖU 4C*1.5mm², NSSHÖU 4C*2.5mm² |
| Cable Length | 10m |
| Dry Weight Kg | 81 - 247 |
|---|---|
| Pressure Resistance | max. 30m, max. 40m, max. 50m |
| Model | A | A4 | B | D | H | W1 | W2 |
|---|---|---|---|---|---|---|---|
| 100CZ42.2 | 629 | 524 | 342 | 341 | 658 | 245 | 620 |
| 100CZ43.7 | 629 | 524 | 342 | 341 | 708 | 245 | 670 |
| 100CZ45.5 | 685 | 580 | 372 | 410 | 930 | 320 | 805 |
| 100CZ47.5 | 685 | 580 | 372 | 410 | 911 | 320 | 790 |
| 100CZ411 | 722 | 617 | 380 | 438 | 1000 | 350 | 875 |
| 100CZ415 | 722 | 617 | 380 | 438 | 1070 | 350 | 945 |
The CZ-series is a smasher pump equipped with an innovative scissor-like mechanism that provides enhanced solid handling capabilities. A unique design of a heart-shaped suction cover equipped with a sharp-edged stationary blade along with an improved semi-open channel impeller and two sharp-edged vanes. It prevents pump clogging through crushing and cutting of solid objects.
In addition to that, the extended rotating guide equipped on the impeller prevents retention of solid waste at the central part of the impeller, thereby providing a smooth pumping operation.
