Saw-shaped fixed blades are used in combination with carbide blades in an impeller-integrated structure. This construction ensures that fibrous foreign matter is cut up and sewage is transferred without clogging.

Technical Data

  • ø Discharge bore mm: 100mm,50mm,80mm
  • Type of Fluid: Sewage
  • Max. Solid Handling mm: 22 x 31,26 x 25,26 x 26,29 x 23,31 x 27,43 x 60,67 x 56,70 x 81,76 x 69,82 x 68,82 x 75
  • Max. PH Value: 5-9
  • Max. Capacity l/min: 335 - 2750
  • Max. Head m: 11.50 - 47
  • Motor output kW: 0,75 - 11
  • Phase / Voltage: 1-phase / 230V / 50Hz,3-phase / 400V / 50Hz

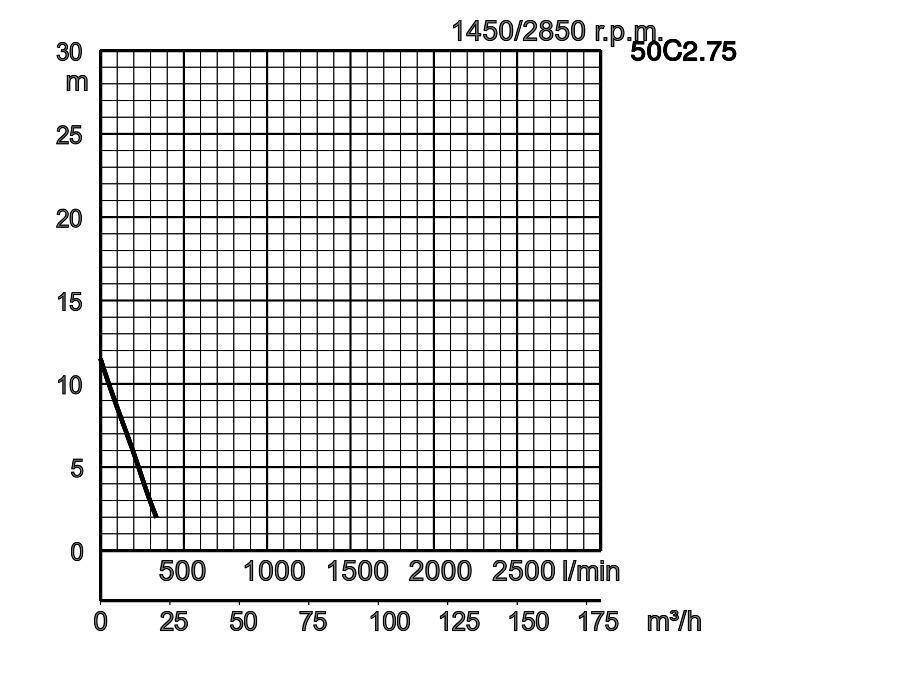

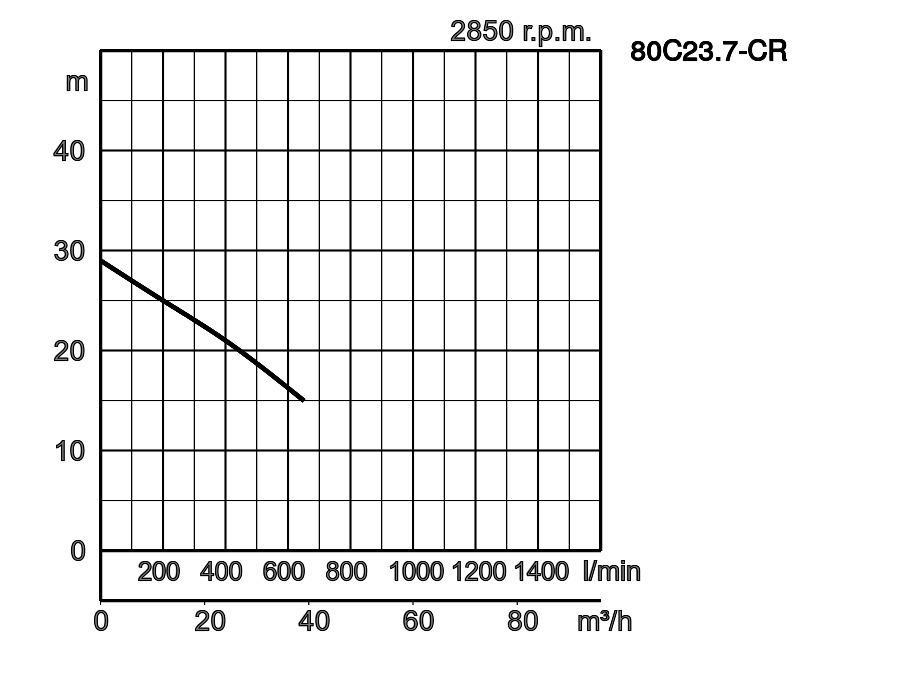

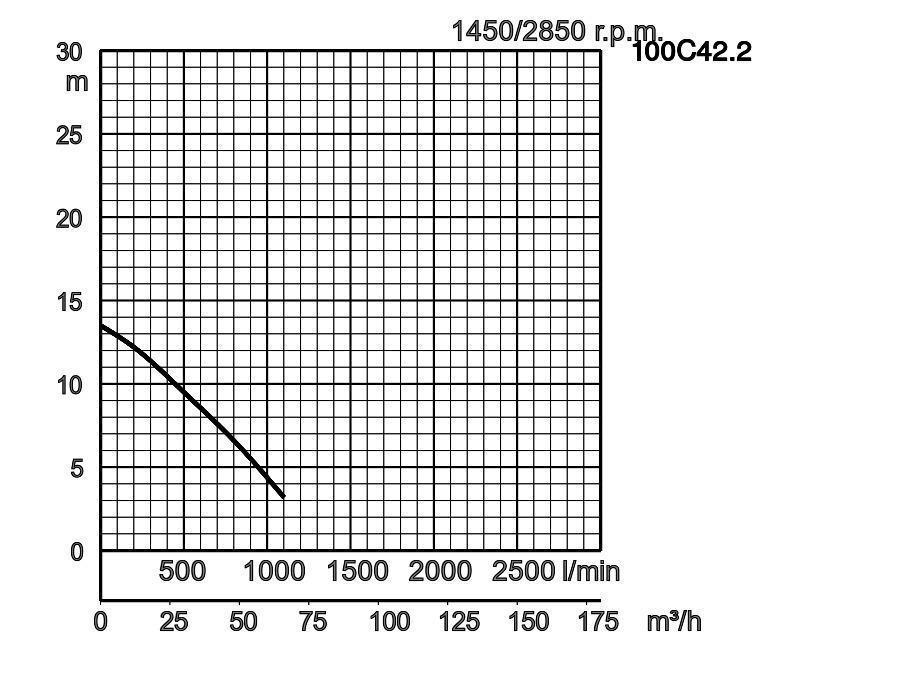

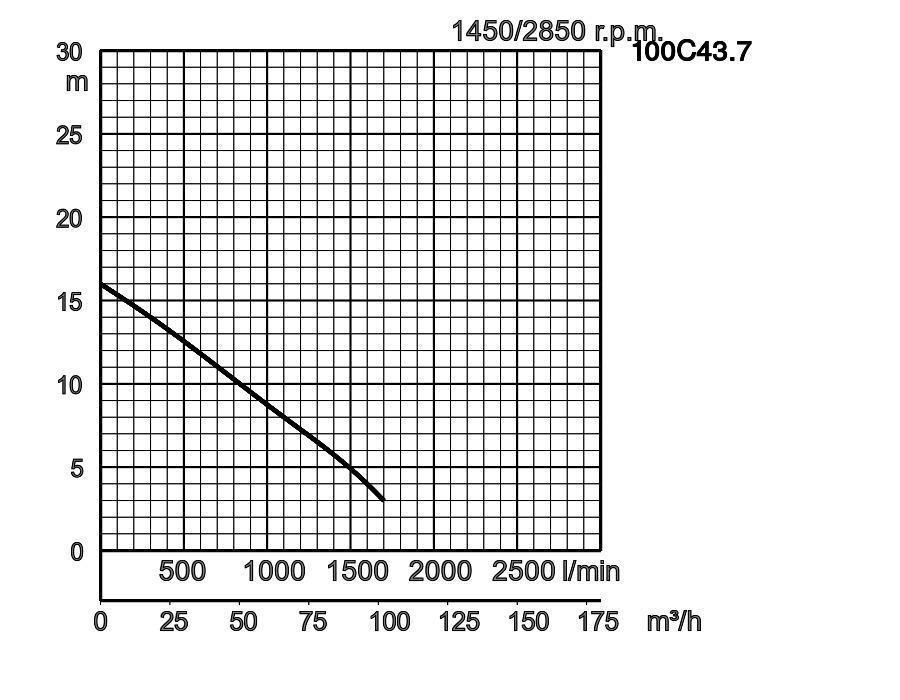

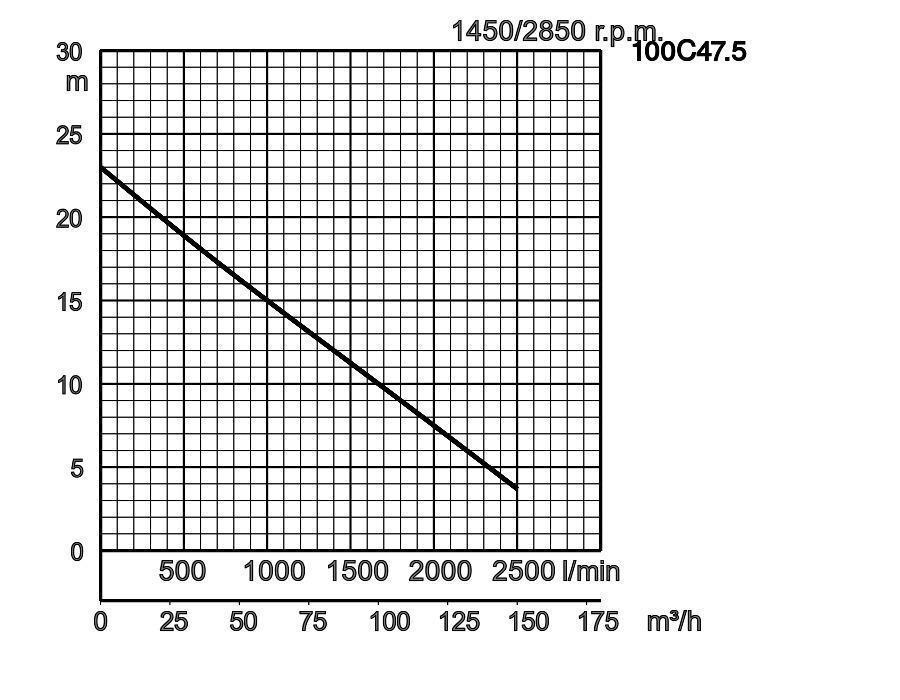

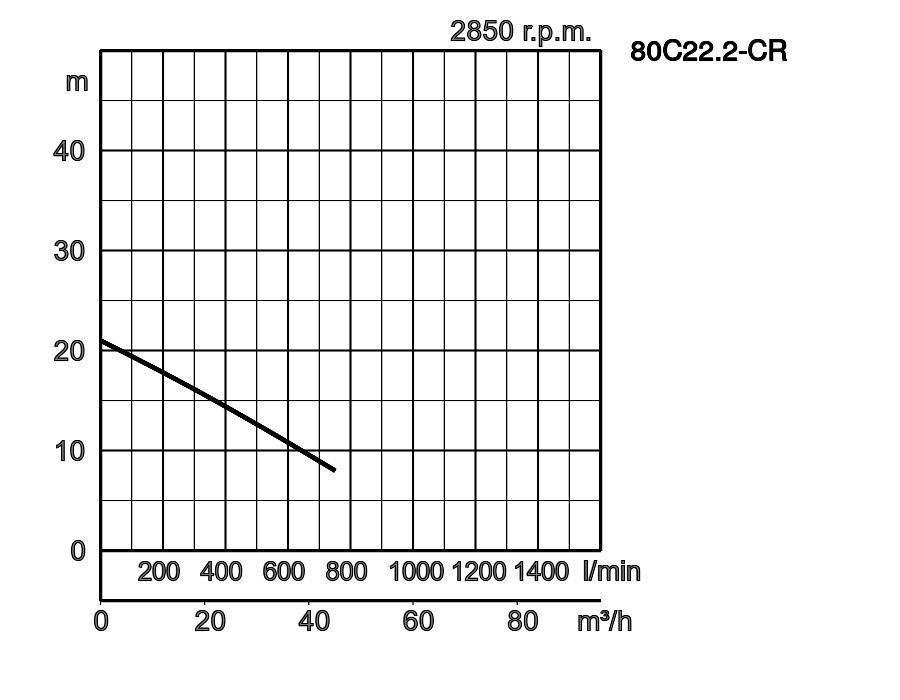

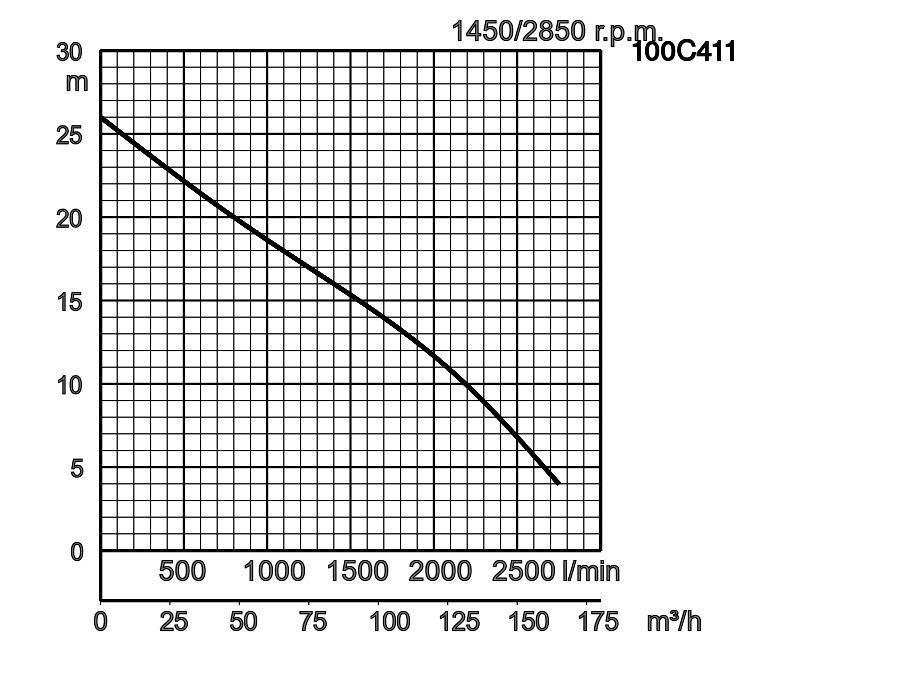

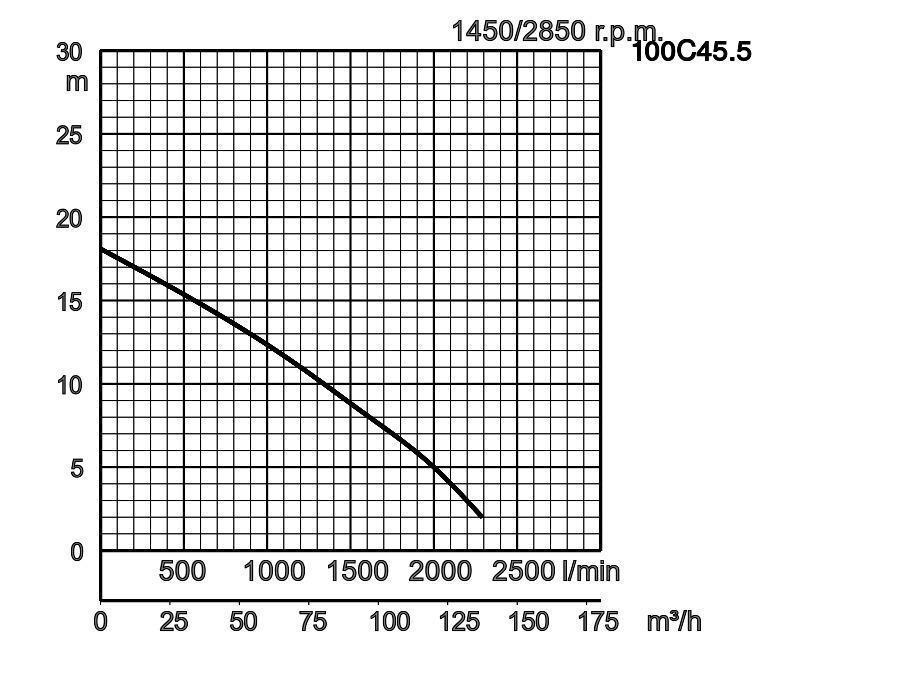

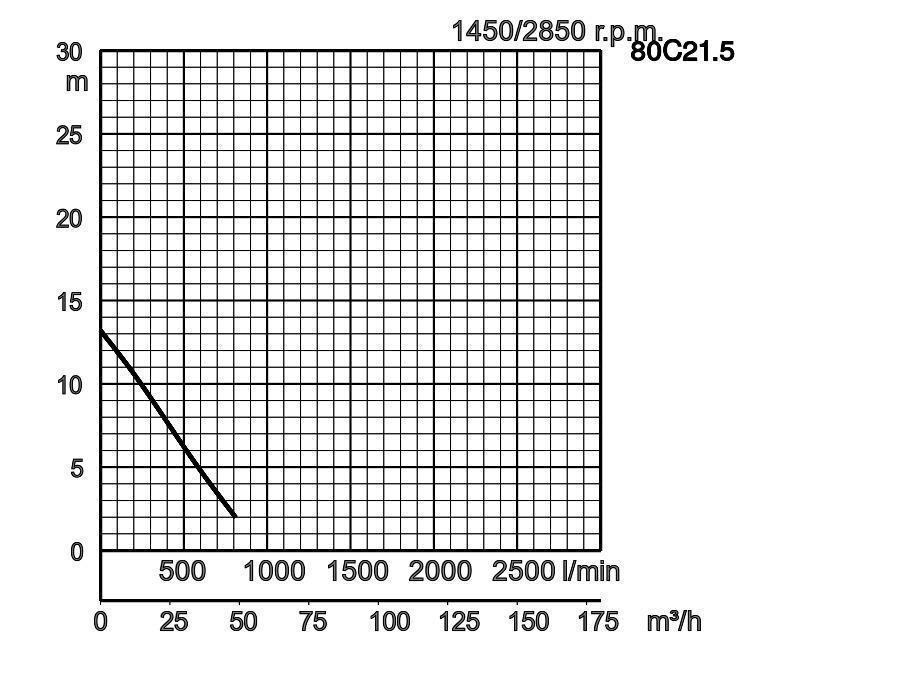

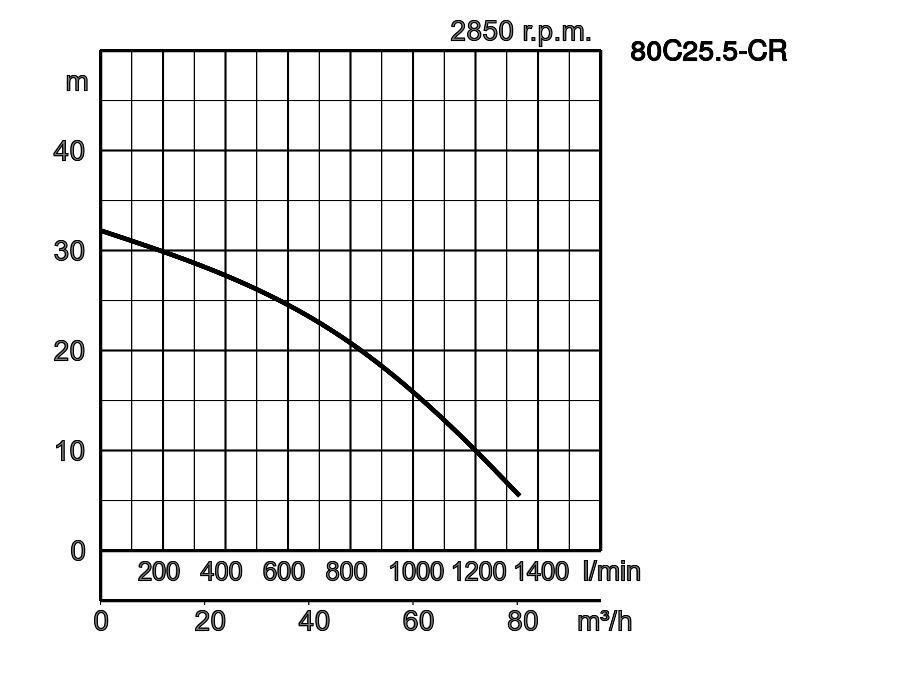

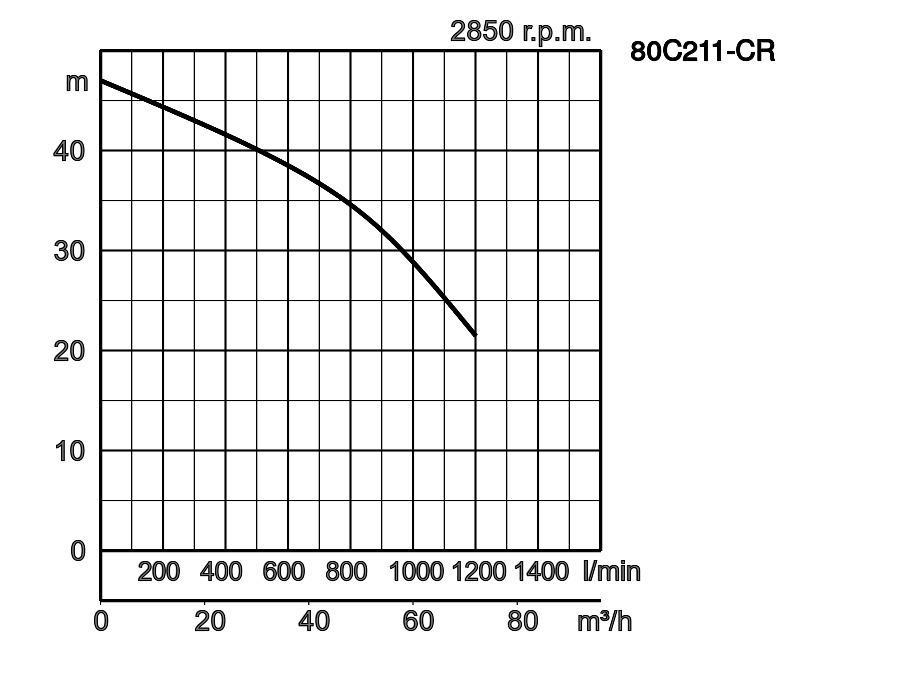

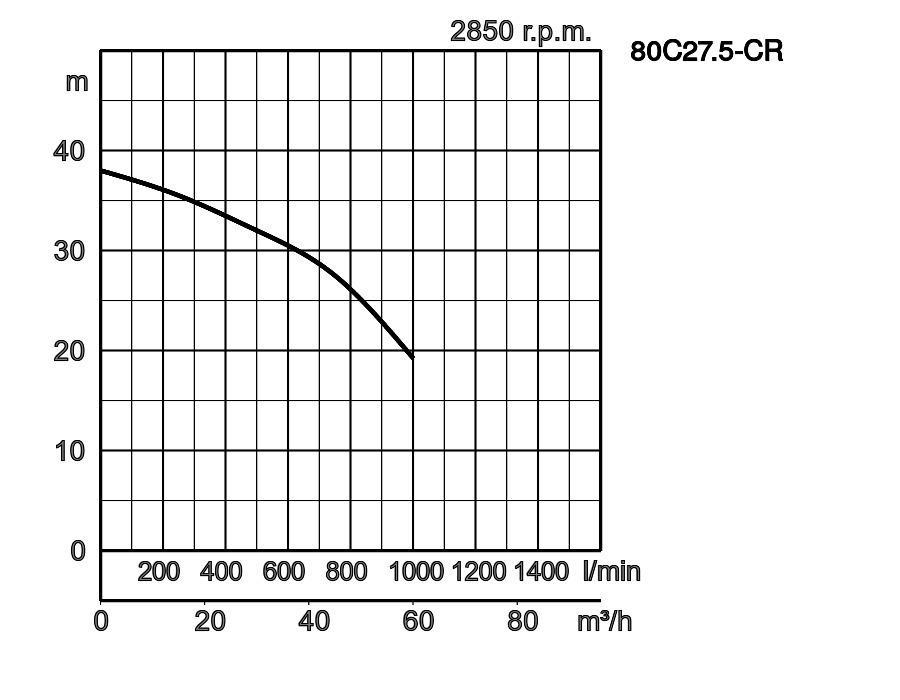

Performance curve
1 O
2 O
Specifications

Model Colour code curve ø Discharge bore mm Type of Fluid Max. Solid Handling mm Max. PH Value Max. Capacity l/min Max. Head m Motor output kW Phase / Voltage
free standing with guide rail fitting
50C2.75 TOS50C2.75
1
50mm Sewage 31 x 27 5-9 335 11.50 0,75 3-phase / 400V / 50Hz
50C2.75S TOS50C2.75   50mm Sewage 31 x 27 5-9 335 11.50 0,75 1-phase / 230V / 50Hz
80C21.5 TOS80C21.5
2
80mm Sewage 43 x 60 5-9 810 13.20 1,5 3-phase / 400V / 50Hz
100C42.2 TOS100C42.2
3
100mm Sewage 67 x 56 5-9 1100 13.50 2,2 3-phase / 400V / 50Hz
100C43.7 TOS100C43.7
4
100mm Sewage 70 x 81 5-9 1700 16 3,7 3-phase / 400V / 50Hz
100C45.5 TOS100C45.5
5
100mm Sewage 82 x 68 5-9 2290 18.10 5,5 3-phase / 400V / 50Hz
100C47.5 TOS100C47.5
6
100mm Sewage 76 x 69 5-9 2500 23 7,5 3-phase / 400V / 50Hz
100C411 TOS100C411
7
100mm Sewage 82 x 75 5-9 2750 25.80 11 3-phase / 400V / 50Hz
80C22.2-CR TOS80C22.2-CR
8
80mm Sewage 22 x 31 5-9 750 21 2,2 3-phase / 400V / 50Hz
80C23.7-CR TOS80C23.7-CR
9
80mm Sewage 22 x 31 5-9 650 29 3,7 3-phase / 400V / 50Hz
80C25.5-CR TOS80C25.5-CR
10
80mm Sewage 29 x 23 5-9 1340 32 5,5 3-phase / 400V / 50Hz
80C27.5-CR TOS80C27.5-CR
11
80mm Sewage 26 x 25 5-9 1000 38 7,5 3-phase / 400V / 50Hz
80C211-CR TOS80C211-CR
12
80mm Sewage 26 x 26 5-9 1200 47 11 3-phase / 400V / 50Hz

ø Discharge bore mm 50mm
Type of Fluid Sewage
Max. Solid Handling mm 31 x 27
Max. PH Value 5-9
Max. Capacity l/min 335
Max. Head m 11.50
Motor output kW 0,75
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 50mm
Type of Fluid Sewage
Max. Solid Handling mm 31 x 27
Max. PH Value 5-9
Max. Capacity l/min 335
Max. Head m 11.50
Motor output kW 0,75
Phase / Voltage 1-phase / 230V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 43 x 60
Max. PH Value 5-9
Max. Capacity l/min 810
Max. Head m 13.20
Motor output kW 1,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100mm
Type of Fluid Sewage
Max. Solid Handling mm 67 x 56
Max. PH Value 5-9
Max. Capacity l/min 1100
Max. Head m 13.50
Motor output kW 2,2
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100mm
Type of Fluid Sewage
Max. Solid Handling mm 70 x 81
Max. PH Value 5-9
Max. Capacity l/min 1700
Max. Head m 16
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100mm
Type of Fluid Sewage
Max. Solid Handling mm 82 x 68
Max. PH Value 5-9
Max. Capacity l/min 2290
Max. Head m 18.10
Motor output kW 5,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100mm
Type of Fluid Sewage
Max. Solid Handling mm 76 x 69
Max. PH Value 5-9
Max. Capacity l/min 2500
Max. Head m 23
Motor output kW 7,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100mm
Type of Fluid Sewage
Max. Solid Handling mm 82 x 75
Max. PH Value 5-9
Max. Capacity l/min 2750
Max. Head m 25.80
Motor output kW 11
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 22 x 31
Max. PH Value 5-9
Max. Capacity l/min 750
Max. Head m 21
Motor output kW 2,2
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 22 x 31
Max. PH Value 5-9
Max. Capacity l/min 650
Max. Head m 29
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 29 x 23
Max. PH Value 5-9
Max. Capacity l/min 1340
Max. Head m 32
Motor output kW 5,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 26 x 25
Max. PH Value 5-9
Max. Capacity l/min 1000
Max. Head m 38
Motor output kW 7,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80mm
Type of Fluid Sewage
Max. Solid Handling mm 26 x 26
Max. PH Value 5-9
Max. Capacity l/min 1200
Max. Head m 47
Motor output kW 11
Phase / Voltage 3-phase / 400V / 50Hz
General
ø Discharge bore mm 100mm, 50mm, 80mm
Discharge Connection Inside thread, JIS10K flange
Pumping Fluid
Type of Fluid Sewage
Temperature 0-40°C
Max. Solid Handling mm 22 x 31, 26 x 25, 26 x 26, 29 x 23, 31 x 27, 43 x 60, 67 x 56, 70 x 81, 76 x 69, 82 x 68, 82 x 75
Max. PH Value 5-9
Max. Capacity l/min 335 - 2750
Max. Head m 11.50 - 47
Pump
Components
Impeller Non-clog impeller with cutter mechanism
Bearings Shielded ball bearings
Mechanical Seal Dual mechancial seal in oil bath
Material
Impeller Grey iron casting EN-GJL-200 with sintered tungsten carbide alloy tip, Chromium iron casting with sintered tungsten carbide alloy tip
Casing Grey iron casting EN-GJL-200
Suction Plate Ductile iron casting EN-GJS-700-2, Chromium iron casting
Pump Body Grey iron casting EN-GJL-150, Grey iron casting EN-GJL-200
Mechanical Seal Silicon Carbide
Motor
Motor output kW 0,75 - 11
Starting method condensor, direct online , star/delta
Type, Poles Induction motor, 2 poles, IP68, Induction motor, 4 poles, IP68
Insulation Insulation class E, Insulation class F
Phase / Voltage 1-phase / 230V / 50Hz, 3-phase / 400V / 50Hz
r.p.m. 1410 - 2945
Motor Protector (built-in) Circle thermal cut-out
Rated Current 1.90 - 23.40
Material
Frame Grey iron casting EN-GJL-150, Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X6Cr13, Stainless steel EN-X30Cr13
Cable H07RN8-F 3C*1.0mm², NSSHÖU 4C*2.5mm² / NSSHÖU 3C*2.5mm² / 2PNCT 2C*1.25mm², NSSHÖU 4C*1.5mm², NSSHÖU 4C*2.5mm²
Cable Length 10m
Others
Dry Weight Kg 24 - 179
Pressure Resistance max. 30m, max. 40m
Dimensions in mm:
W1: lowest running water level
  • 50C2.75
  • 80C21.5
  • 100C42.2
  • 100C43.7
  • 100C45.5
  • 100C47.5
  • 100C411
  • 80C22.2-CR
  • 80C23.7-CR
  • 80C25.5-CR
  • 80C27.5-CR
  • 80C211-CR
  • 50C2.75S
ModelAA4BDHW1W2
50C2.75405351196250415145385
50C2.75S405351196250523145500
80C21.5446392234250536190465
100C42.2594489328324616225570
100C43.7602497333331680235635
100C45.5687582372400824335700
100C47.5687582372400814335720
100C4117106053724311000300840
80C22.2-CR519427289260611180565
80C23.7-CR519427291260613180565
80C25.5-CR615522320345879225745
80C27.5-CR615522320345879225745
80C211-CR615522320345927225770
Dimensions - guide rail fitting type in mm:
  • 50C2.75
  • 80C21.5
  • 100C42.2
  • 100C43.7
  • 100C45.5
  • 100C47.5
  • 100C411
  • 80C22.2-CR
  • 80C23.7-CR
  • 80C25.5-CR
  • 80C27.5-CR
  • 80C211-CR
  • 50C2.75S
W1: lowest running water level
ModelAA5DHH1W1W2
50C2.75368175250459650190430
50C2.75S368175250567695190545
80C21.5410165250586-240515
100C42.2484165324631790240585
100C43.7490165339690860245645
100C45.56191813848221160305690
100C47.56191813848121155305710
100C4116421814319341265300805
80C22.2-CR435165260640860205595
80C23.7-CR435165260640860205595
80C25.5-CR5301653208771200220745
80C27.5-CR5301653208771200220745
80C211-CR1655303209251250220765

The C-series is a submersible cutter pump for sewage and wastewater, which is made of casting and equipped with cutting mechanism. Featuring a combination of impeller vane with brazed sintered tungsten carbide alloy edge and a suction cover of serrated shape, the C-series pumps enable smooth pumping, while cutting solid and fibrous matter during suction. The impeller and suction cover of the "CR" type are made of high-chromium cast iron, ensuring excellent durability and enabling the pump to maintain high performance for an extended period.
