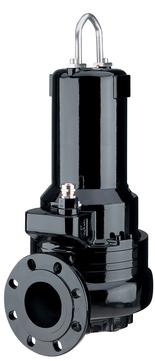

BYM | 3-phase / 50Hz

Channel impeller sewage pumps designed for handling high capacities of raw sewage constructed with 4 pole and 6 pole motors up to 160kW. Certain models available in ATEX and for dry installations upon request.

Technical Data

  • Discharge bore mm: 200,100,300,150
  • Head max. m: 7,0 - 40,1
  • Capacity max. l/min: 1387 - 32508
  • Motor output kW: 1,3 - 160
  • Phases: 3
  • Max. solid handling ø mm: 80 - 150

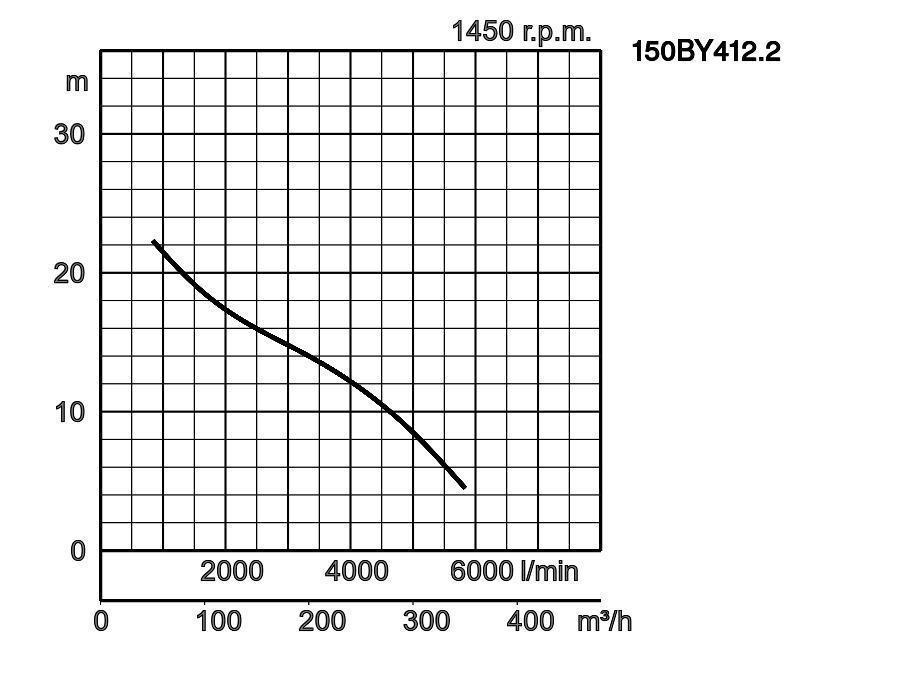

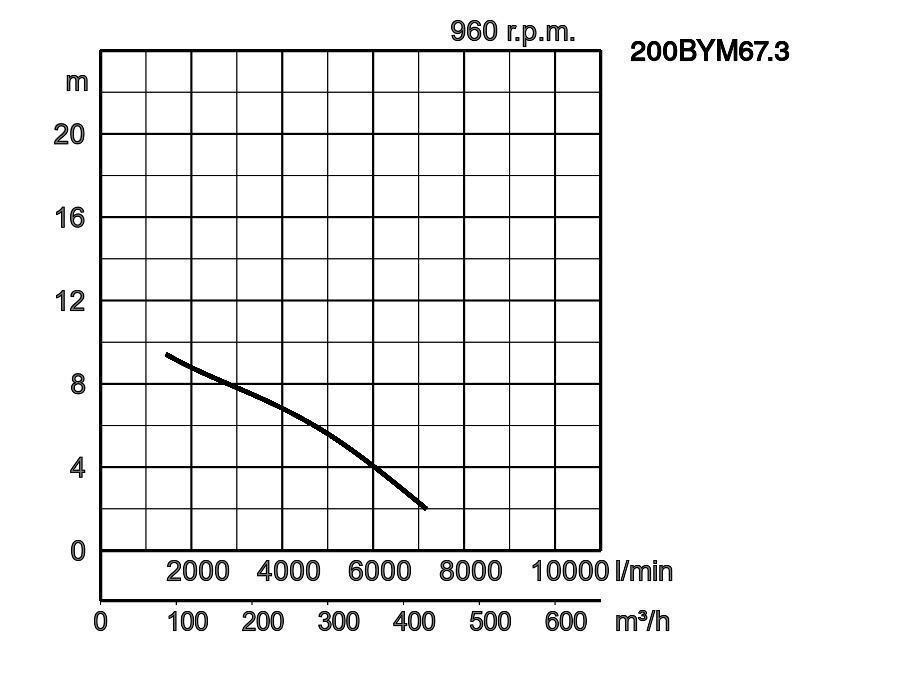

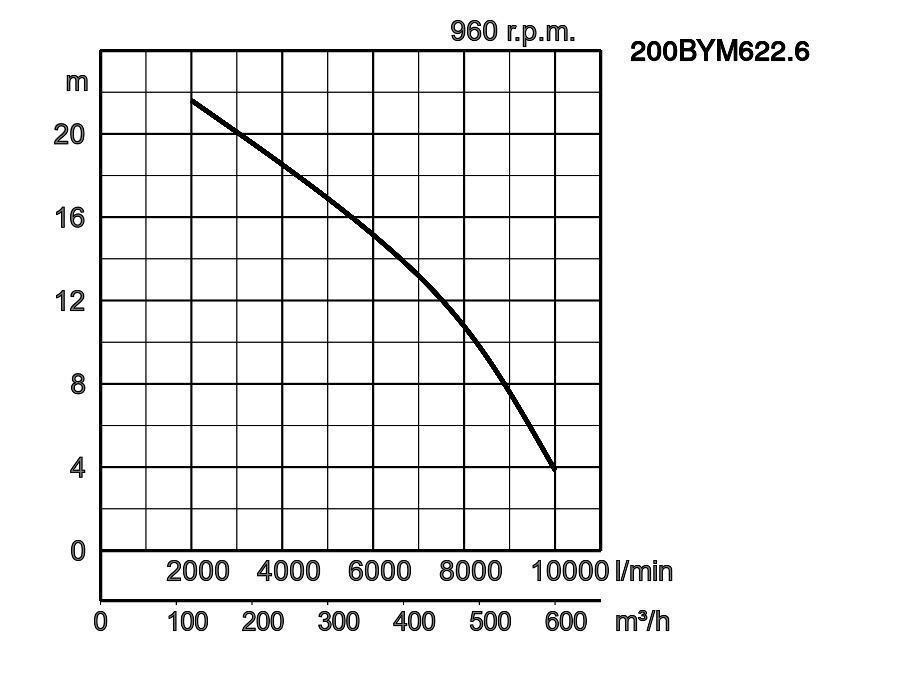

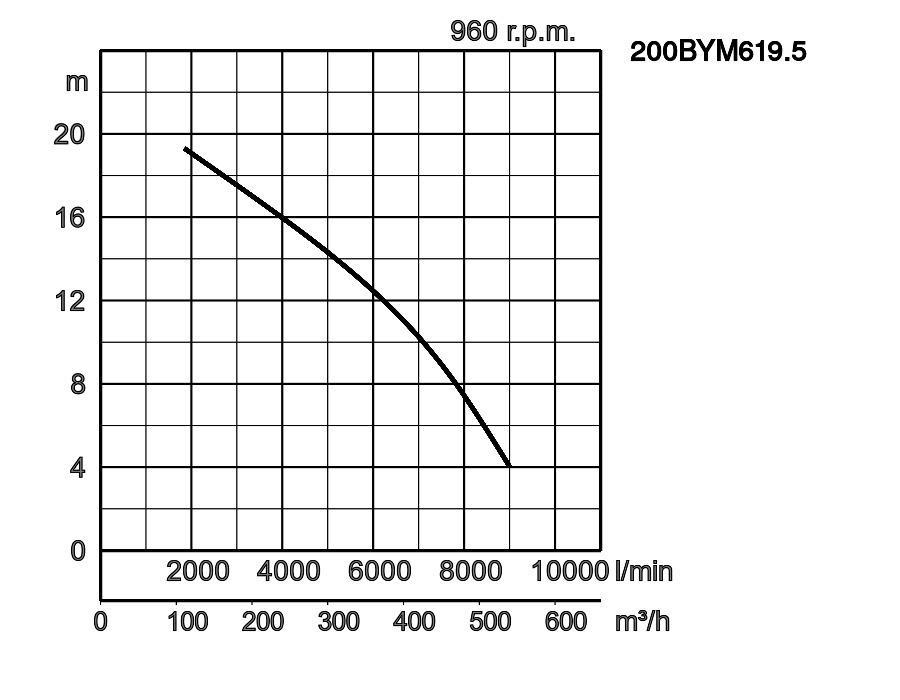

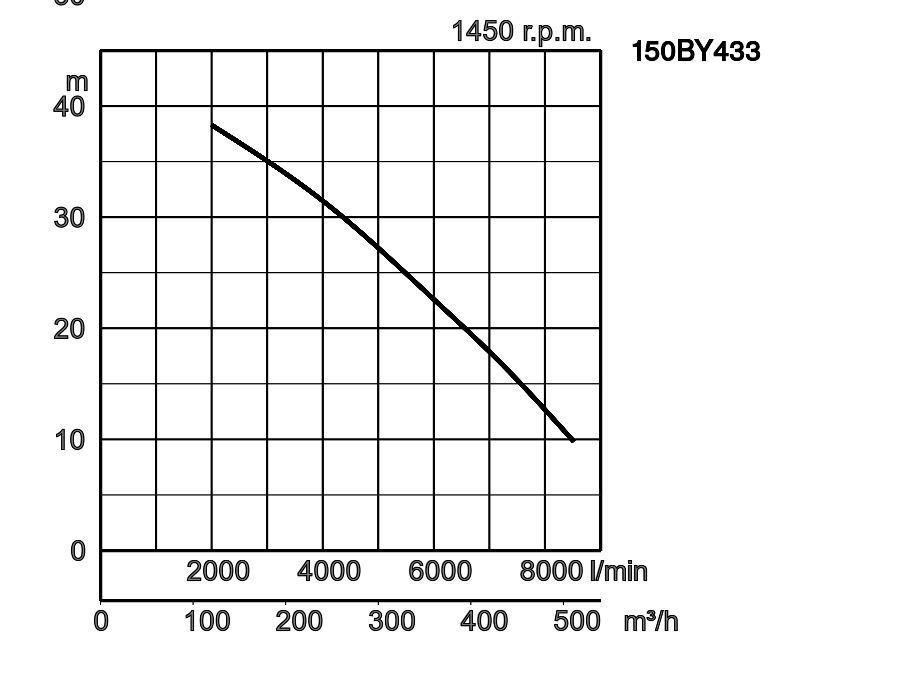

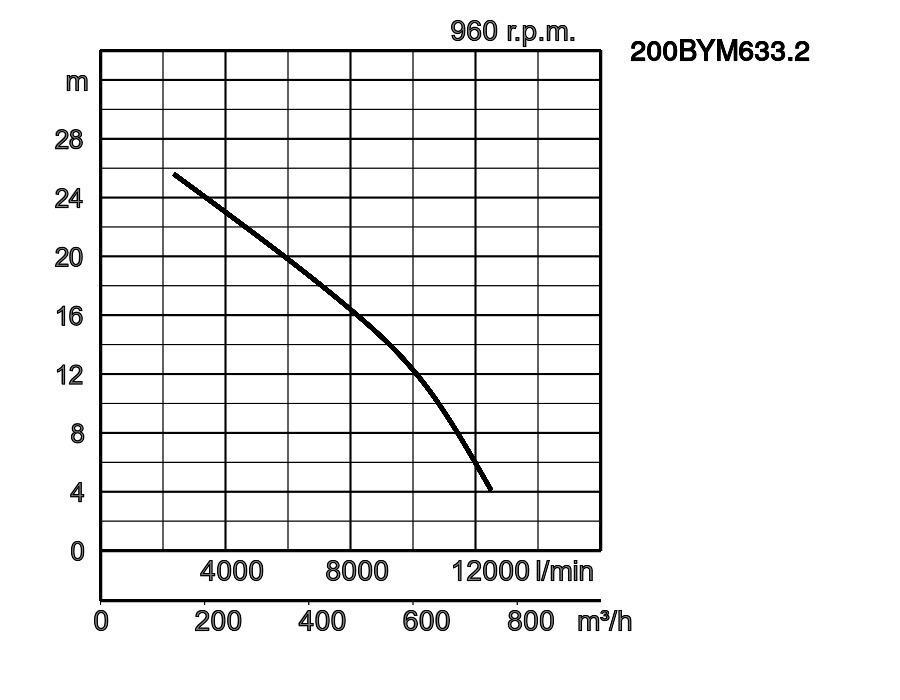

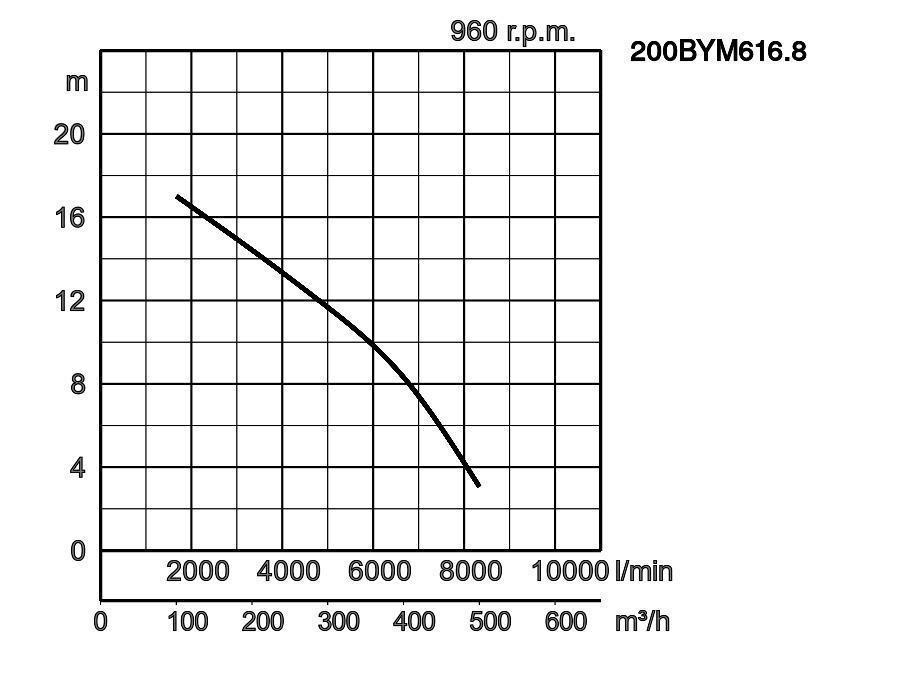

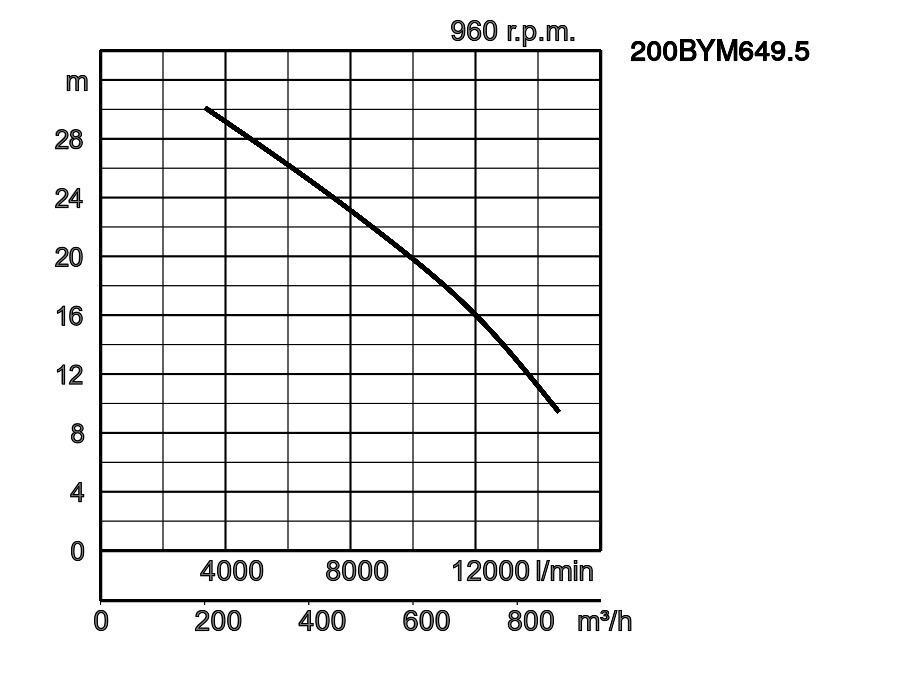

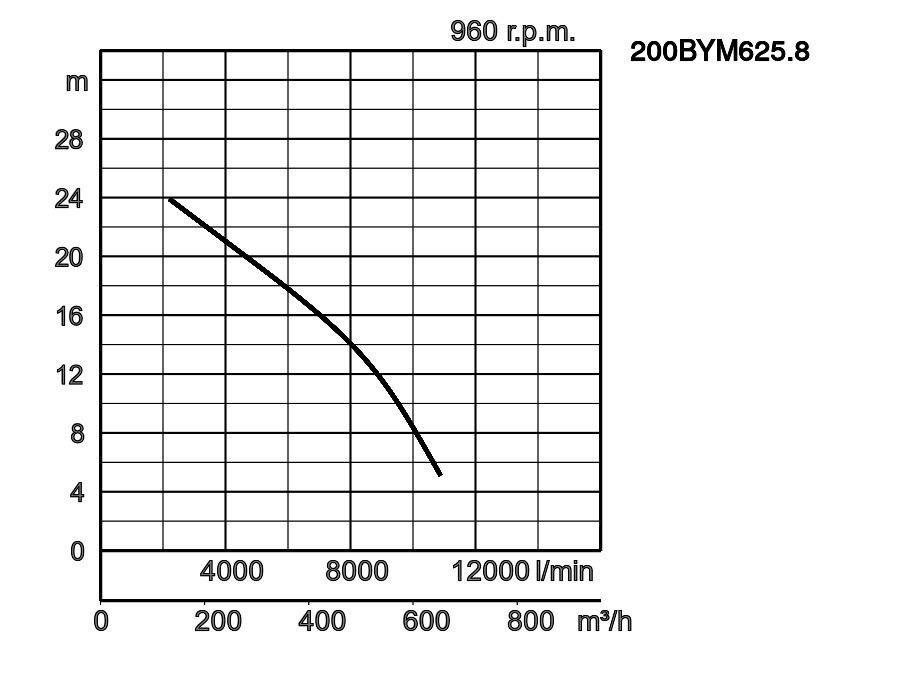

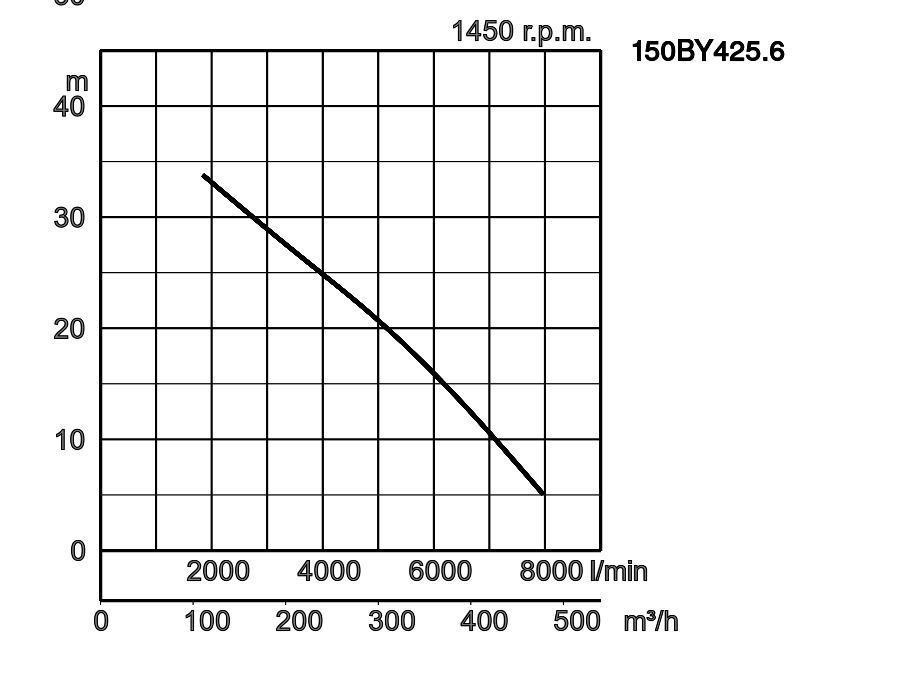

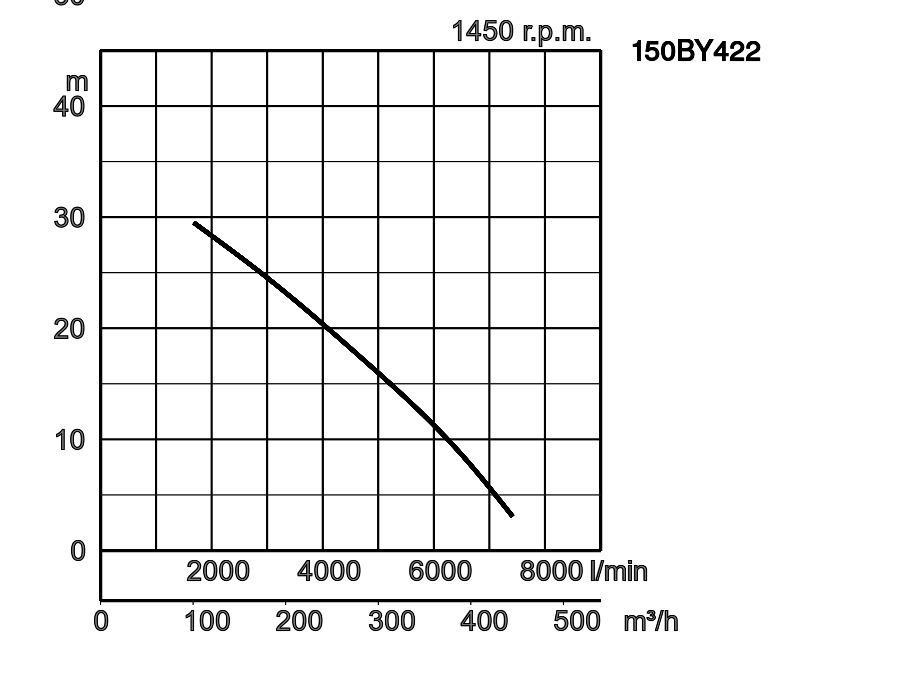

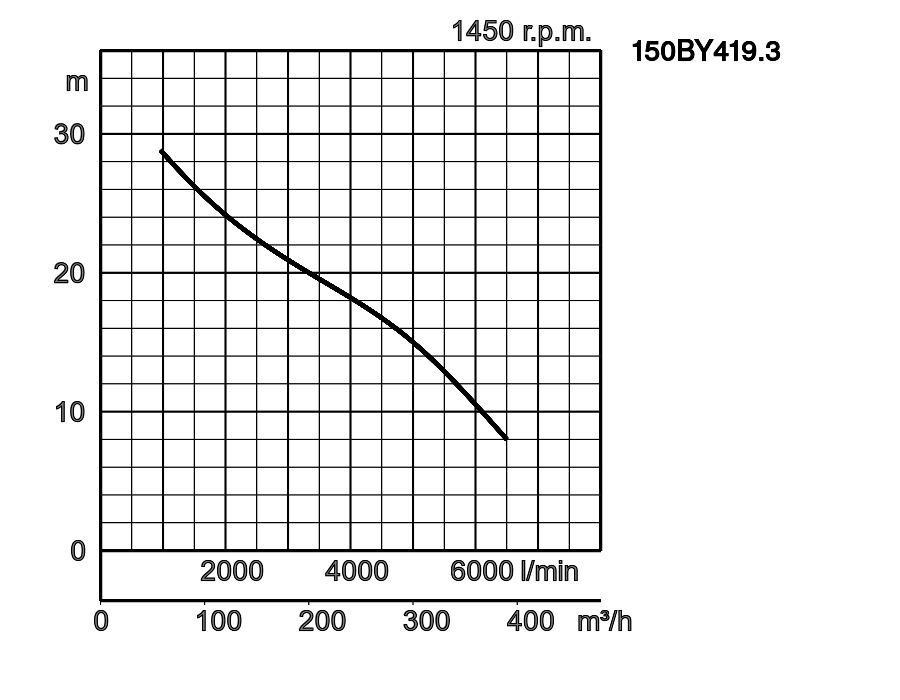

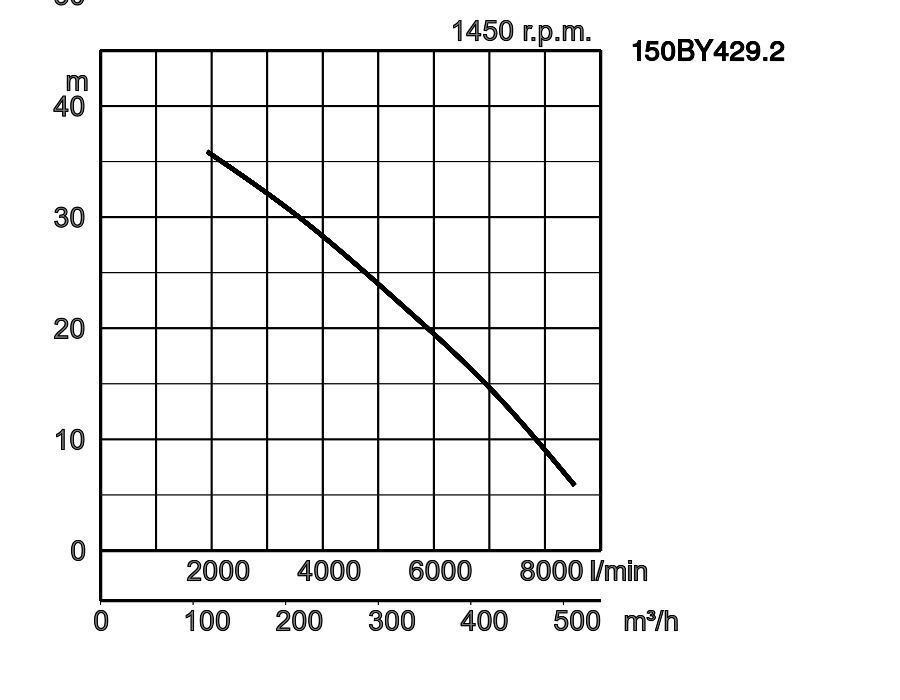

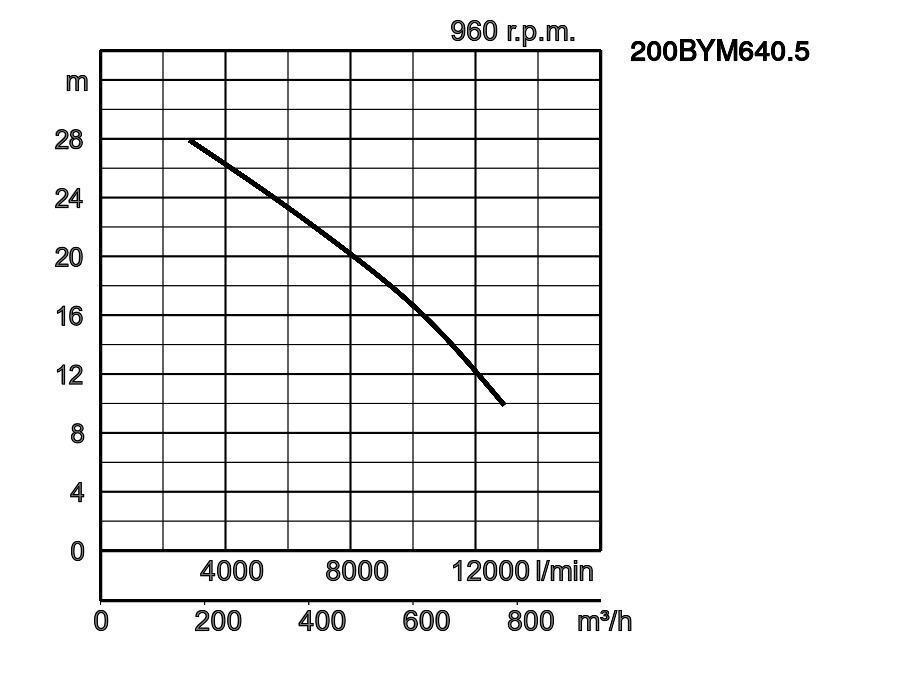

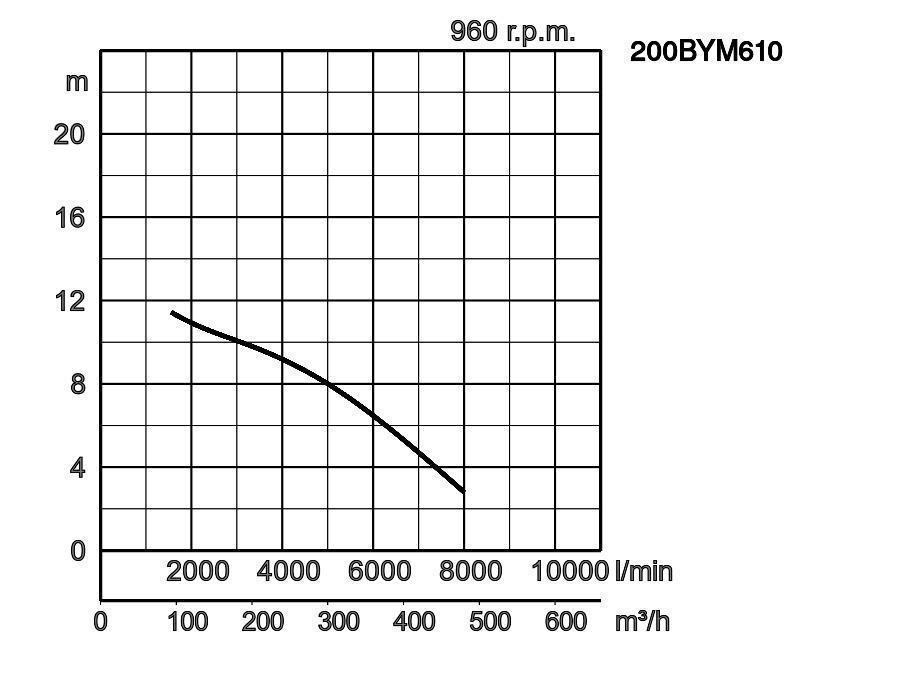

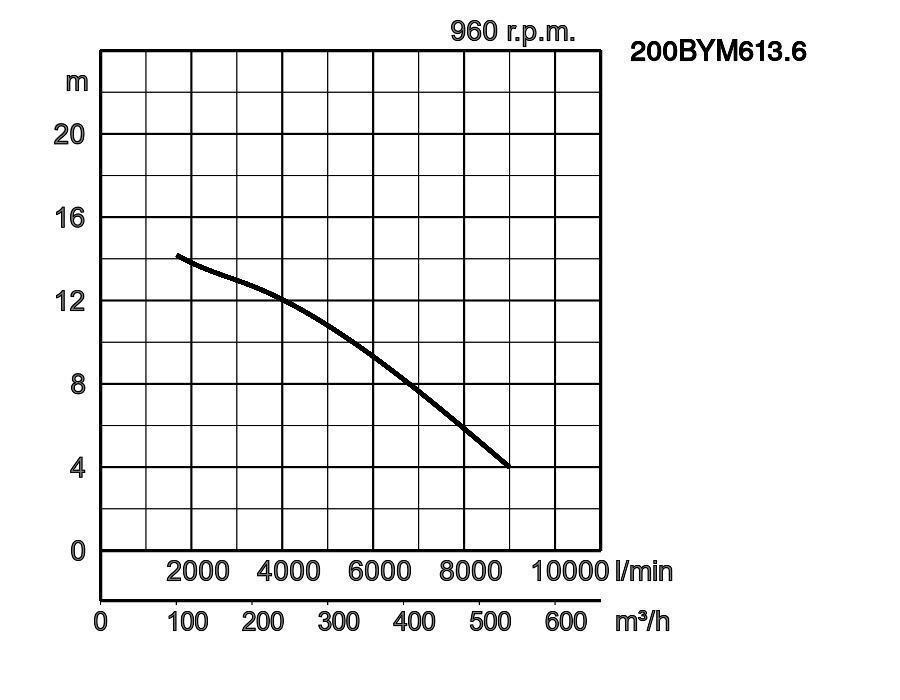

Performance curve
Kurve_U.jpg Kurve_U.jpg Kurve_U.jpg Kurve_U.jpg
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm ATEX available Dry installation
free standing with guide rail fitting
100BYM41.3 TOS100BYM41.3 100 3 1,3 7,0 1387 80 Yes
100BYM42.6LL TOS100BY42.6LL 100 3 2,6 8,4 1583 80 Yes
100BYM42.6L TOS100BY42.6L 100 3 2,6 11,1 1833 80 Yes
100BYM42.6 TOS100BYM42.6 100 3 2,6 12,8 2000 80 Yes
100BYM42.9 TOS100BYM42.9 100 3 2,9 15,5 1767 80 Yes
100BYM43.7 TOS100BYM43.7 100 3 3,7 14,4 2583 80 Yes
100BYM43.7H TOS100BYM43.7H 100 3 3,7 16,1 1444 80 Yes
100BYM45.0 TOS100BYM45.0 100 3 5,0 16,1 2817 80 Yes
100BYM46.5 TOS100BYM46.5 100 3 6,5 18,0 3067 80 Yes
100BYM46.5H TOS100BYM46.5H 100 3 6,5 22,1 2033 80 Yes
150BYM419.3 TOS150BYM419.3 150 3 19,3 27,8 6500 100 Yes
150BYM412.2 TOS150BYM412.2 150 3 12,2 22,2 5833 100 Yes Yes
150BYM414.6 TOS150BYM414.6 150 3 14,6 25,1 4504 100 Yes
150BYM422 TOS150BYM422 150 3 22 29,5 7417 100 Yes
150BYM425.6 TOS150BYM425.6 150 3 25,6 33,8 7967 100 Yes
150BYM429.2 TOS150BYM429.2 150 3 29,2 35,9 8533 100 Yes
150BYM433 TOS150BYM433 150 3 33 38,3 8520 100 Yes
200BYM67.3 TOS200BYM67.3 200 3 7,3 9,4 7167 100 Yes
200BYM625.8 TOS200BYM625.8 200 3 25,8 23,9 10883 100 Yes
200BYM610 TOS200BYM610 200 3 10 11,5 8000 100 Yes
200BYM633.2 TOS200BYM633.2 200 3 33,2 25,6 12500 100 Yes
200BYM613.6 TOS200BYM613.6 200 3 13,6 14,2 9000 100 Yes
200BYM640.5 TOS200BYM640.5 200 3 40,5 27,9 12917 100 Yes
200BYM616.8 TOS200BYM616.8 200 3 16,8 17,0 8333 100 Yes
200BYM649.5 TOS200BYM649.5 200 3 49,5 30,1 14667 100 Yes
200BYM619.5 TOS200BYM619.5 200 3 19,5 19,3 9000 100 Yes
200BYM622.6 TOS200BYM622.6 200 3 22,6 21,6 10000 100 Yes
300BYM640.5 TOS300BYM640.5 300 3 40,5 20,6 20333 150 Yes
300BYM698 TOS300BYM698 300 3 98 33,0 32508 150 Yes
300BYM649.5 TOS300BYM649.5 300 3 49,5 23,1 23167 150 Yes
300BYM6112 TOS300BYM6112 300 3 112 36,2 32500 150 Yes
300BYM658 TOS300BYM658 300 3 58 24,7 25166 150 Yes
300BYM6132 TOS300BYM6132 300 3 132 38,0 32500 150 Yes
300BYM668.5 TOS300BYM668.5 300 3 68,5 27,9 29117 150 Yes
300BYM6160 TOS300BYM6160 300 3 160 40,1 32500 150 Yes
300BYM682 TOS300BYM682 300 3 82 29,5 31166 150 Yes

Discharge bore mm 100
Phases 3
Motor output kW 1,3
Head max. m 7,0
Capacity max. l/min 1387
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 2,6
Head max. m 8,4
Capacity max. l/min 1583
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 2,6
Head max. m 11,1
Capacity max. l/min 1833
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 2,6
Head max. m 12,8
Capacity max. l/min 2000
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 2,9
Head max. m 15,5
Capacity max. l/min 1767
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 3,7
Head max. m 14,4
Capacity max. l/min 2583
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 3,7
Head max. m 16,1
Capacity max. l/min 1444
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 5,0
Head max. m 16,1
Capacity max. l/min 2817
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 6,5
Head max. m 18,0
Capacity max. l/min 3067
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 100
Phases 3
Motor output kW 6,5
Head max. m 22,1
Capacity max. l/min 2033
Max. solid handling ø mm 80
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 19,3
Head max. m 27,8
Capacity max. l/min 6500
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 12,2
Head max. m 22,2
Capacity max. l/min 5833
Max. solid handling ø mm 100
ATEX available Yes
Dry installation Yes

Discharge bore mm 150
Phases 3
Motor output kW 14,6
Head max. m 25,1
Capacity max. l/min 4504
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 22
Head max. m 29,5
Capacity max. l/min 7417
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 25,6
Head max. m 33,8
Capacity max. l/min 7967
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 29,2
Head max. m 35,9
Capacity max. l/min 8533
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 150
Phases 3
Motor output kW 33
Head max. m 38,3
Capacity max. l/min 8520
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 7,3
Head max. m 9,4
Capacity max. l/min 7167
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 25,8
Head max. m 23,9
Capacity max. l/min 10883
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 10
Head max. m 11,5
Capacity max. l/min 8000
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 33,2
Head max. m 25,6
Capacity max. l/min 12500
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 13,6
Head max. m 14,2
Capacity max. l/min 9000
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 40,5
Head max. m 27,9
Capacity max. l/min 12917
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 16,8
Head max. m 17,0
Capacity max. l/min 8333
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 49,5
Head max. m 30,1
Capacity max. l/min 14667
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 19,5
Head max. m 19,3
Capacity max. l/min 9000
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 200
Phases 3
Motor output kW 22,6
Head max. m 21,6
Capacity max. l/min 10000
Max. solid handling ø mm 100
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 40,5
Head max. m 20,6
Capacity max. l/min 20333
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 98
Head max. m 33,0
Capacity max. l/min 32508
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 49,5
Head max. m 23,1
Capacity max. l/min 23167
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 112
Head max. m 36,2
Capacity max. l/min 32500
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 58
Head max. m 24,7
Capacity max. l/min 25166
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 132
Head max. m 38,0
Capacity max. l/min 32500
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 68,5
Head max. m 27,9
Capacity max. l/min 29117
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 160
Head max. m 40,1
Capacity max. l/min 32500
Max. solid handling ø mm 150
ATEX available Yes

Discharge bore mm 300
Phases 3
Motor output kW 82
Head max. m 29,5
Capacity max. l/min 31166
Max. solid handling ø mm 150
ATEX available Yes
General
ø Discharge bore mm 100mm, 150mm, 200mm, 300mm
Discharge Connection Flange DIN/ANSI DN100 (PN10), Flange DIN/ANSI DN150 (PN10), Flange DIN/ANSI DN200 (PN10), Flange DIN/ANSI DN300 (PN10)
Optional Accessories Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types
Oil chamber Moisture Sensor
Pump
Components
Impeller Single channel impeller, Dual channel impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material
Impeller Grey iron casting EN-GJL-250
Casing Grey iron casting EN-GJL-250
Shaft Seal SiC, upper in oil bath
Wearring Bronze
Pumping Fluid
Temperature 0-40°C
Type of Fluid Municipal sewage
Motor
Lubrication Turbine oil (ISO VG32)
Motor Protector (built-in) Miniature protector
Type, Poles Induction motor, 4 poles, IP68, Induction motor, 6 poles, IP68
Insulation Insulation class H
Phase / Voltage 3-phase / 400V / 50Hz / d.o.l., 3-phase / 400V / 50Hz / s.d.
Material
Casing Grey iron casting EN-GJL-250
Shaft Stainless steel EN-X14Cr­Mo­S17, Stainless steel EN-X20Cr13
Cable Rubber, 10m H07RN8-F

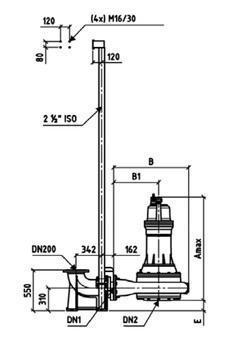

Dimensions in mm:
W1: lowest running water level
  • 100BYM41.3
  • 100BYM42.6L
  • 100BYM42.6
  • 100BYM43.7H
  • 100BYM43.7
  • 100BYM45.0
  • 100BYM46.5
  • 150BYM419.3
  • 150BYM422
  • 150BYM425.6
  • 150BYM429.2
  • 150BYM433
  • 150BYM412.2
  • 150BYM414.6
  • 100BYM42.6LL
  • 100BYM42.9
  • 100BYM46.5H
W1: lowest running water level
  • 200BYM610
  • 300BYM640.5
  • 200BYM67.3
  • 200BYM613.6
  • 200BYM616.8
  • 200BYM619.5
  • 200BYM622.6
  • 200BYM625.8
  • 200BYM640.5
  • 200BYM649.5
  • 300BYM649.5
  • 300BYM658
  • 300BYM668.5
  • 300BYM682
  • 300BYM698
  • 300BYM6112
  • 300BYM6132
  • 300BYM6160
  • 200BYM633.2
ModelABB1CC1DN1DN2DN3F1F2F3GHJ1
100BYM41.3517360200305145100100100125218403395577122
100BYM42.6LL554360200305145100100100125218403395577122
100BYM42.6L554360200305145100100100125218403395577122
100BYM42.6554360200305145100100100125218403395577122
100BYM42.9692460280357163100100100125225410395656122
100BYM43.7692460280357163100100100125225410395656122
100BYM43.7H692460280357163100100100125225410395656122
100BYM45.0765460280357163100100100125225410395656122
100BYM46.5765460280357163100100100125225410395656122
100BYM46.5H772488300381178100100100125220405395677122
150BYM419.3985610370467209150150150125262548450967273
150BYM412.2895610370467209150150150125262548450967273
150BYM414.6895610370467209150150150125262548450967273
150BYM42212016904205472411501501501743125986001077273
150BYM425.613266904205472411501501501743125986001077273
150BYM429.213266904205472411501501501743125986001077273
150BYM43313266904205472411501501501743125986001077273
200BYM67.39907404505472412002502002504147818001389369
200BYM625.813338785506502912002002002504007676001417369
200BYM61010507404505472412002502002504147818001389369
200BYM633.213388785506502912002002002504007676001417369
200BYM613.611407404505472412002502002504147818001389369
200BYM640.5140510006007793532002502002504227898001539369
200BYM616.812088785506502912002002002504007676001417369
200BYM649.5153510006007793532002502002504227898001539369
200BYM619.513338785506502912002002002504007676001417369
200BYM622.613338785506502912002002002504007676001417369
300BYM640.514631100630915386300350300300505103010001880527
300BYM698177312007001022443300350300300505103010001970527
300BYM649.515931100630915386300350300300505103010001880527
300BYM6112177312207001022443300350300300505103010001970527
300BYM65815931100630915386300350300300505103010001880527
300BYM6132209012207001022443300350300------
300BYM668.517731100630915386300350300300505103010001880527
300BYM6160209012207001022443300350300------
300BYM68217731100630915386300350300300505103010001880527
Dimensions - guide rail fitting type in mm:
  • 150BYM419.3
  • 150BYM422
  • 150BYM425.6
  • 150BYM429.2
  • 150BYM433
  • 150BYM412.2
  • 150BYM414.6
W1: lowest running water level
  • 100BYM41.3
  • 100BYM42.6L
  • 100BYM42.6
  • 100BYM43.7H
  • 100BYM43.7
  • 100BYM45.0
  • 100BYM46.5
  • 100BYM42.6LL
  • 100BYM42.9
  • 100BYM46.5H
W1: lowest running water level
  • 300BYM640.5
  • 300BYM649.5
  • 300BYM658
  • 300BYM668.5
  • 300BYM682
  • 300BYM698
  • 300BYM6112
  • 300BYM6132
  • 300BYM6160
W1: lowest running water level
  • 200BYM610
  • 200BYM67.3
  • 200BYM613.6
  • 200BYM616.8
  • 200BYM619.5
  • 200BYM622.6
  • 200BYM625.8
  • 200BYM640.5
  • 200BYM649.5
  • 200BYM633.2
W1: lowest running water level
ModelABB1CC1DDN1DN2E
100BYM41.3517360200305145784100100147
100BYM42.6LL554360200305145784100100147
100BYM42.6L554360200305145784100100147
100BYM42.6554360200305145784100100147
100BYM42.9692460280357163884100100140
100BYM43.7692460280357163884100100140
100BYM43.7H692460280357163884100100140
100BYM45.0765460280357163884100100140
100BYM46.5765460280357163884100100140
100BYM46.5H772488300381178912100100145
150BYM419.39856103704672091160150150138
150BYM412.28956103704672091160150150138
150BYM414.68956103704672091160150150138
150BYM42212016904205472411239150150137
150BYM425.613266904205472411239150150137
150BYM429.213266904205472411239150150137
150BYM43313266904205472411239150150137
200BYM67.39907404505472411414200250145
200BYM625.813338785506502911552200200160
200BYM61010507404505472411414200250145
200BYM633.213388785506502911552200200160
200BYM613.611407404505472411414200250145
200BYM640.5140510006007793531674200250138
200BYM616.812088785506502911552200200160
200BYM649.5153510006007793531674200250138
200BYM619.513338785506502911552200200160
200BYM622.613338785506502911552200200160
300BYM640.5146311006309153861946300350145
300BYM6981773120070010224432066300350145
300BYM649.5159311006309153861946300350145
300BYM61121773122070010224432066300350145
300BYM658159311006309153861946300350145
300BYM61322090122070010224432066300350145
300BYM668.5177311006309153861946300350145
300BYM61602090122070010224432066300350145
300BYM682177311006309153861946300350145

BYM series equipped with closed channel impellers for contaminated and muddy water pumped with solids and long fibres. New BY hydraulic generation with clogging-resistant impellers is ground breaking in the industry combining efficiency and operational safety. ATEX available.
