B | 3-phase / 50Hz

Special impeller and shaver mechanism (special groove) ensures that waste water and sewage are efficiently transferred.

Technical Data

  • Discharge bore mm: 50,80,100,150
  • Head max. m: 7,1 - 29,7
  • Capacity max. l/min: 260 - 5000
  • Motor output kW: 0,75 - 15
  • Phases: 3
  • Max. solid handling ø mm: 19 - 75

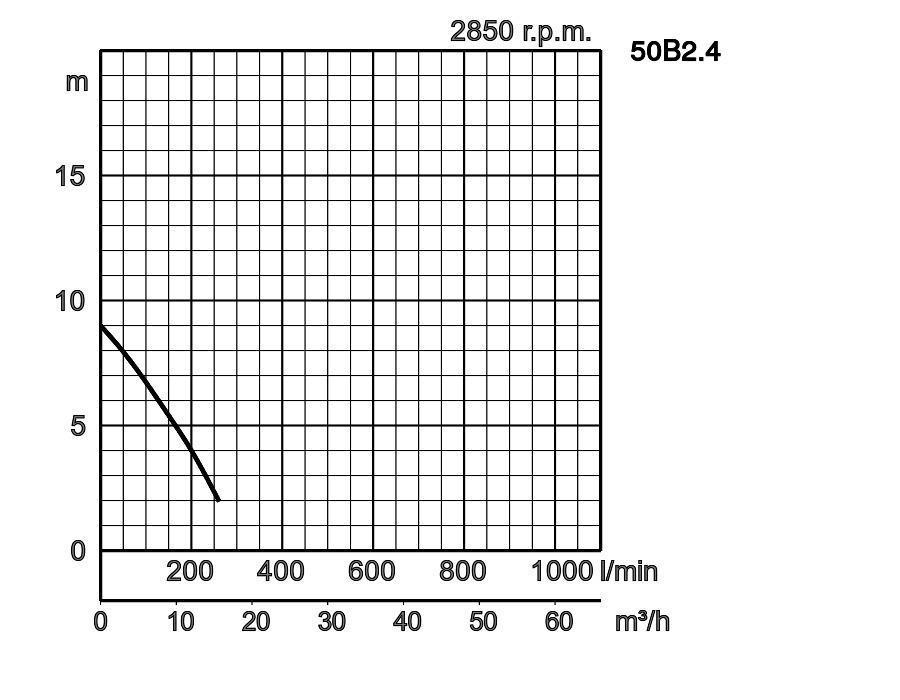

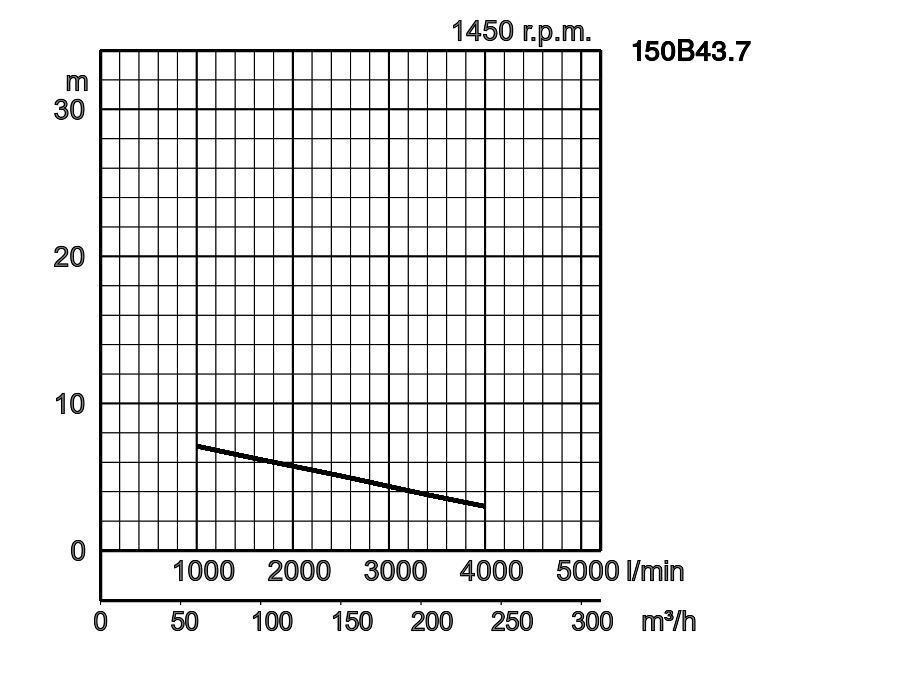

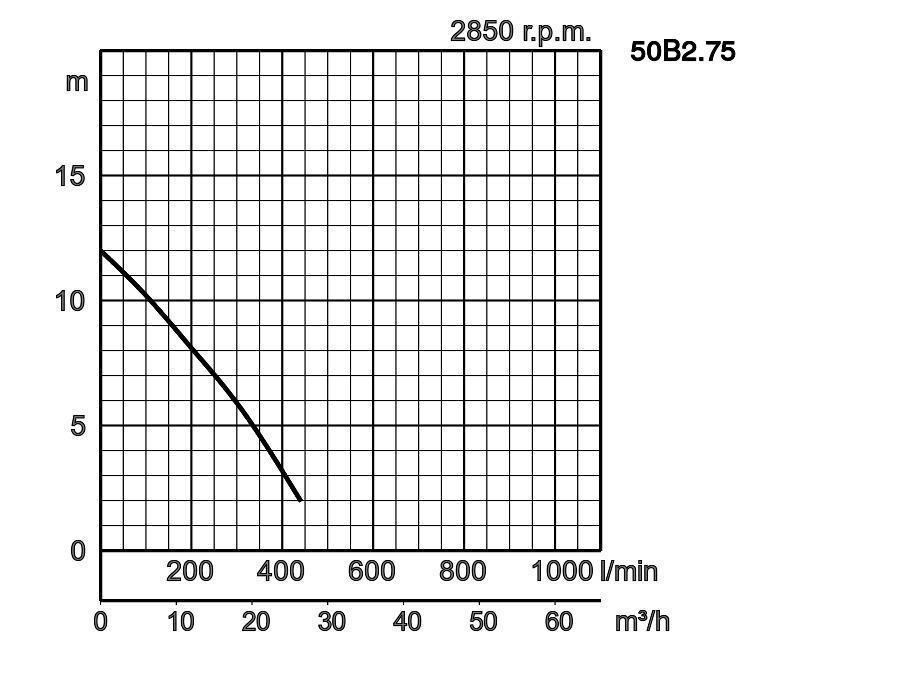

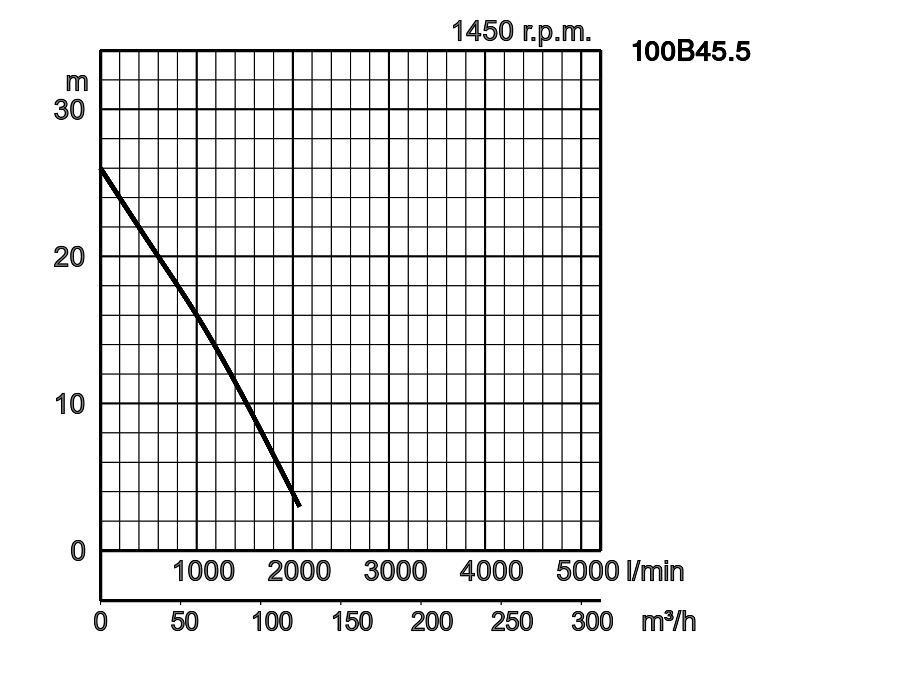

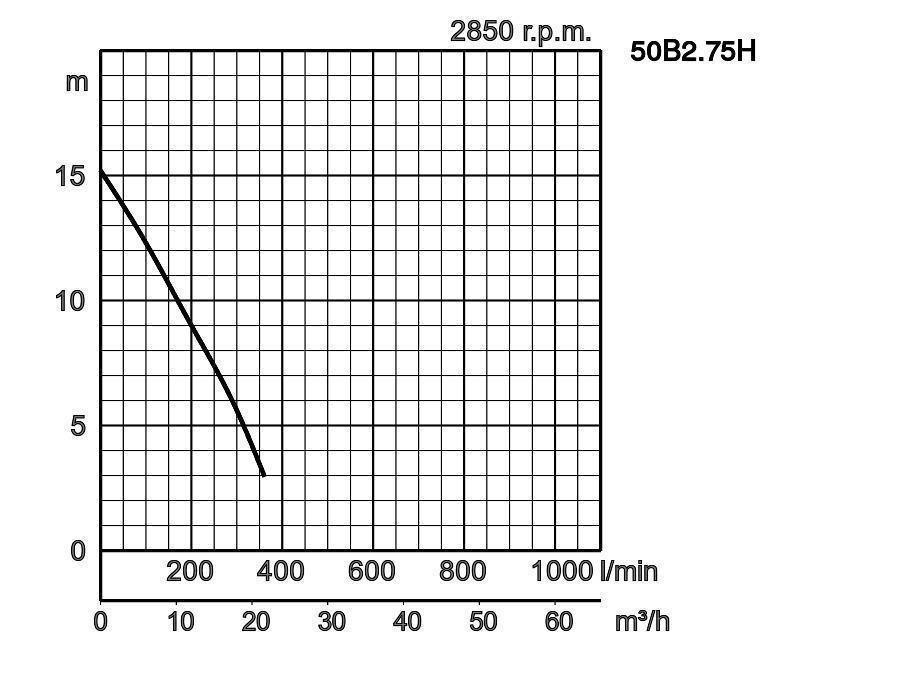

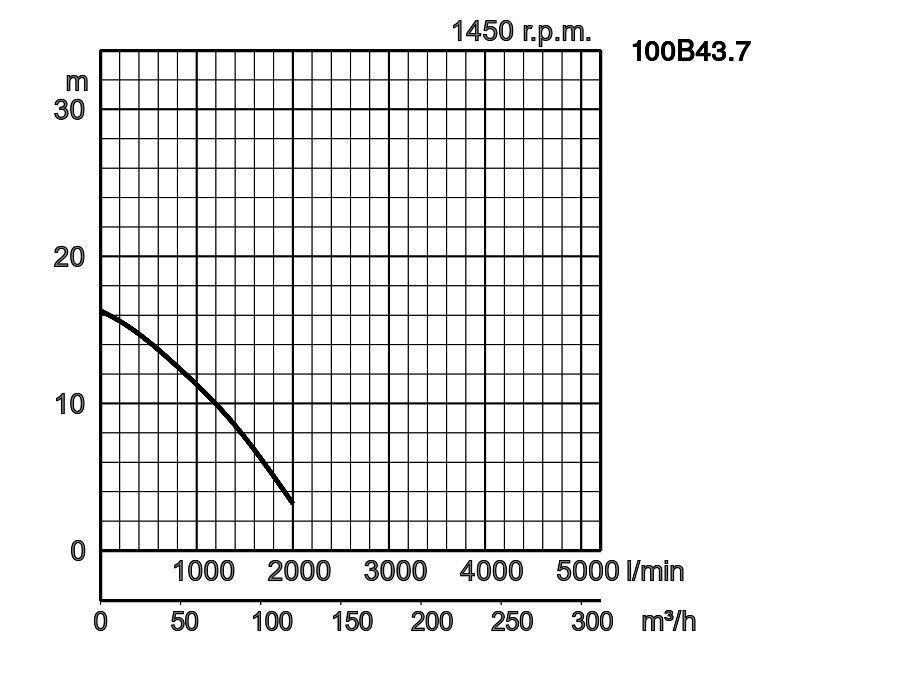

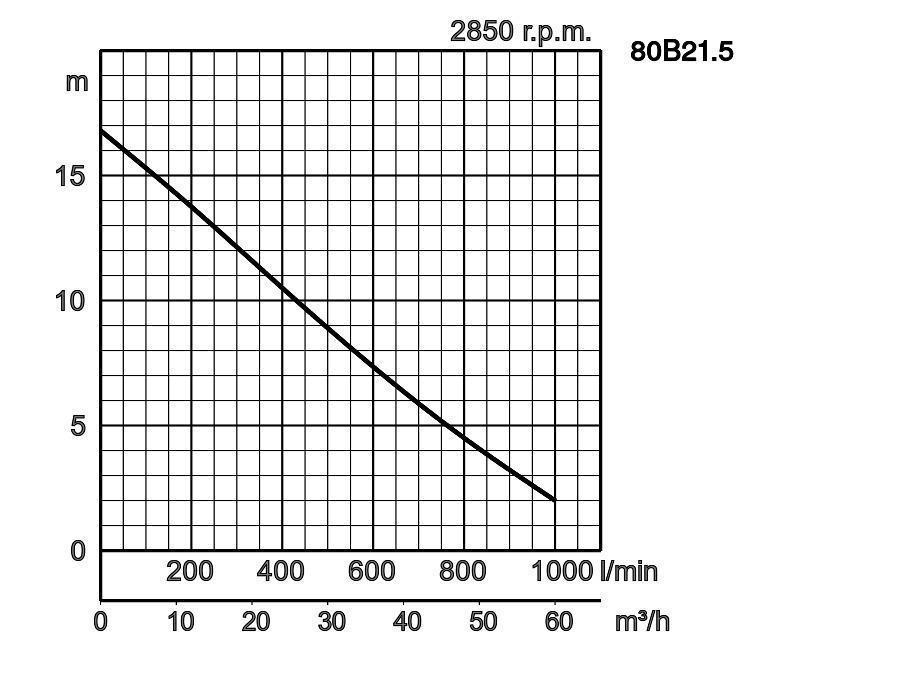

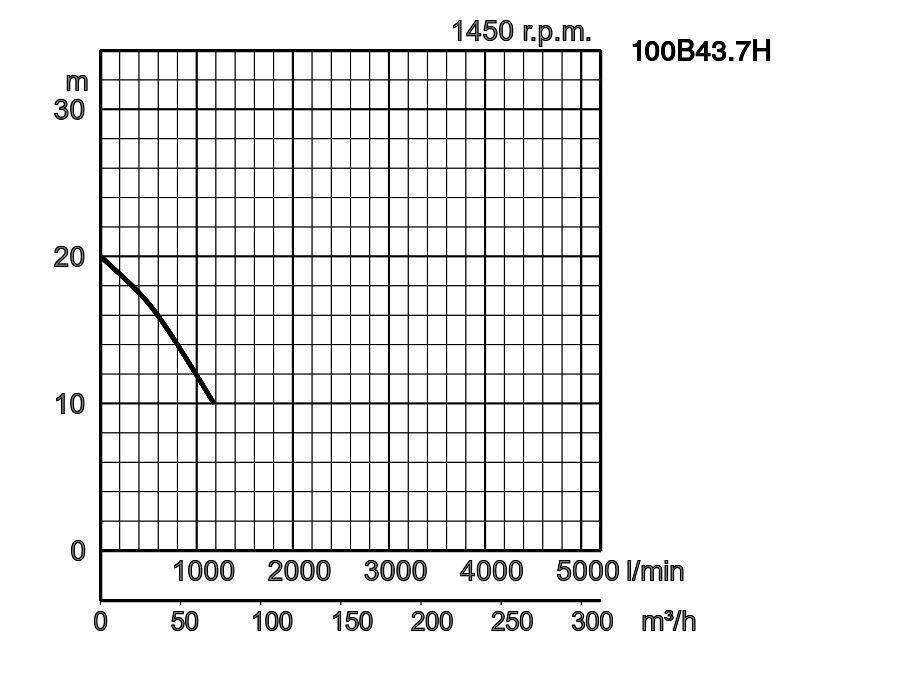

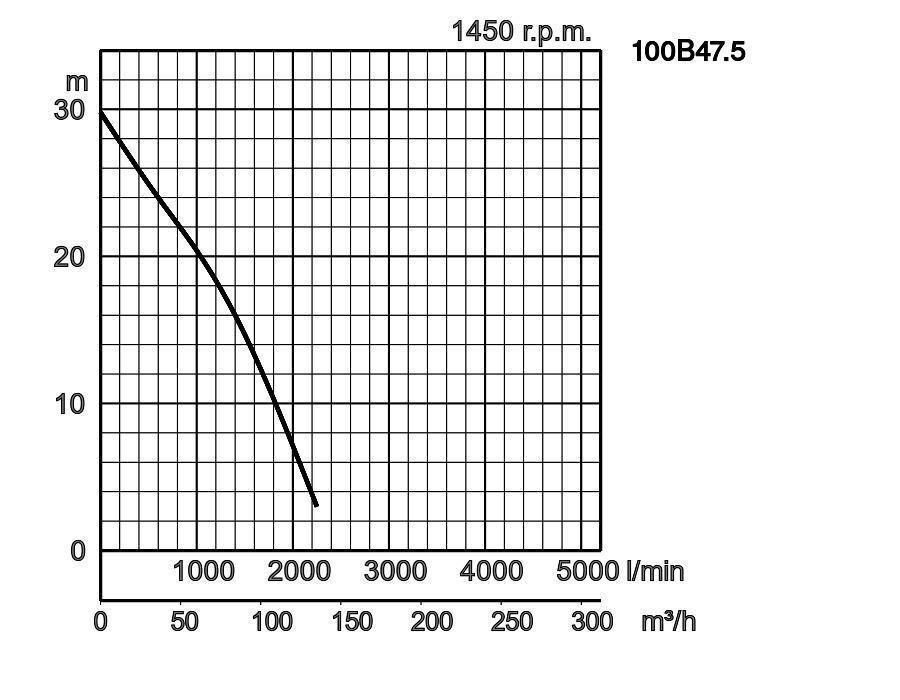

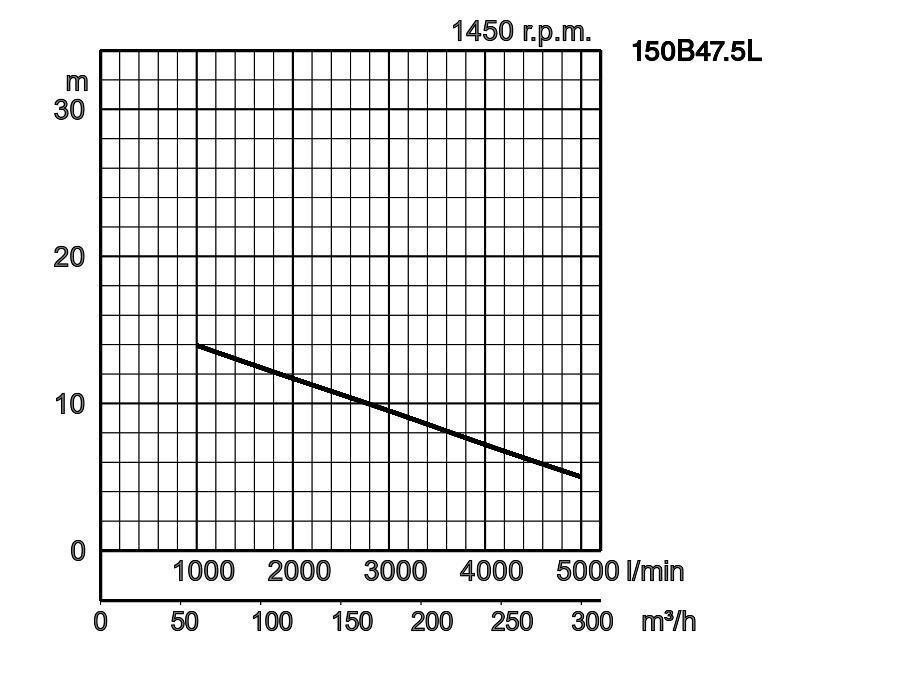

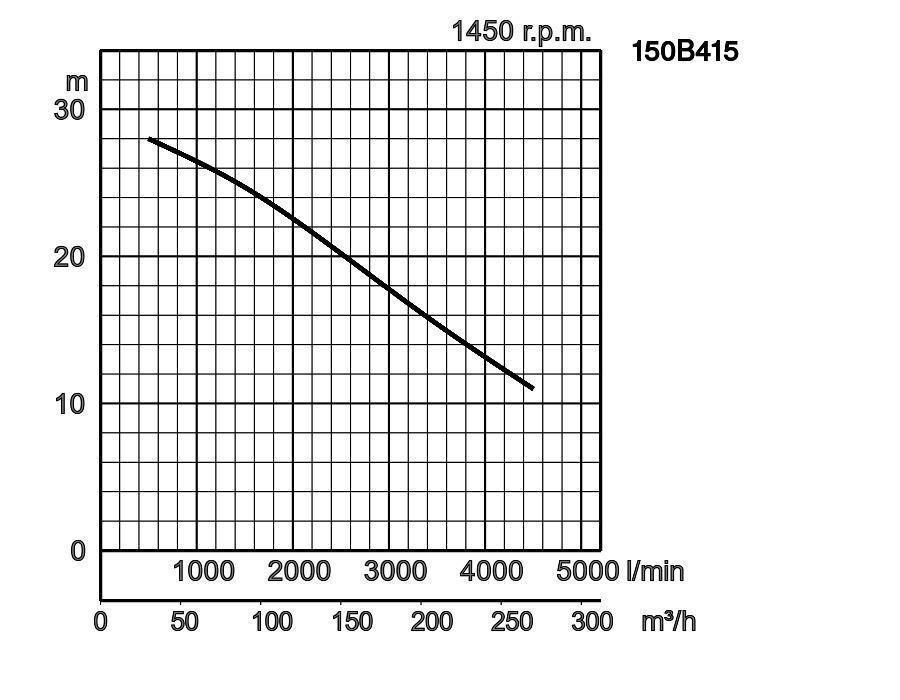

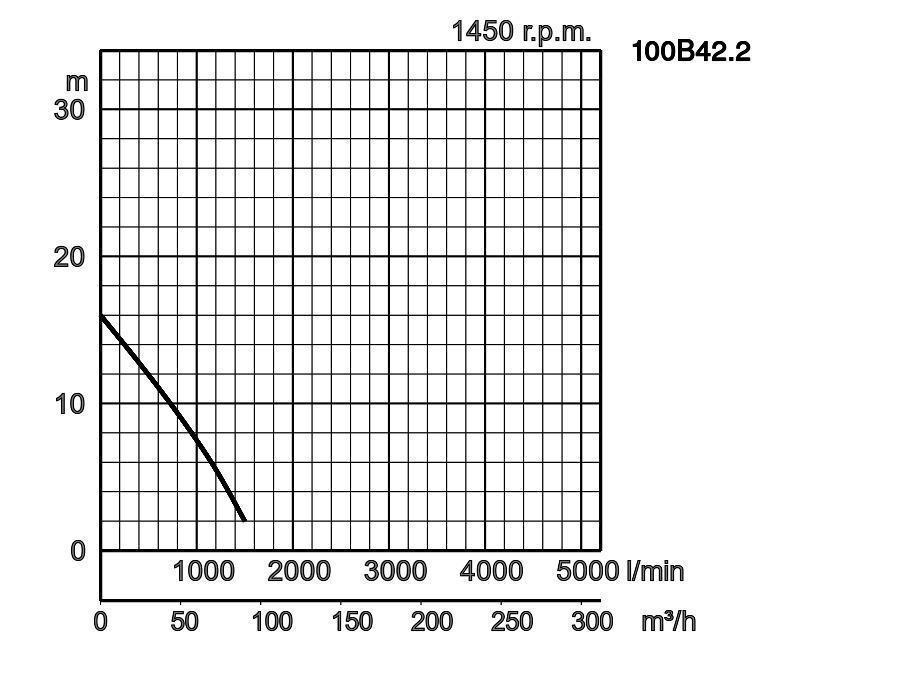

Performance curve
Kurve_U.jpg Kurve_U.jpg
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
free standing with guide rail fitting
50B2.4 TOS50B2.4 50 3 0,4 9,0 260 19
50B2.75 TOS50B2.75 50 3 0,75 12,0 435 20
50B2.75H TOS50B2.75H 50 3 0,75 15,2 360 20
80B21.5 TOS80B21.5 80 3 1,5 16,8 1000 40
100B42.2 TOS100B42.2 100 3 2,2 16,0 1500 45
100B43.7 TOS100B43.7 100 3 3,7 16,4 2000 53
150B43.7 TOS150B43.7 150 3 3,7 7,1 4000 53
100B43.7H TOS100B43.7H 100 3 3,7 20,0 1180 35
100B45.5 TOS100B45.5 100 3 5,5 26,0 2080 40
100B47.5 TOS100B47.5 100 3 7,5 29,7 2260 40
150B47.5L TOS150B47.5L 150 3 7,5 13,95 5000 60
150B415 TOS150B415 150 3 15 28,0 4500 75

Discharge bore mm 50
Phases 3
Motor output kW 0,4
Head max. m 9,0
Capacity max. l/min 260
Max. solid handling ø mm 19

Discharge bore mm 50
Phases 3
Motor output kW 0,75
Head max. m 12,0
Capacity max. l/min 435
Max. solid handling ø mm 20

Discharge bore mm 50
Phases 3
Motor output kW 0,75
Head max. m 15,2
Capacity max. l/min 360
Max. solid handling ø mm 20

Discharge bore mm 80
Phases 3
Motor output kW 1,5
Head max. m 16,8
Capacity max. l/min 1000
Max. solid handling ø mm 40

Discharge bore mm 100
Phases 3
Motor output kW 2,2
Head max. m 16,0
Capacity max. l/min 1500
Max. solid handling ø mm 45

Discharge bore mm 100
Phases 3
Motor output kW 3,7
Head max. m 16,4
Capacity max. l/min 2000
Max. solid handling ø mm 53

Discharge bore mm 150
Phases 3
Motor output kW 3,7
Head max. m 7,1
Capacity max. l/min 4000
Max. solid handling ø mm 53

Discharge bore mm 100
Phases 3
Motor output kW 3,7
Head max. m 20,0
Capacity max. l/min 1180
Max. solid handling ø mm 35

Discharge bore mm 100
Phases 3
Motor output kW 5,5
Head max. m 26,0
Capacity max. l/min 2080
Max. solid handling ø mm 40

Discharge bore mm 100
Phases 3
Motor output kW 7,5
Head max. m 29,7
Capacity max. l/min 2260
Max. solid handling ø mm 40

Discharge bore mm 150
Phases 3
Motor output kW 7,5
Head max. m 13,95
Capacity max. l/min 5000
Max. solid handling ø mm 60

Discharge bore mm 150
Phases 3
Motor output kW 15
Head max. m 28,0
Capacity max. l/min 4500
Max. solid handling ø mm 75
General
ø Discharge bore mm 50mm, 80mm, 100mm, 150mm
Discharge Connection Inside thread, JIS10K flange
Optional Accessories Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types
Pump
Components
Impeller Non-clog impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material
Impeller Grey iron casting EN-GJL-200
Casing Grey iron casting EN-GJL-200
Suction Plate Ductile iron casting EN-GJS-450-10, Grey iron casting EN-GJL-200
Shaft Seal Silicon carbide in oil bath
Pumping Fluid
Temperature 0-40°C
Type of Fluid Municipal sewage
Motor
Lubrication Turbine oil (ISO VG32)
Motor Protector (built-in) Circle thermal cut-out
Type, Poles Induction motor, 2 poles, IP68, Induction motor, 4 poles, IP68
Insulation Insulation class E, Insulation class F
Phase / Voltage 3-phase / 400V / 50Hz / d.o.l., 3-phase / 400V / 50Hz / s.d.
Material
Casing Grey iron casting EN-GJL-150, Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X6Cr13, Stainless steel EN-X30Cr13
Cable Rubber, NSSHÖU
Dimensions in mm:
W1: lowest running water level
  • 50B2.4
  • 50B2.75
  • 50B2.75H
  • 80B21.5
  • 100B42.2
  • 100B43.7
  • 100B43.7H
  • 100B45.5
  • 100B47.5
  • 150B47.5L
  • 150B415
  • 150B43.7
ModelAA1A2A3BB1DD1D2HW1W2
50B2.434720885120181155224112112443140340
50B2.75405226125138199155250125125439170410
50B2.75H405226125138199155250125125415145385
80B21.5446267125165234185250125125536190465
100B42.2569322154210303210331164167616225570
100B43.7575322160210308210339164175690235645
150B43.7871503228320515280486232254875450830
100B43.7H569322154210303210331164167666225620
100B45.5687388194260372210400197203824335700
100B47.5687388194260372210400197203814335720
150B47.5L8715032283205152804862322541085450955
150B41589551324233050628049024524511684051045
Dimensions - guide rail fitting type in mm:
  • 150B47.5L
  • 150B415
W1: lowest running water level
  • 50B2.4
  • 50B2.75
  • 50B2.75H
  • 80B21.5
  • 100B42.2
  • 100B43.7
  • 100B43.7H
  • 100B45.5
  • 100B47.5
  • 150B43.7
W1: lowest running water level
ModelAA1A2A3A5A6DD1D2HH1H2M1M2W1W2
50B2.43102258517517525322411211247869658550350200400
50B2.7536824312519317525325012512547966540550350210450
50B2.75H36824312519317525325012512545966544550350190430
80B21.541028512522516525825012512551558550500400240515
100B42.248433015427016527033116416763179015600500240585
100B43.749033016027016525833916417570086010600450245655
150B43.77355072284121903304592052548201010-900700395775
100B43.7H48433015427016527033116416768184015600500240635
100B45.56194251943301812863841812039061202118700600305775
100B47.56194251943301812863841812039271240118700600305800
150B47.5L73550722841219033045920525410301378144900700400900
150B41575951724242219033046422024411221488147900700360995
