Heavy-duty three-phase slurry pump, driven by a 4-pole or 6-pole motor. Fitted with a chromium iron agitator, impeller and suction plate for extra durability during harsh operating conditions. Capable of pumping bigger solids at greater volumes.

Technical Data

  • ø Discharge bore mm: 80 - 150
  • Type of Fluid: Sand/Slurry
  • Max. Solid Handling mm: 30 - 46
  • Max. dry matter %: 25
  • Max. PH Value: 5-9
  • Max. Capacity l/min: 1900 - 9000
  • Max. Head m: 16.30 - 35
  • Motor output kW: 5,5 - 37,0
  • Phase / Voltage: 3-phase / 400V / 50Hz

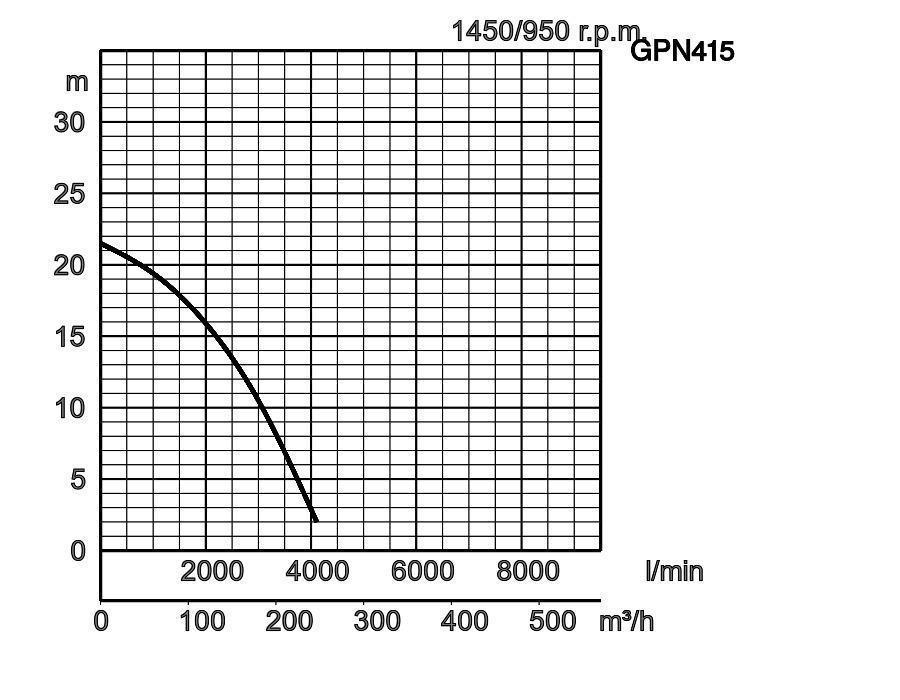

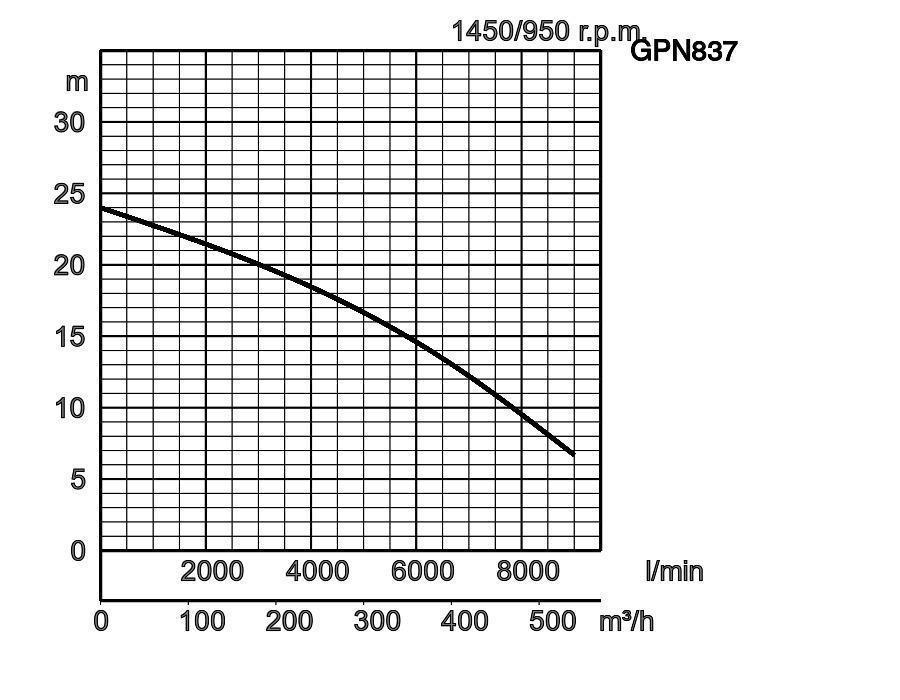

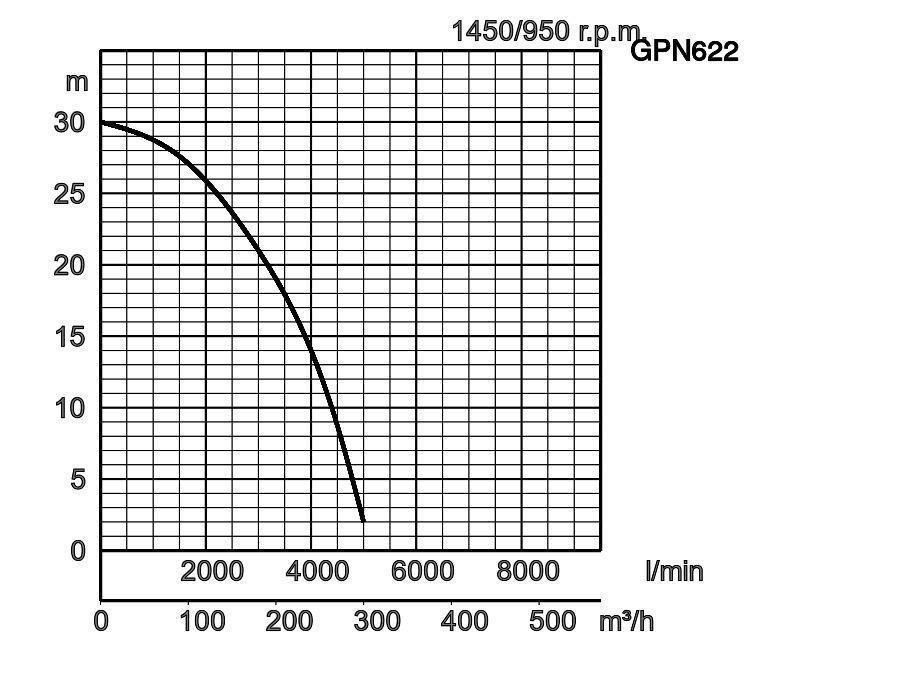

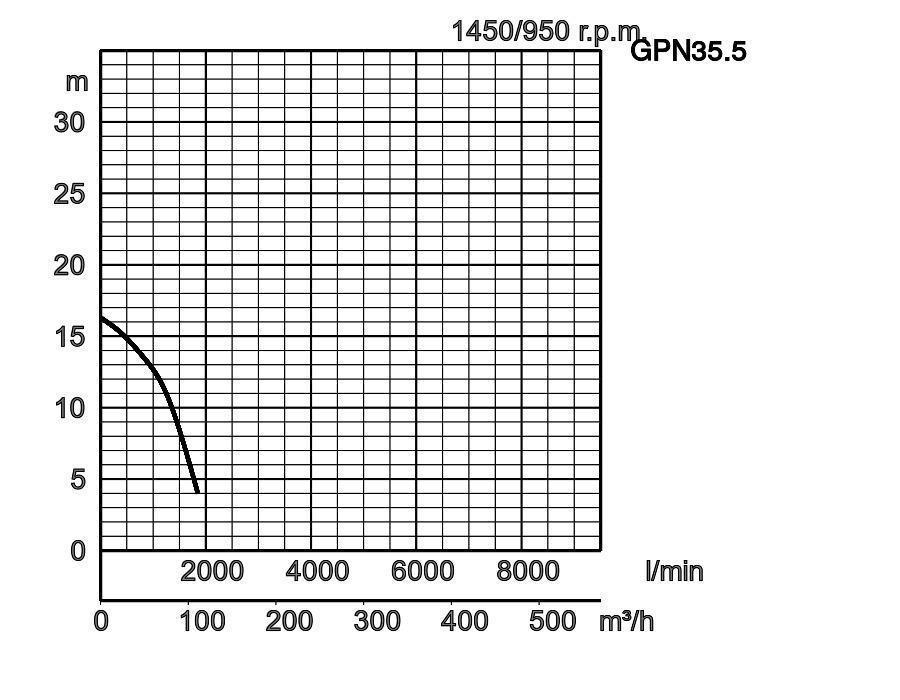

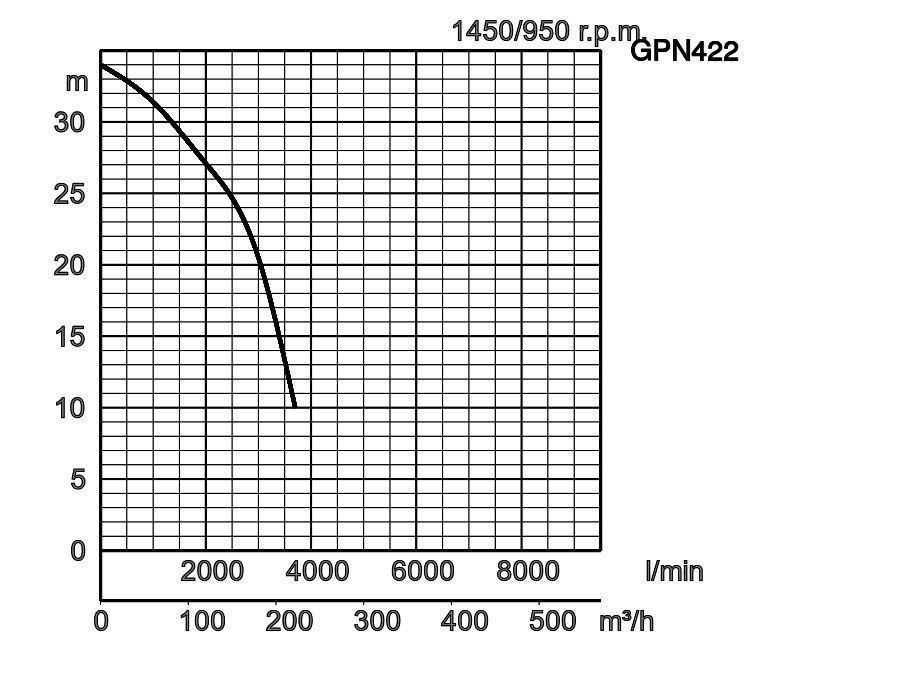

Performance curve
1 O
Specifications

Model Colour code curve ø Discharge bore mm Type of Fluid Max. Solid Handling mm Max. dry matter % Max. PH Value Max. Capacity l/min Max. Head m Motor output kW Phase / Voltage
GPN35.5
1
80 Sand/Slurry 30 25 5-9 1900 16.30 5,5 3-phase / 400V / 50Hz
GPN411
2
100 Sand/Slurry 30 25 5-9 3250 19.30 11,0 3-phase / 400V / 50Hz
GPN415
3
100 Sand/Slurry 30 25 5-9 4110 21.50 15,0 3-phase / 400V / 50Hz
GPN422
4
100 Sand/Slurry 30 25 5-9 3700 35 22,0 3-phase / 400V / 50Hz
GPN622
5
150 Sand/Slurry 30 25 5-9 5000 30 22,0 3-phase / 400V / 50Hz
GPN837
6
150 Sand/Slurry 46 25 5-9 9000 24 37,0 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Sand/Slurry
Max. Solid Handling mm 30
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 1900
Max. Head m 16.30
Motor output kW 5,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Sand/Slurry
Max. Solid Handling mm 30
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 3250
Max. Head m 19.30
Motor output kW 11,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Sand/Slurry
Max. Solid Handling mm 30
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 4110
Max. Head m 21.50
Motor output kW 15,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Sand/Slurry
Max. Solid Handling mm 30
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 3700
Max. Head m 35
Motor output kW 22,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Sand/Slurry
Max. Solid Handling mm 30
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 5000
Max. Head m 30
Motor output kW 22,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Sand/Slurry
Max. Solid Handling mm 46
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 9000
Max. Head m 24
Motor output kW 37,0
Phase / Voltage 3-phase / 400V / 50Hz
General
ø Discharge bore mm 80 - 150
Discharge Connection Threaded flange/Hose coupling
Pressure resistance m 40
Pumping Fluid
Type of Fluid Sand/Slurry
Temperature 0-40°C
Max. Solid Handling mm 30 - 46
Max. dry matter % 25
Max. PH Value 5-9
Max. Capacity l/min 1900 - 9000
Max. Head m 16.30 - 35
Pump
Components
Impeller Semi-open type impeller
Bearings Shielded ball bearings
Mechanical Seal Dual mechancial seal in oil bath
Material
Impeller Chromium iron casting
Agitator Chromium iron casting
Casing Grey iron casting EN-GJL-200
Suction Plate Chromium iron casting
Pump Body Structured Steel
Mechanical Seal Silicon Carbide
Motor
Motor output kW 5,5 - 37,0
Starting method direct online , star/delta
Type, Poles Induction motor, 4 poles, IP68, Induction motor, 6 poles, IP68
Insulation Insulation class F
Phase / Voltage 3-phase / 400V / 50Hz
r.p.m. 970 - 1468
Motor Protector (built-in) Circle thermal cut-out, Miniature protector
Rated Current 12.10 - 74
Material
Frame Grey iron casting EN-GJL-200
Shaft Chromium-molybdenum steel (DIN 1.7220)
Cable NSSHÖU 4C*2.5mm², NSSHÖU 4C*4.0mm², NSSHÖU 4C*6.0mm², NSSHÖU 4C*10mm²/3C*1.5mm², NSSHÖU 4C*10mm²/3C*1.5mm²; NSSHÖU (4C*10mm²)
Cable Length 20m
Others
Dry Weight Kg 160 - 800
Pressure Resistance max. 40m, max. 50m
Dimensions in mm:
W1: lowest running water level
  • GPN35.5
  • GPN411
  • GPN415
  • GPN622
  • GPN422
  • GPN837
ModelAA1BB1DHW1
GPN35.5487425449326390841290
GPN411617518500347452924315
GPN415617518500347452924315
GPN4227256255283355731102300
GPN6227256255283355721102300
GPN83710158508986157491606560

The GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole or 6-pole motor. It is equipped with a high-chromium cast iron agitator that mixes settled matter into suspension for pumping. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The side discharge, spiral design allows smoother passage of the sucked solid matters. The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air. The use of guide rail fitting system improves convenience in the facilities such as, iron works, ready-mixed concrete plants, and wastewater treatment plants where the pump is to be installed with a fixed discharge piping.
