TEW

Self-priming centrifugal, high-head pumps powered by Honda 4-stroke petrol engines. Designed for high pressure pumping of clean water for use in irrigation, dust suppression and firefighting. A two wheeled trolley is an optional extra.

Technical Data

  • Discharge bore mm: 50
  • Head max. m: 95
  • Capacity max. l/min: 480
  • Motor output kW: 6,3
  • Phases: Engine
  • Max. solid handling ø mm: 1

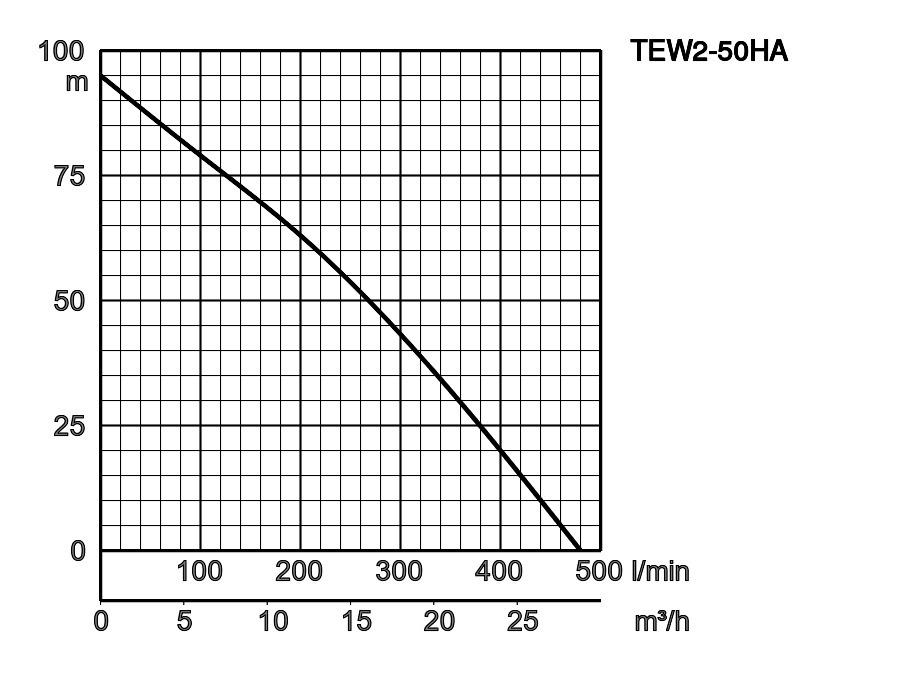

Performance curve
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
TEW2-50HA 50 Engine 6,3 95 480 1

Discharge bore mm 50
Phases Engine
Motor output kW 6,3
Head max. m 95
Capacity max. l/min 480
Max. solid handling ø mm 1
Pumping Fluid
Temperature 0-40°C
Type of Fluid Spring water, Rain water, Ground water, Sand carrying water
Motor
Brand Honda
Engine Model GX270
Fuel Petrol
Starting System Recoil Starter
Pump
Components
Impeller Semi-open type impeller
Material
Impeller Cast aluminium
Pump Body Cast Aluminium
Mechanical Seal Silicon Carbide
Others
Packing Measurment LxWxH in mm 680x490x580
Dry Weight 49,9
Included Accessories Hose couplings, Sealing washers, Hose clips, Strainer
Optional Accessories Trolley
Dimensions in mm:
W1: lowest running water level
  • TEW2-50HA

TEW2 are self-priming centrifugal, high-head pumps manufactured by Tsurumi and powered by Honda 4-stroke petrol engines. They are designed for high pressure pumping of clean water for use in irrigation, dust suppression and firefighting. TheTEW2-50HA feature three outlets (1 x 1½" and 2 x 1") to enable two or three people to use the pump at the same time. Two outlets have a blanking cap to maximise pressure and conserve water when not in use. The TEW2-50HA engine is electric start (with battery holder, but not battery) to ensure quick and effortless starting. They have rubber feet, or mounts, for engine noise and vibration absorption. Engines have the Oil Alert protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. The TEW2-50HA has an easy carry steel frame. To assist manual handling of the TEW2-50HA, a two wheeled trolley is available as an optional extra.
