Self-priming centrifugal, high-head pumps powered by Honda 4-stroke petrol engines. Designed for high pressure pumping of clean water for use in irrigation, dust suppression and firefighting. A two wheeled trolley is an optional extra.
| Model | Colour code curve | Inlet x Outlet Bore | Max. Solid Handling mm | Max. Capacity l/min | Max. Head m | Motor output kW | Brand | Engine Model | Fuel |
|---|---|---|---|---|---|---|---|---|---|

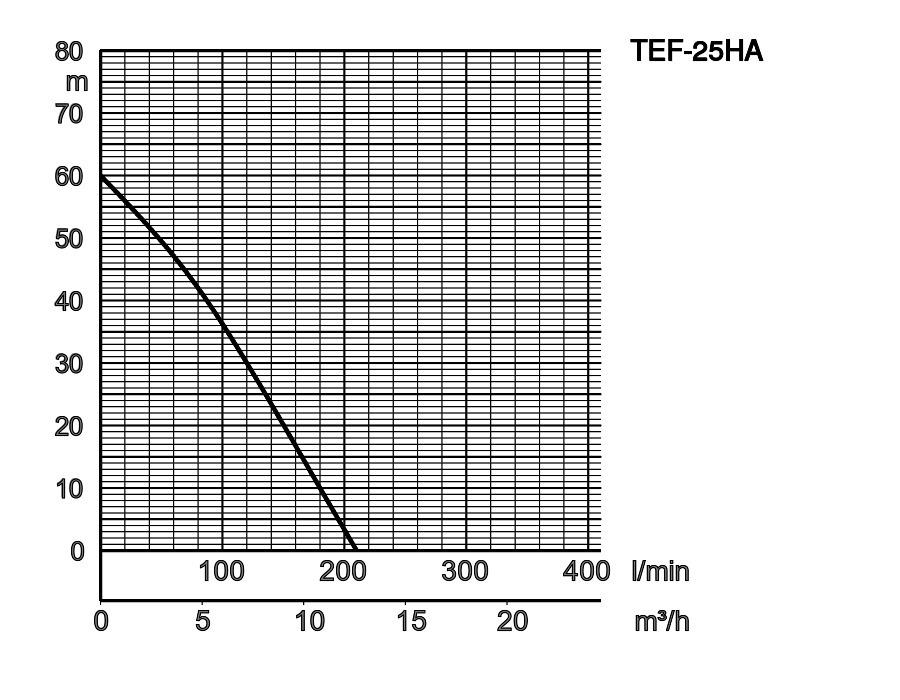

| TEF-25HA |
1
|
25x25 (1"x1") | 2 | 110 | 60 | 1,6 | Honda | GXH50 | Petrol |

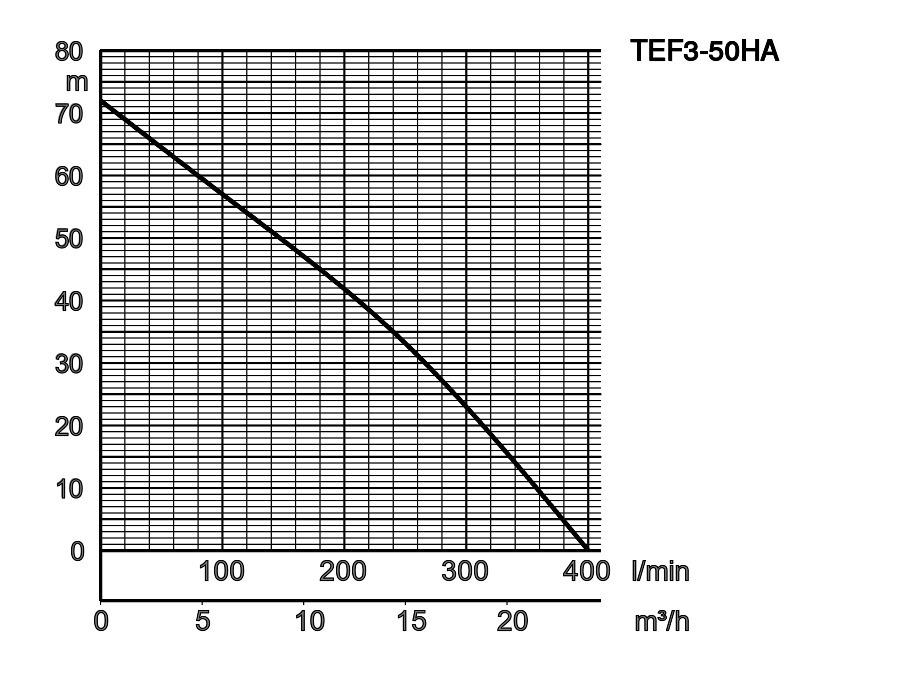

| TEF3-50HA |
2
|
50x25/25/40 (2"x1"/1"/1.5") | 1 | 400 | 75 | 3,6 | Honda | GX160 | Petrol |
| TEF4-50YD | 3 | 50x25/25/40 (2"x1"/1"/1.5") | 1 | 500 | 60 | 4,8 | Yanmar | L70 | Diesel |
| Inlet x Outlet Bore | 25x25 (1"x1") |
| Max. Solid Handling mm | 2 |
| Max. Capacity l/min | 110 |
| Max. Head m | 60 |
| Motor output kW | 1,6 |
| Brand | Honda |
| Engine Model | GXH50 |
| Fuel | Petrol |
| Inlet x Outlet Bore | 50x25/25/40 (2"x1"/1"/1.5") |
| Max. Solid Handling mm | 1 |
| Max. Capacity l/min | 400 |
| Max. Head m | 75 |
| Motor output kW | 3,6 |
| Brand | Honda |
| Engine Model | GX160 |
| Fuel | Petrol |
| Inlet x Outlet Bore | 50x25/25/40 (2"x1"/1"/1.5") |
| Max. Solid Handling mm | 1 |
| Max. Capacity l/min | 500 |
| Max. Head m | 60 |
| Motor output kW | 4,8 |
| Brand | Yanmar |
| Engine Model | L70 |
| Fuel | Diesel |
| Inlet x Outlet Bore | 25x25 (1"x1"), 50x25/25/40 (2"x1"/1"/1.5") |
|---|
| Type of Fluid | Clear Water |
|---|---|
| Temperature | 0-40°C |
| Max. Solid Handling mm | 1 - 2 |
| Max. Capacity l/min | 110 - 500 |
| Max. Head m | 60 - 75 |
| Impeller | Cast aluminium |
|---|---|
| Casing | Cast Aluminium |
| Mechanical Seal | Carbon Ceramic |
| Motor output kW | 1,6 - 4,8 |
|---|---|
| Brand | Honda, Yanmar |
| Engine Model | GX160, GXH50, L70 |
| Fuel | Diesel, Petrol |
| Fuel Tank Capacity | 0.77 L, 3.1 L, 3.3 L |
| Starting System | Recoil Starter |
| Dry Weight Kg | 11 - 56 |
|---|---|
| Packing Measurment LxWxH in mm | 410x310x455, 545x410x485, 710x520x645 |
TEF are self-priming centrifugal, high-head pumps manufactured by Tsurumi and powered by Honda 4-stroke petrol engines. They are designed for high pressure pumping of clean water for use in irrigation, dust suppression and firefighting. The TEF3- 50HA models feature three outlets (1 x 1½" and 2 x 1") to enable two or three people to use the pump at the same time. Two outlets have a blanking cap to maximise pressure and conserve water when not in use. All models have rubber feet, or mounts, for engine noise and vibration absorption. Engines have the Oil Alert protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. TEF3-50HA have easy carry steel frames, while the TEF-25HA has a carry handle and base frame. To assist manual handling of the TEF3-50HA, a two wheeled trolley is available as an optional extra.
