TED

Self-priming, centrifugal full-trash pumps powered by Honda 4-stroke, petrol engines. They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle.

Technical Data

  • Discharge bore mm: 75,50,100
  • Head max. m: 23,0 - 30,0
  • Capacity max. l/min: 800 - 2000
  • Motor output kW: 4,0 - 7,1
  • Phases: Engine
  • Max. solid handling ø mm: 25 - 35

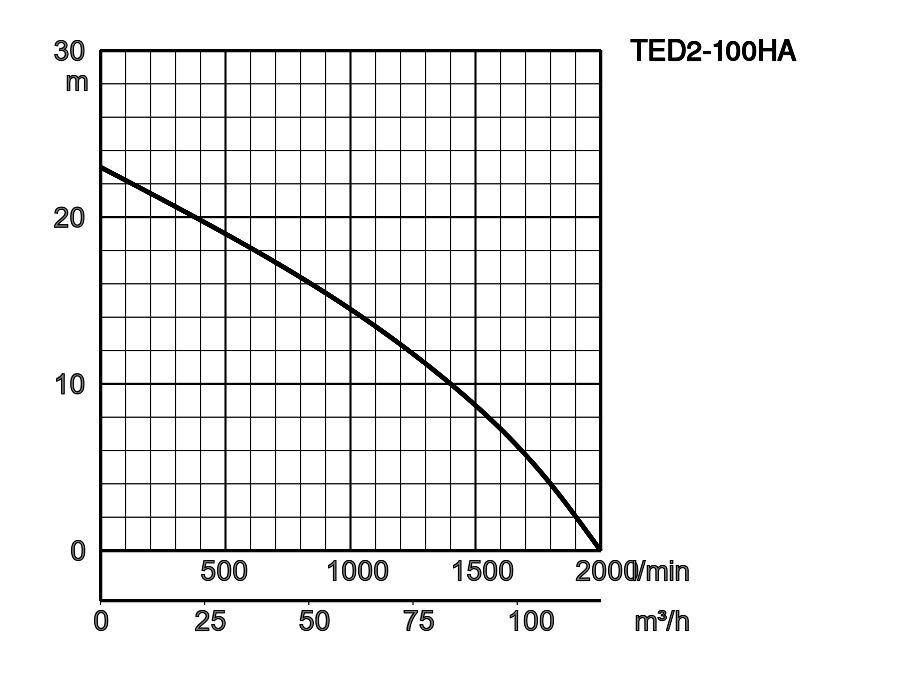

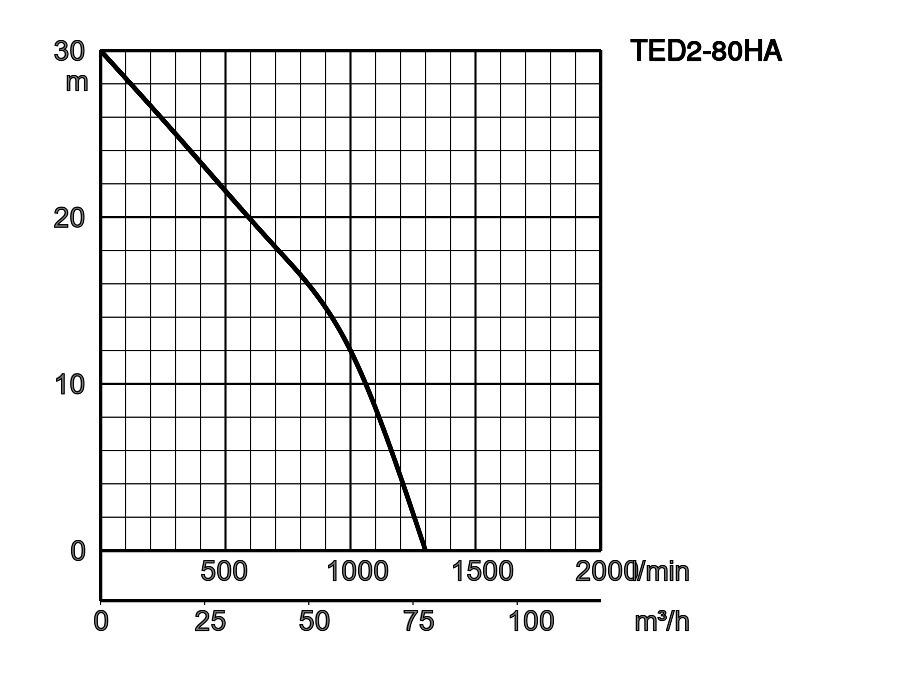

Performance curve
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
TED2-100HA 100 Engine 7,1 23,0 2000 35
TED2-50HA 50 Engine 4,0 26,0 800 25
TED2-80HA 75 Engine 5,3 30,0 1300 35

Discharge bore mm 100
Phases Engine
Motor output kW 7,1
Head max. m 23,0
Capacity max. l/min 2000
Max. solid handling ø mm 35

Discharge bore mm 50
Phases Engine
Motor output kW 4,0
Head max. m 26,0
Capacity max. l/min 800
Max. solid handling ø mm 25

Discharge bore mm 75
Phases Engine
Motor output kW 5,3
Head max. m 30,0
Capacity max. l/min 1300
Max. solid handling ø mm 35
General
Inlet x Outlet Bore 100x100 (4x4), 50x50 (2x2), 75x75 (3x3)
Pump
Components
Impeller Semi-open type impeller
Material
Impeller Chromium iron casting
Pump Body Cast Aluminium
Mechanical Seal Silicon Carbide
Others
Packing Measurment LxWxH in mm 480x725x610, 430x570x400, 485x670x610
Dry Weight 69, 33, 59
Included Accessories Hose couplings, Sealing washers, Hose clips, Strainer
Optional Accessories Trolley
Pumping Fluid
Temperature 0-40°C
Type of Fluid Spring water, Rain water, Ground water, Sand carrying water
Motor
Brand Honda
Engine Model GX340, GX160, GX240
Fuel Petrol
Starting System Recoil Starter
Dimensions in mm:
W1: lowest running water level
  • TED2-50HA
  • TED2-80HA
  • TED2-100HA

TED are powered by Honda 4-stroke, recoil start, petrol engines. They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. All models have easy-carry frames, rubber feet (for engine noise and vibration absorption) and wing nuts for easy chamber access. Capable of pumping large volumes of water that contains sand, silt and suspended large solids, they are good for site drainage, land drainage, liquid waste removal, sewage and flood defence. A two wheeled trolley is also available as an optional extra.
