TE-HA

Self-priming centrifugal, high-head pumps powered by Honda 4-stroke petrol engines. Designed for high pressure pumping of clean water for use in irrigation, dust suppression and firefighting. A two wheeled trolley is an optional extra.

Technical Data

  • Discharge bore mm: 100,25,50,75
  • Head max. m: 28,0 - 40,0
  • Capacity max. l/min: 130 - 1800
  • Motor output kW: 1,1 - 5,9
  • Phases: Engine
  • Max. solid handling ø mm: 5 - 6

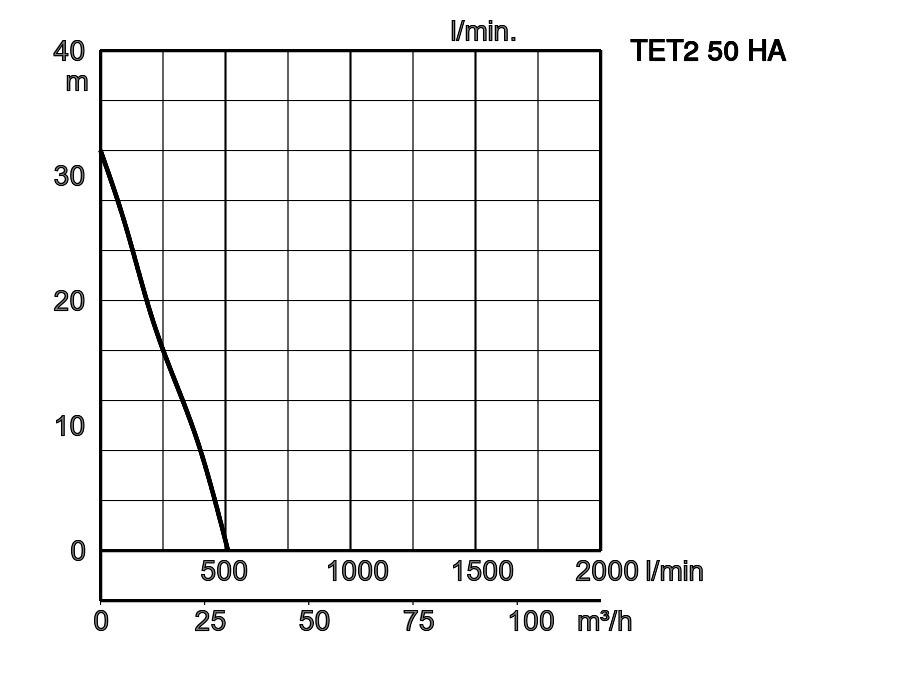

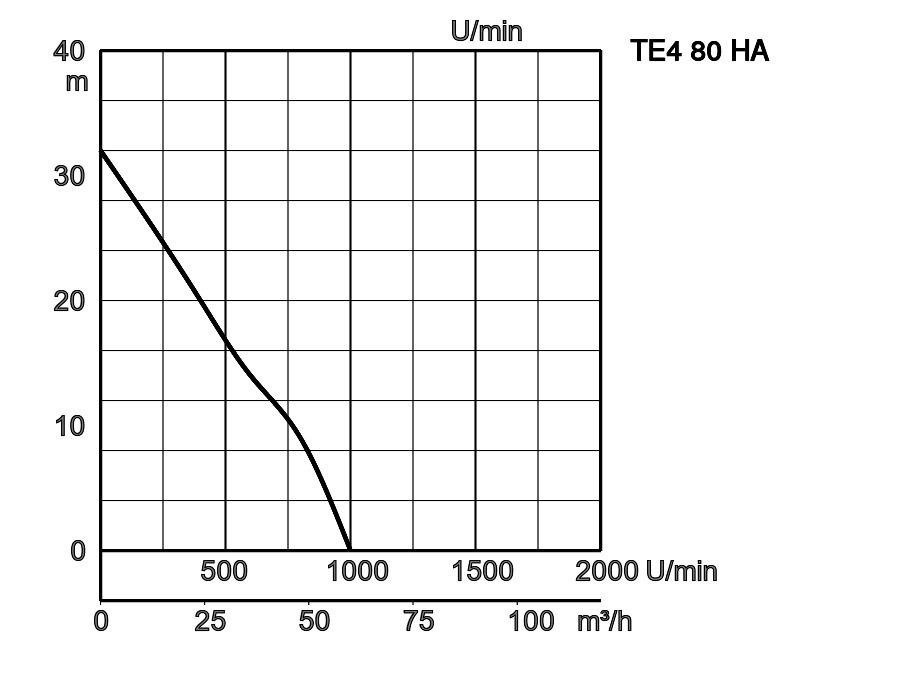

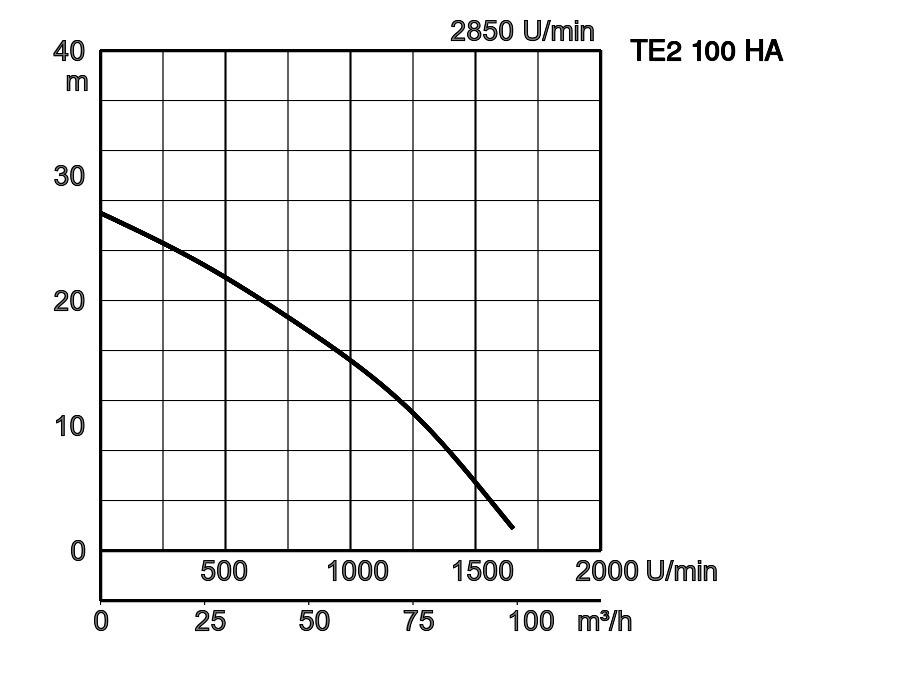

Performance curve
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
TE2 100 HA 100 Engine 5,9 28,0 1800 6
TET2 50 HA 50 Engine 2,9 32,0 520 6
TE4 80 HA 75 Engine 4,0 32,0 1000 6
TEM-25H 25 Engine 1,1 40,0 140 5
TE2-25H 25 Engine 1,1 35,0 130 5

Discharge bore mm 100
Phases Engine
Motor output kW 5,9
Head max. m 28,0
Capacity max. l/min 1800
Max. solid handling ø mm 6

Discharge bore mm 50
Phases Engine
Motor output kW 2,9
Head max. m 32,0
Capacity max. l/min 520
Max. solid handling ø mm 6

Discharge bore mm 75
Phases Engine
Motor output kW 4,0
Head max. m 32,0
Capacity max. l/min 1000
Max. solid handling ø mm 6

Discharge bore mm 25
Phases Engine
Motor output kW 1,1
Head max. m 40,0
Capacity max. l/min 140
Max. solid handling ø mm 5

Discharge bore mm 25
Phases Engine
Motor output kW 1,1
Head max. m 35,0
Capacity max. l/min 130
Max. solid handling ø mm 5
General
Inlet x Outlet Bore 100x100 (4x4), 50x50 (2x2), 75x75 (3x3), 25x25 (1x1)
Pump
Components
Impeller Semi-open type impeller
Material
Impeller Grey iron casting, Cast aluminium
Pump Body Cast Aluminium
Mechanical Seal Silicon Carbide
Others
Dry Weight 47 kg, 22 kg, 27 kg, 5 kg, 5,9 kg
Packing Weight 49 kg
Packing Measurment LxWxH in mm 650x465x615, 365x470x350, 375x527x420, 215x340x270, 220x355x350
Included Accessories Hose couplings, Sealing washers, Hose clips, Strainer
Optional Accessories Trolley
Pumping Fluid
Temperature 0-40°C
Type of Fluid Spring water, Rain water, Ground water, Sand carrying water
Motor
Brand Honda
Engine Model GX240, GX120, GX160, GX25
Displacement 242 cm³
Max Output kW (PS) 5,8 (8,0)
Fuel Petrol
Fuel Tank Capacity 6 L, 3.6 L, 1 L
Starting System Recoil Starter
Dimensions in mm:
W1: lowest running water level
  • TET2 50 HA
  • TE2 100 HA
  • TE4 80 HA
  • TEM-25H
  • TE2-25H

TE-H(A) are self-priming, centrifugal pumps manufactured by Tsurumi and powered by Honda 4-stroke, recoil start, petrol engines.

TEM-25H and TE2-25H models feature engines with a rotary slinger lubrication device, to prevent damage from inadequate lubrication during use at an angle. Both models have easy-carry handles and rubber feet on the base stand, for engine noise and vibration absorption. Capable of high heads, they are good for irrigation and dust suppression, but with being light and compact they are also useful for general drainage, transfer and flood defence. They will pump clean and dirty water.

TET2-50HA, TE4-80HA and TE2-100HA have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. All models have easy-carry frames and rubber feet, for engine noise and vibration absorption. Capable of pumping large volumes of clean and dirty water they are good for site drainage, land drainage, transfer and flood defence. To assist manual handling of the model TE2-100HA, a two wheeled site trolley is available as an optional extra.
