TDS

Self-priming, centrifugal semi-trash pumps, with tool access pump casing, powered by Honda 4-stroke petrol engines. Capable of pumping clean & dirty water, with suspended solids, they are good for site drainage and liquid waste removal.

Technical Data

  • Discharge bore mm: 50,75
  • Head max. m: 23,0
  • Capacity max. l/min: 780 - 1150
  • Motor output kW: 2,9 - 4,0
  • Phases: Engine
  • Max. solid handling ø mm: 20

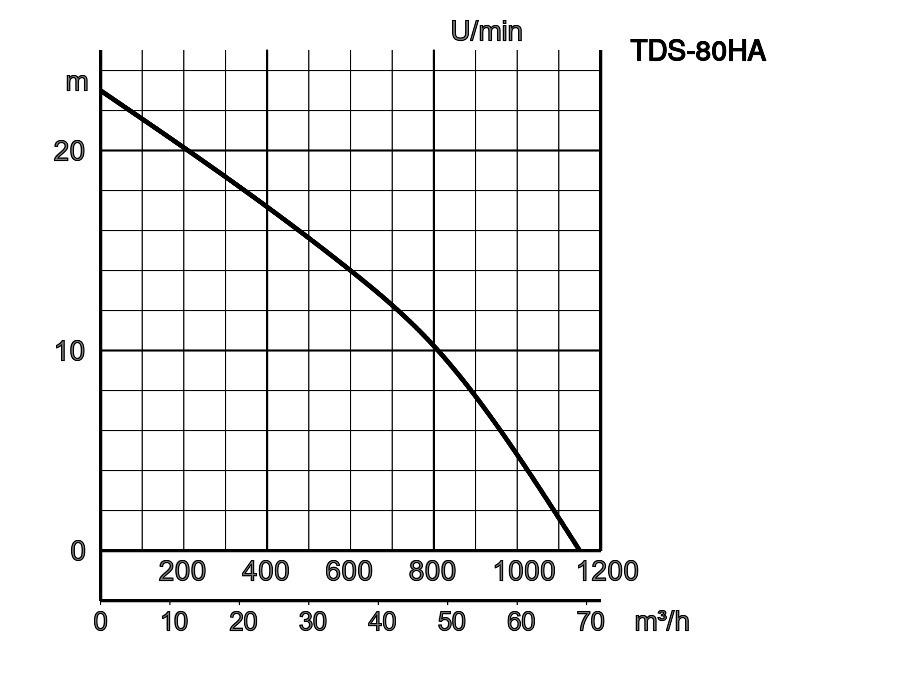

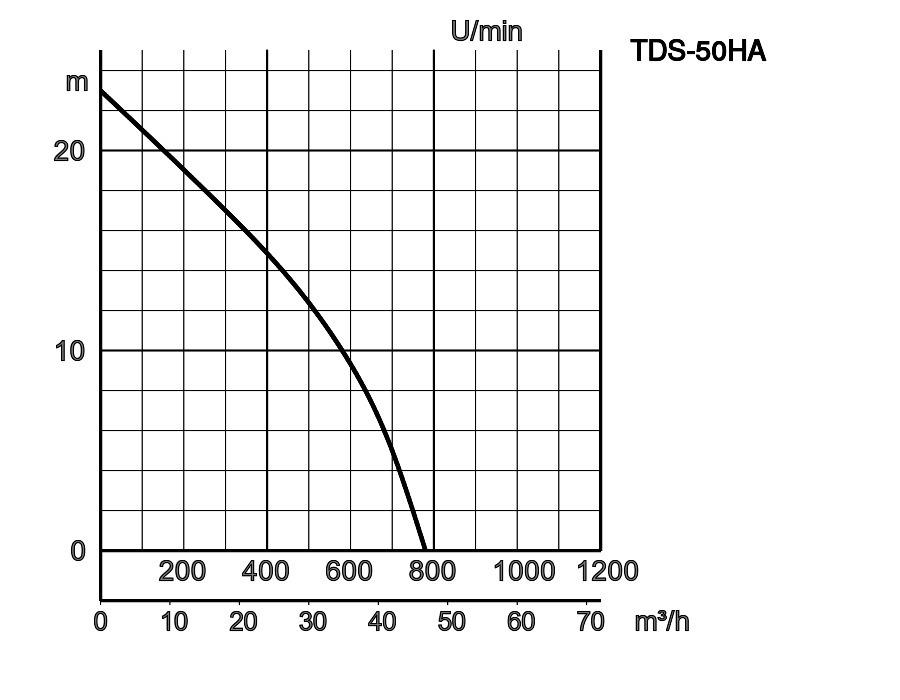

Performance curve
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
TDS-50HA 50 Engine 2,9 23,0 780 20
TDS-80HA 75 Engine 4,0 23,0 1150 20

Discharge bore mm 50
Phases Engine
Motor output kW 2,9
Head max. m 23,0
Capacity max. l/min 780
Max. solid handling ø mm 20

Discharge bore mm 75
Phases Engine
Motor output kW 4,0
Head max. m 23,0
Capacity max. l/min 1150
Max. solid handling ø mm 20
General
Inlet x Outlet Bore 50x50 (2x2), 75x75 (3x3)
Pump
Components
Impeller Semi-open type impeller
Material
Impeller Grey iron casting
Pump Body Cast Aluminium
Mechanical Seal Silicon Carbide
Others
Dry Weight 24, 27 kg
Packing Measurment LxWxH in mm 345x470x420, 370x525x420
Included Accessories Hose couplings, Sealing washers, Hose clips, Strainer
Optional Accessories Trolley
Pumping Fluid
Temperature 0-40°C
Type of Fluid Spring water, Rain water, Ground water, Sand carrying water
Motor
Brand Honda
Engine Model GX120, GX160
Fuel Petrol
Starting System Recoil Starter
Dimensions in mm:
W1: lowest running water level
  • TDS-50HA
  • TDS-80HA

TDS are self-priming, centrifugal semi-trash pumps, with tool access pump casing, manufactured by Tsurumi and powered by Honda 4-stroke, recoil start, petrol engines. They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or while at an angle. All models have easy-carry frames, rubber feet (for engine noise and vibration absorption) and elongated bolts for pump chamber access. Capable of pumping clean and dirty water, with suspended solids, they are good for site drainage, land drainage, liquid waste removal, sewage and flood defence.
