TD

Diaphragm pumps powered by Honda 4-stroke petrol engines. Priming is automatic & indefinite dry running is possible. Capable of pumping water containing sand, silt and suspended large solids, they are good for site drainage & liquid waste removal.

Technical Data

  • Discharge bore mm: 80,50
  • Head max. m: 15,0 - 17,0
  • Capacity max. l/min: 120 - 240
  • Motor output kW: 2,9 - 4,0
  • Phases: Engine
  • Max. solid handling ø mm: 30

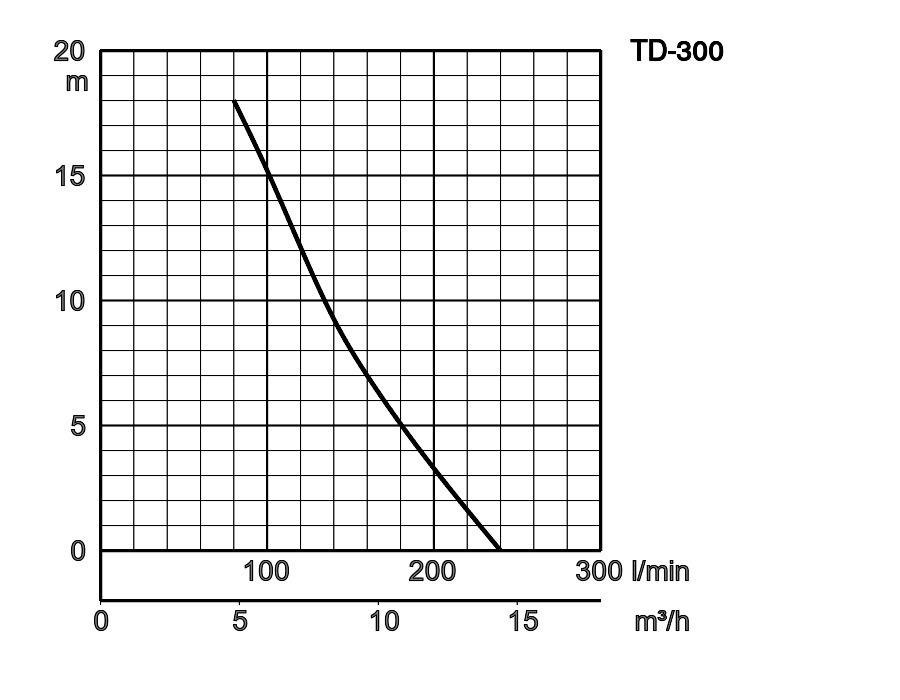

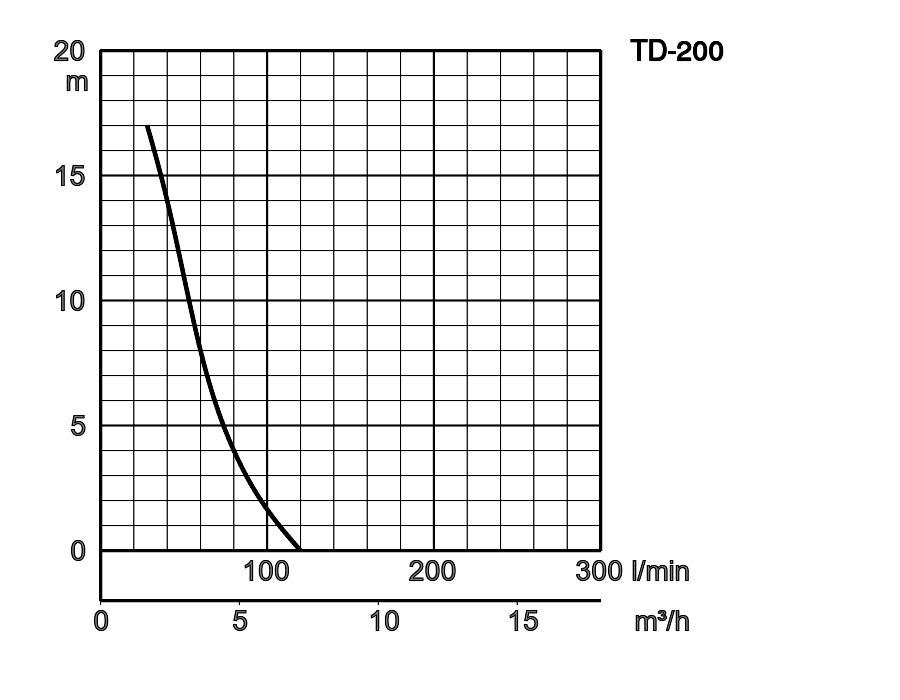

Performance curve
Specifications

Model Colour code curve Discharge bore mm Phases Motor output kW Head max. m Capacity max. l/min Max. solid handling ø mm
TD-200 50 Engine 2,9 17,0 120 30
TD-300 80 Engine 4,0 15,0 240 30

Discharge bore mm 50
Phases Engine
Motor output kW 2,9
Head max. m 17,0
Capacity max. l/min 120
Max. solid handling ø mm 30

Discharge bore mm 80
Phases Engine
Motor output kW 4,0
Head max. m 15,0
Capacity max. l/min 240
Max. solid handling ø mm 30
General
Inlet x Outlet Bore 50x50 (2x2), 80x80 (3x3)
Pump
Components
Impeller Semi-open type impeller
Material
Impeller Grey iron casting
Pump Body Cast Aluminium
Casing Cast Aluminium
Mechanical Seal Silicon Carbide
Others
Dry Weight 39, 46
Packing Measurment LxWxH in mm 610x620x510, 740x660x510
Included Accessories Hose couplings, Sealing washers, Hose clips, Strainer
Optional Accessories Trolley
Pumping Fluid
Temperature 0-40°C
Type of Fluid Spring water, Rain water, Ground water, Sand carrying water
Motor
Brand Honda
Engine Model GX120, GX160
Fuel Petrol
Starting System Recoil Starter
Dimensions in mm:
W1: lowest running water level
  • TD-200
  • TD-300

TD are diaphragm pumps manufactured by Tsurumi and powered by Honda 4-stroke, recoil start, petrol engines. Priming is automatic and indefinite dry running is possible.

They have the Oil Alert engine protection system fitted to prevent damage from inadequate lubrication during use with low oil, or at an angle, and have easy-carry frames. Both models have rubber mounts, for engine noise and vibration absorption. Capable of pumping water containing sand, silt and suspended large solids, they are good for site drainage, land drainage, liquid waste removal, sewage and flood defence. They are widely used by contractors, utilities and regularly found on hire fleets. Optional extras are two wheeled site trolleys and quick release cam coupling kits, with heavy duty hose clamps.
