Three-phase, drainage pumps, constructed in high grade grey cast iron, with brilliant performance in harsh operating conditions. Maintenance is straightforward, replacement of parts is simple, without the need for special tools or a workshop.

Technical Data

  • ø Discharge bore mm: 50 - 150
  • Type of Fluid: Drainage
  • Max. Solid Handling mm: 8.50 - 20
  • Max. dry matter %: 10
  • Max. PH Value: 5-9
  • Max. Capacity l/min: 430 - 4000
  • Max. Head m: 14.40 - 71
  • Motor output kW: 1,5 - 22,0
  • Phase / Voltage: 3-phase / 400V / 50Hz

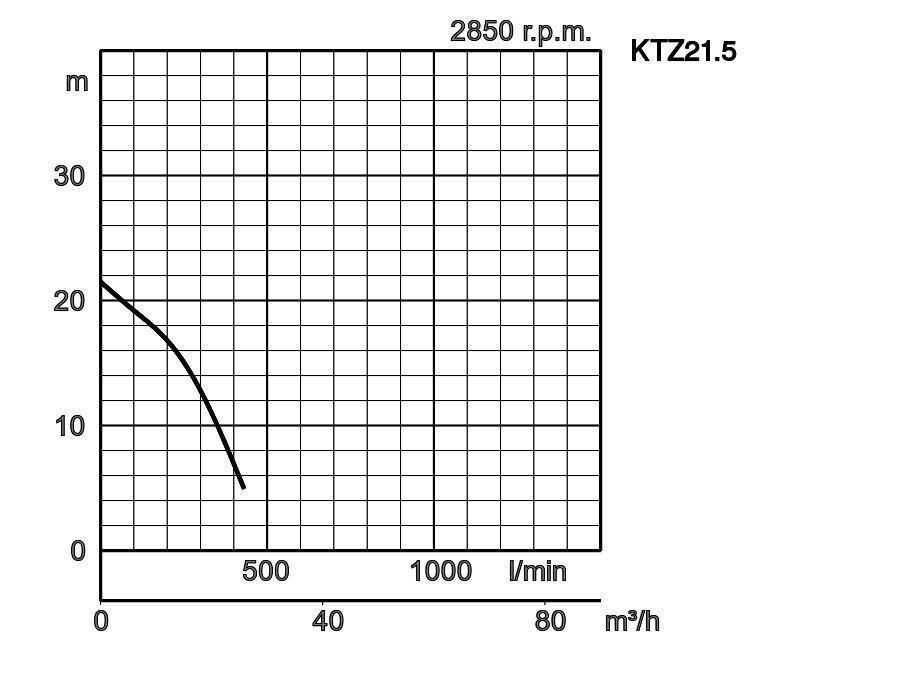

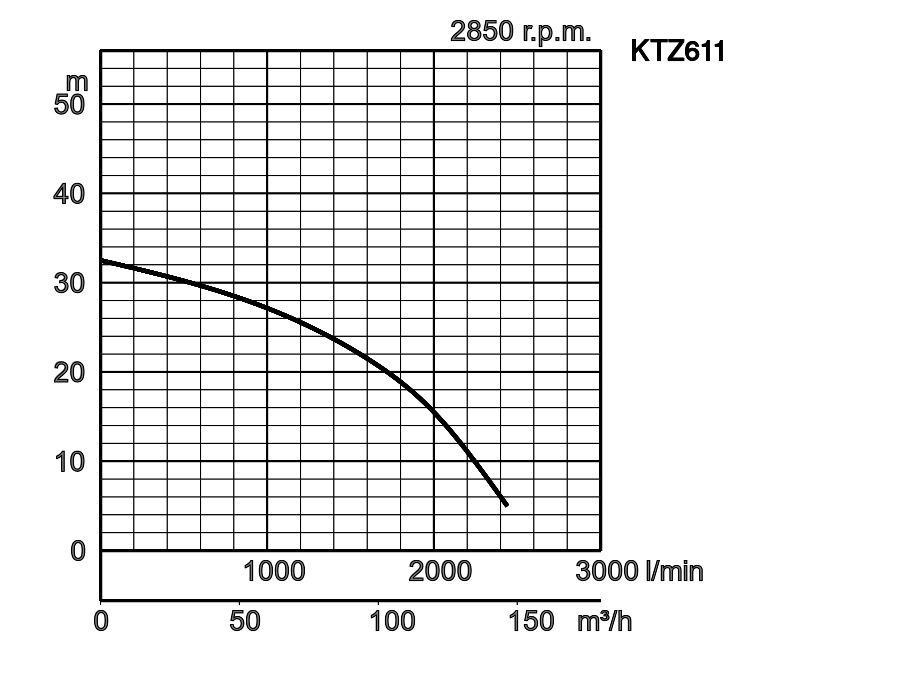

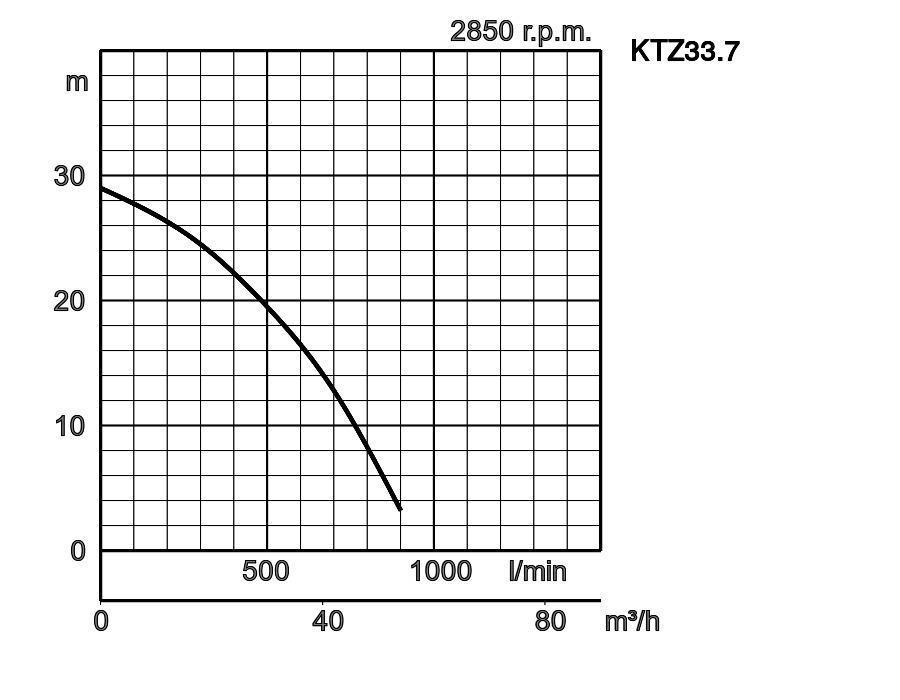

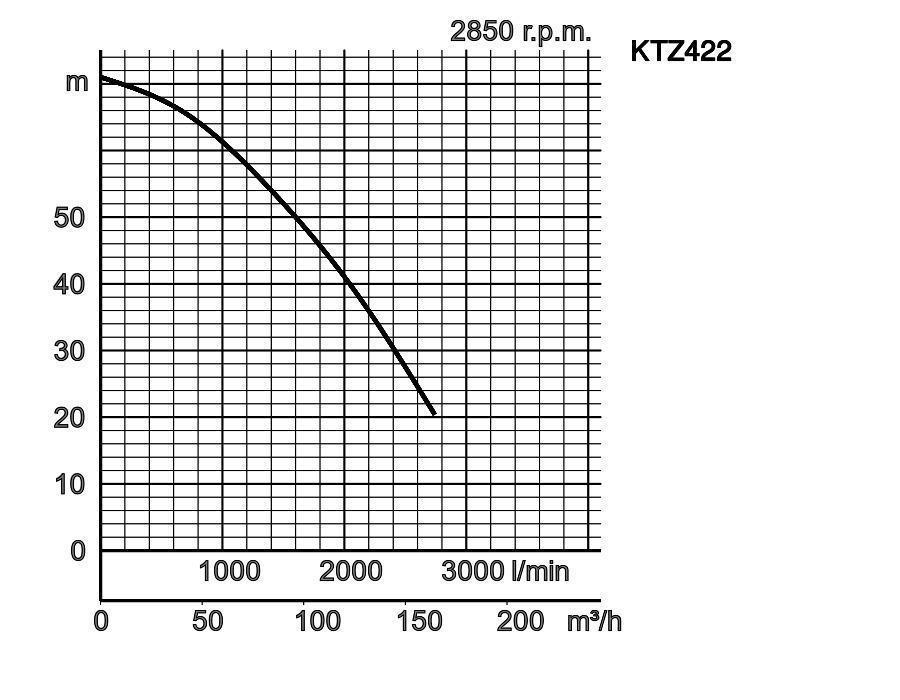

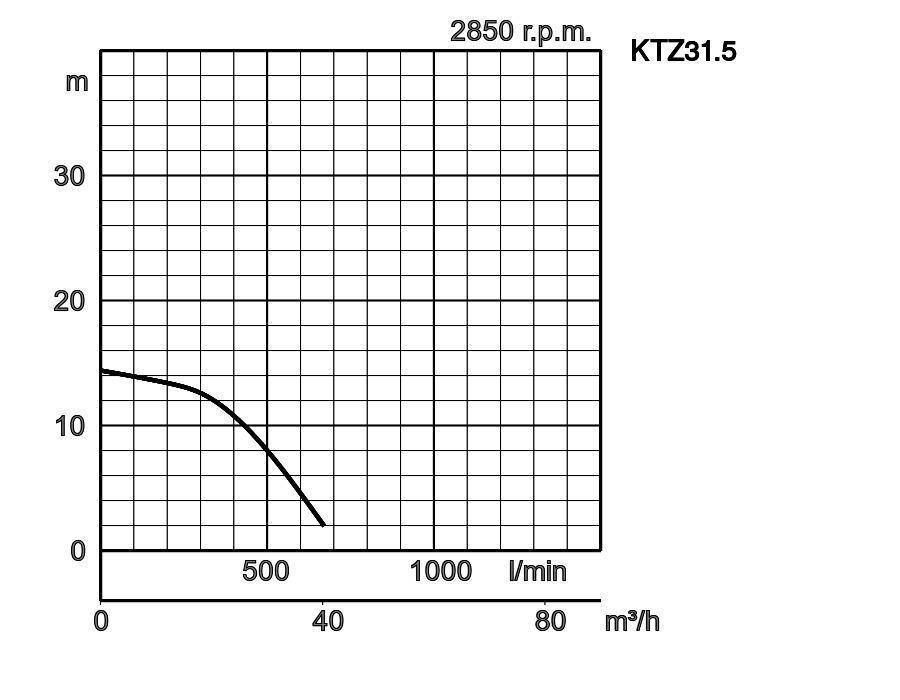

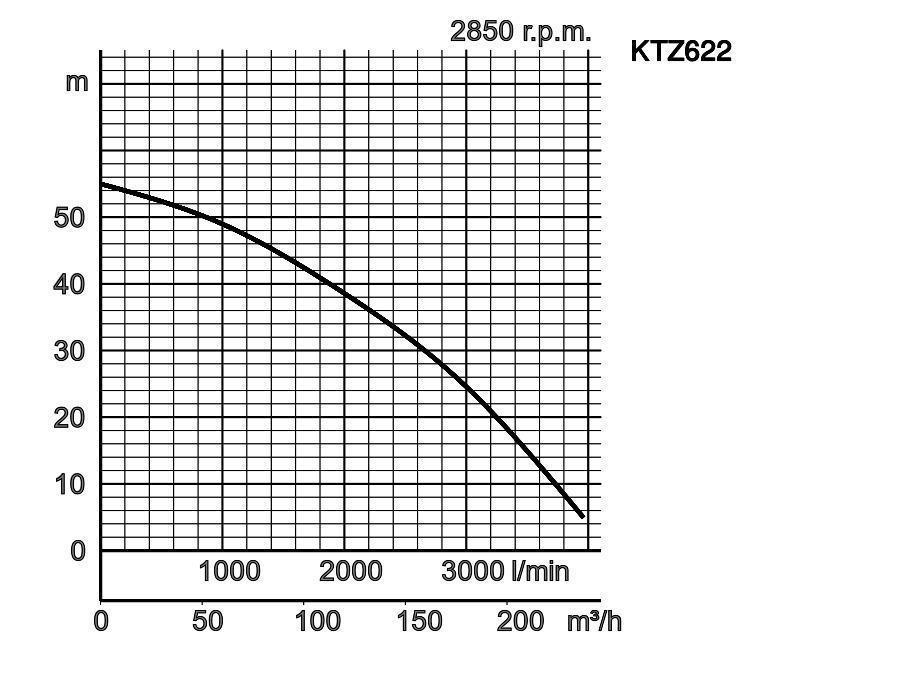

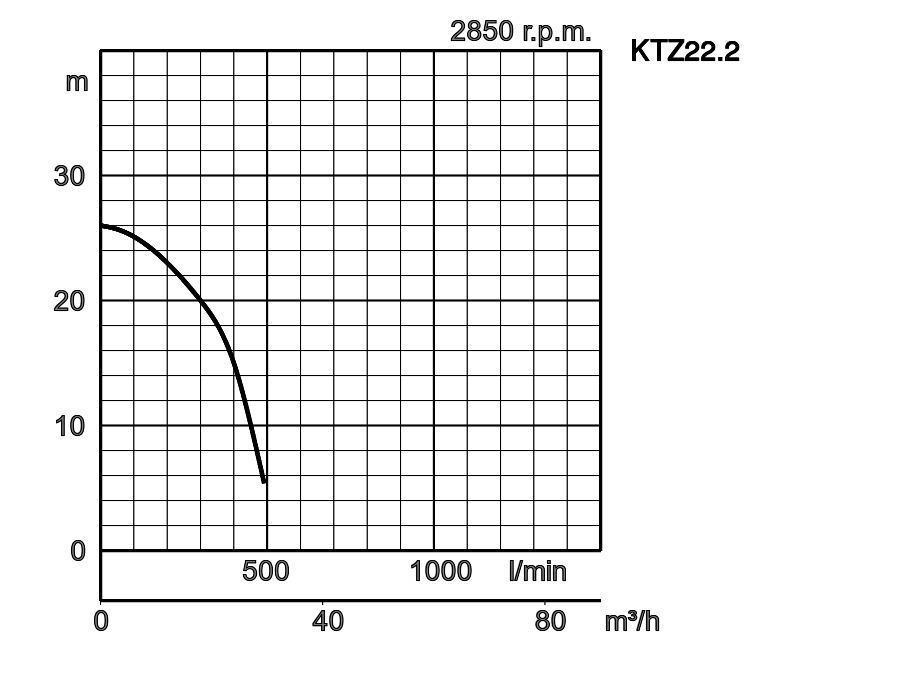

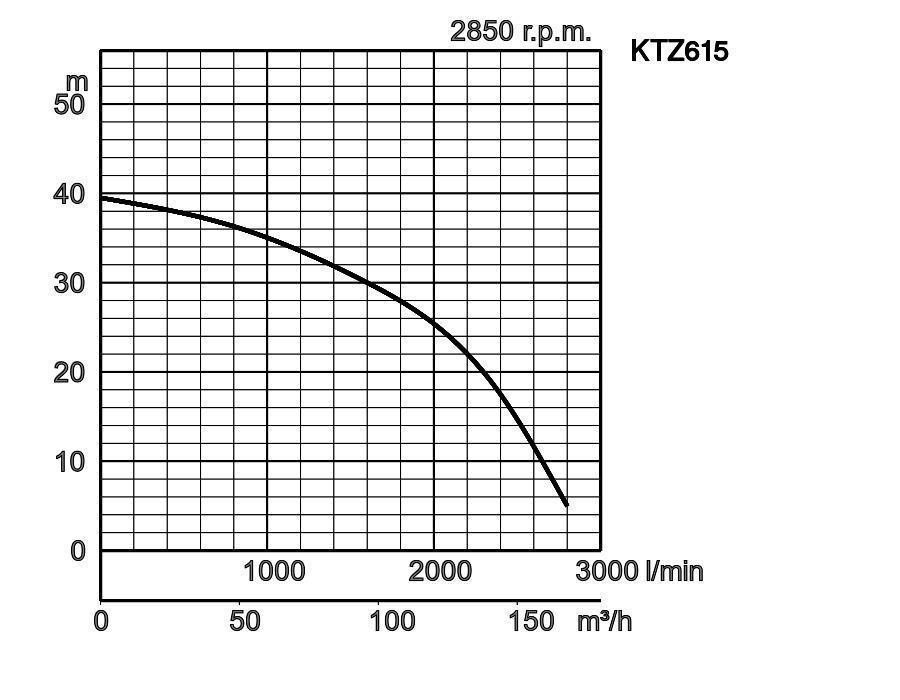

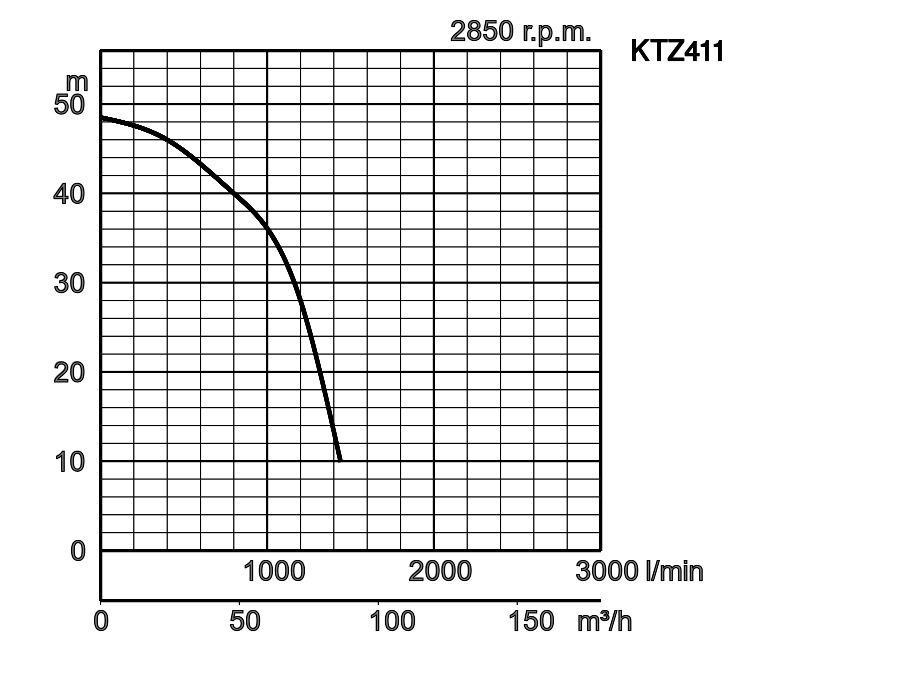

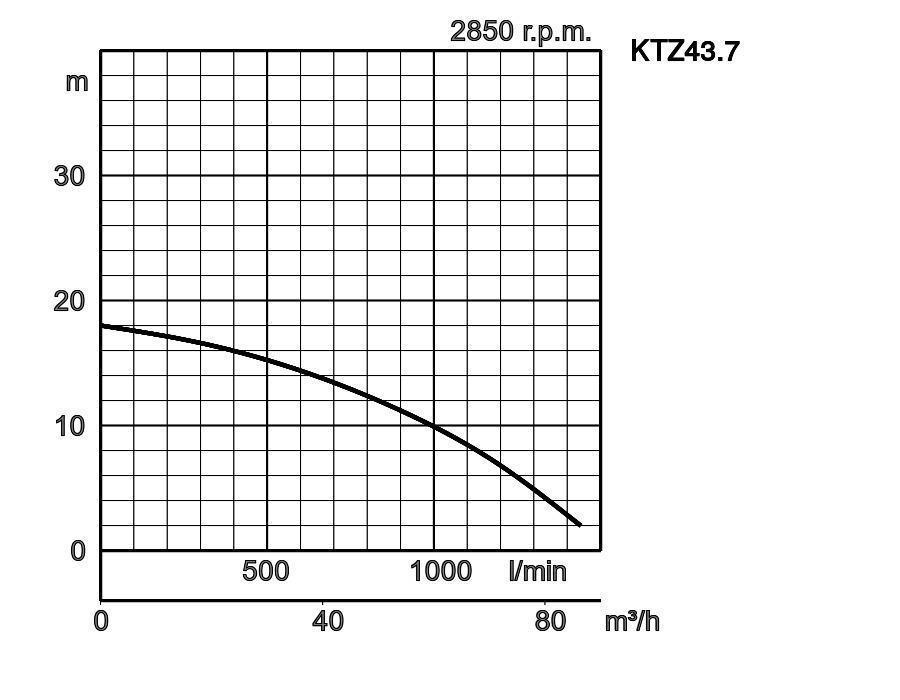

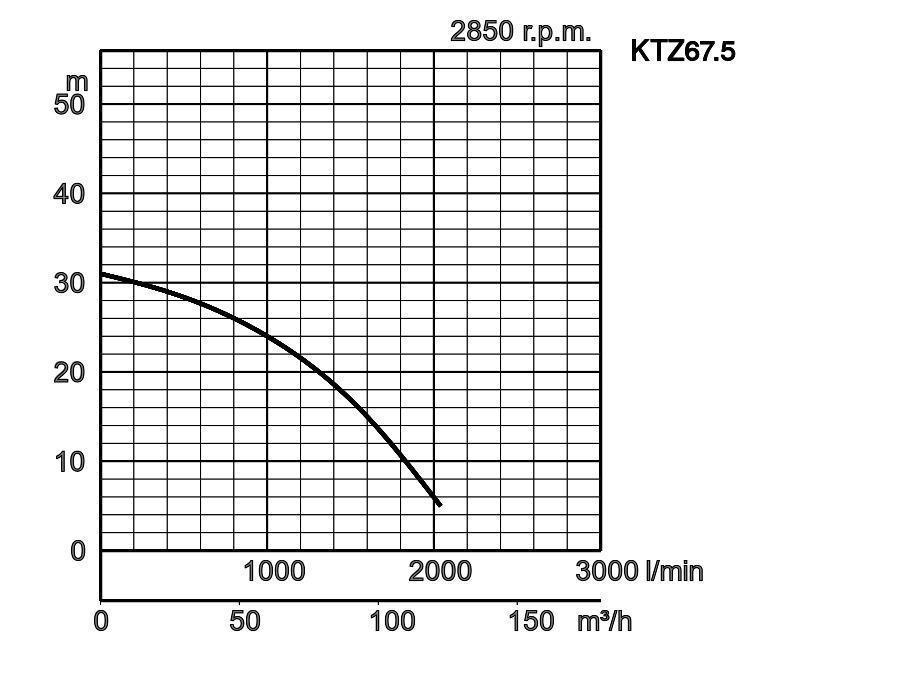

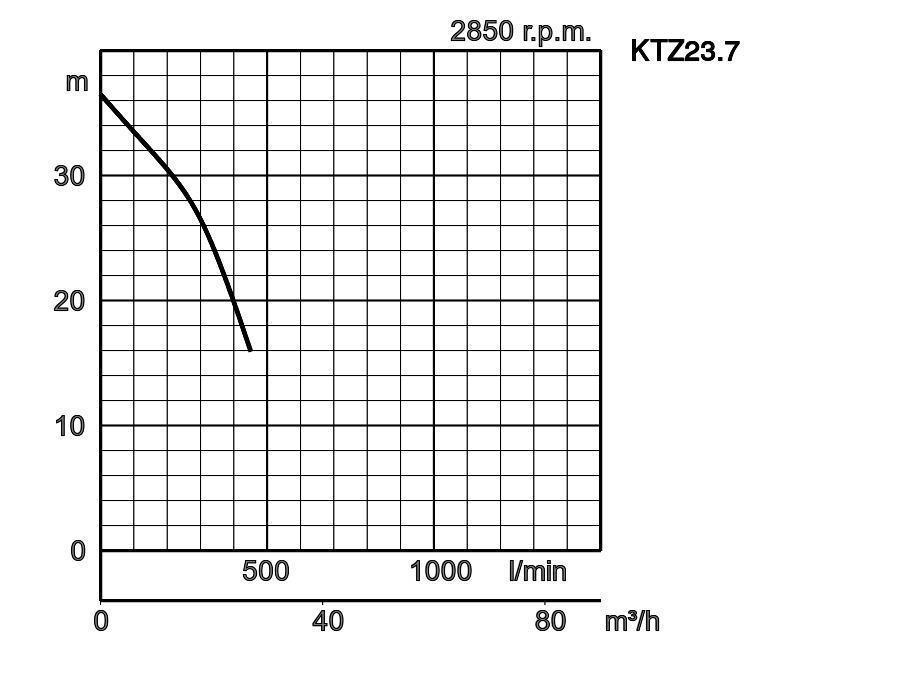

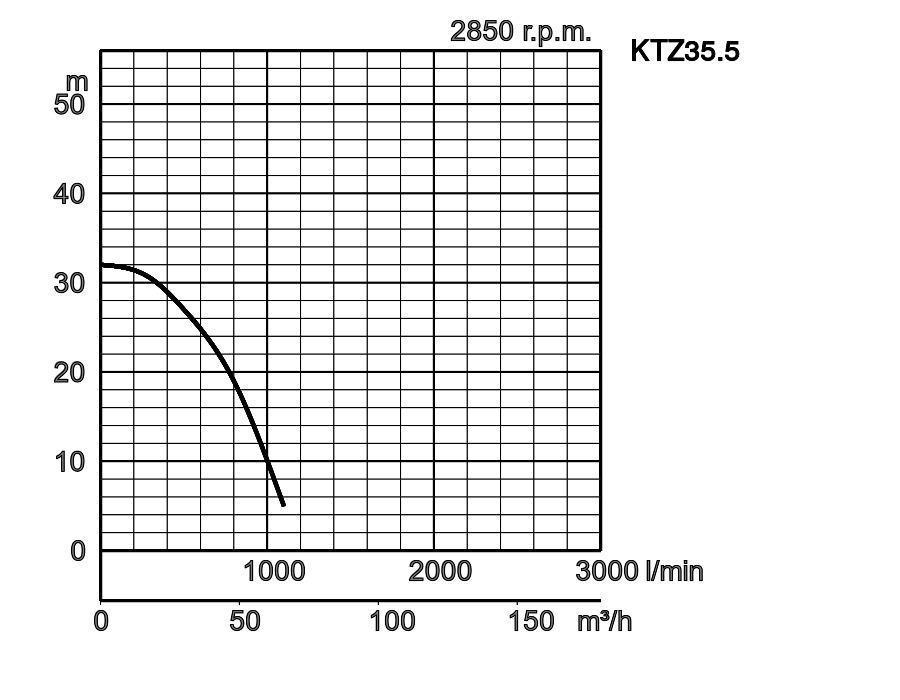

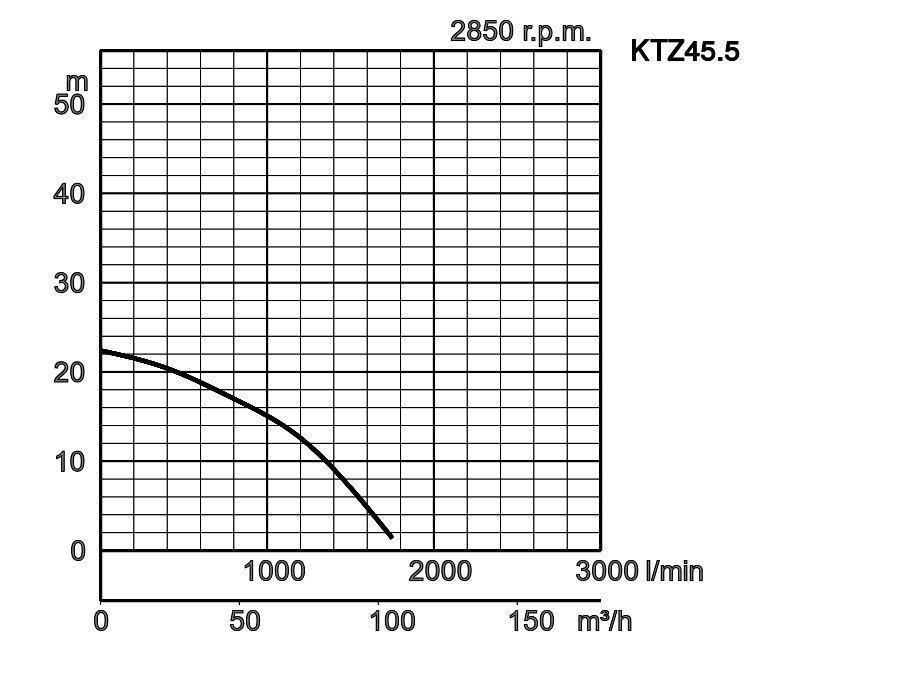

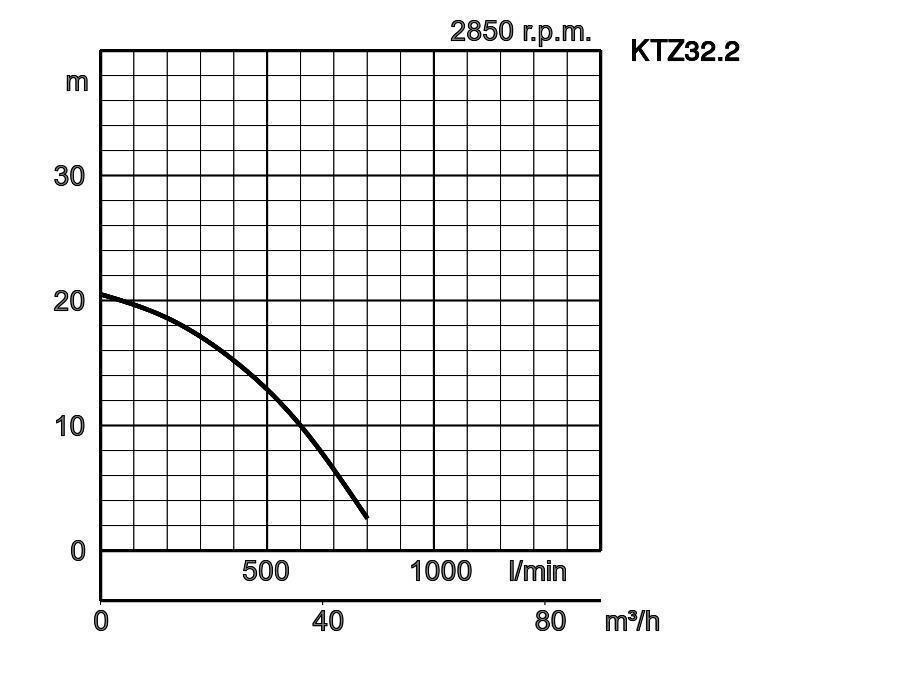

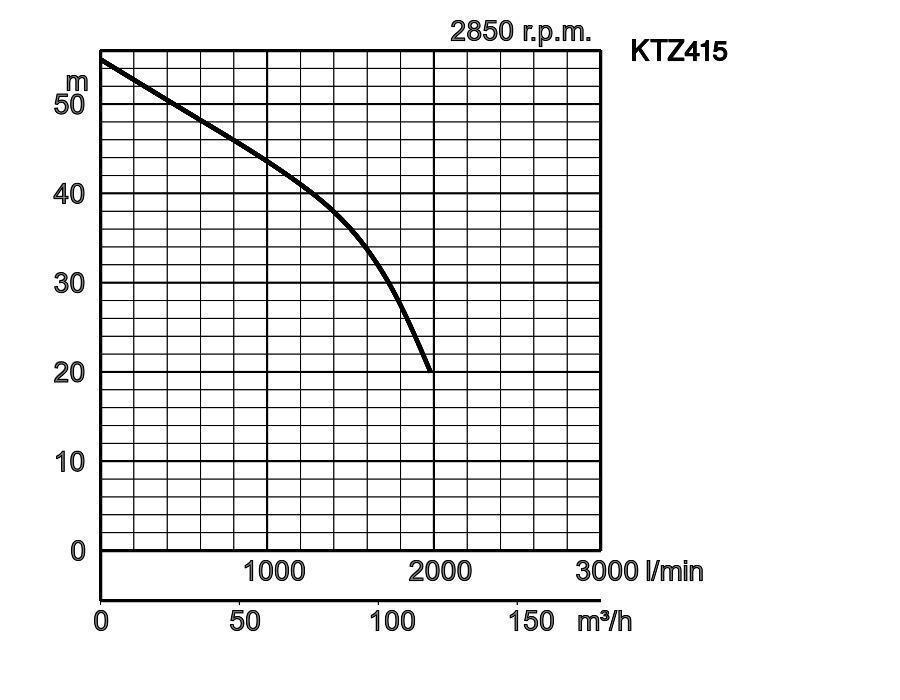

Performance curve
1 O
2 O
Specifications

Model Colour code curve ø Discharge bore mm Type of Fluid Max. Solid Handling mm Max. dry matter % Max. PH Value Max. Capacity l/min Max. Head m Motor output kW Phase / Voltage
KTZ21.5
1
50 Drainage 8.50 10 5-9 430 21.5 1,5 3-phase / 400V / 50Hz
KTZ31.5
2
80 Drainage 8.50 10 5-9 670 14.40 1,5 3-phase / 400V / 50Hz
KTZ22.2
3
50 Drainage 8.50 10 5-9 500 26 2,2 3-phase / 400V / 50Hz
KTZ32.2
4
80 Drainage 8.50 10 5-9 800 20.40 2,2 3-phase / 400V / 50Hz
KTZ23.7
5
50 Drainage 8.50 10 5-9 450 36.50 3,7 3-phase / 400V / 50Hz
KTZ33.7
6
80 Drainage 8.50 10 5-9 900 29 3,7 3-phase / 400V / 50Hz
KTZ43.7
7
100 Drainage 8.50 10 5-9 1440 18 3,7 3-phase / 400V / 50Hz
KTZ35.5
8
80 Drainage 8.50 10 5-9 1100 32 5,5 3-phase / 400V / 50Hz
KTZ45.5
9
100 Drainage 8.50 10 5-9 1740 22.50 5,5 3-phase / 400V / 50Hz
KTZ47.5
10
80 Drainage 12 10 5-9 1400 40 7,5 3-phase / 400V / 50Hz
KTZ67.5
11
150 Drainage 20 10 5-9 2030 31 7,5 3-phase / 400V / 50Hz
KTZ411
12
100 Drainage 12 10 5-9 1440 48.50 11,0 3-phase / 400V / 50Hz
KTZ611
13
150 Drainage 20 10 5-9 2440 32.50 11,0 3-phase / 400V / 50Hz
KTZ415
14
100 Drainage 12 10 5-9 1980 55 15,0 3-phase / 400V / 50Hz
KTZ615
15
150 Drainage 20 10 5-9 2800 39.50 15,0 3-phase / 400V / 50Hz
KTZ422
16
100 Drainage 8.50 10 5-9 2750 71 22,0 3-phase / 400V / 50Hz
KTZ622
17
150 Drainage 12 10 5-9 4000 55 22,0 3-phase / 400V / 50Hz

ø Discharge bore mm 50
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 430
Max. Head m 21.5
Motor output kW 1,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 670
Max. Head m 14.40
Motor output kW 1,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 50
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 500
Max. Head m 26
Motor output kW 2,2
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 800
Max. Head m 20.40
Motor output kW 2,2
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 50
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 450
Max. Head m 36.50
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 900
Max. Head m 29
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1440
Max. Head m 18
Motor output kW 3,7
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1100
Max. Head m 32
Motor output kW 5,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1740
Max. Head m 22.50
Motor output kW 5,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 80
Type of Fluid Drainage
Max. Solid Handling mm 12
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1400
Max. Head m 40
Motor output kW 7,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Drainage
Max. Solid Handling mm 20
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 2030
Max. Head m 31
Motor output kW 7,5
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Drainage
Max. Solid Handling mm 12
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1440
Max. Head m 48.50
Motor output kW 11,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Drainage
Max. Solid Handling mm 20
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 2440
Max. Head m 32.50
Motor output kW 11,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Drainage
Max. Solid Handling mm 12
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 1980
Max. Head m 55
Motor output kW 15,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Drainage
Max. Solid Handling mm 20
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 2800
Max. Head m 39.50
Motor output kW 15,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 100
Type of Fluid Drainage
Max. Solid Handling mm 8.50
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 2750
Max. Head m 71
Motor output kW 22,0
Phase / Voltage 3-phase / 400V / 50Hz

ø Discharge bore mm 150
Type of Fluid Drainage
Max. Solid Handling mm 12
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 4000
Max. Head m 55
Motor output kW 22,0
Phase / Voltage 3-phase / 400V / 50Hz
General
ø Discharge bore mm 50 - 150
Discharge Connection Threaded flange/Hose coupling
Pumping Fluid
Type of Fluid Drainage
Temperature 0-40°C
Max. Solid Handling mm 8.50 - 20
Max. dry matter % 10
Max. PH Value 5-9
Max. Capacity l/min 430 - 4000
Max. Head m 14.40 - 71
Pump
Components
Impeller Semi-open type impeller
Bearings Shielded ball bearings
Mechanical Seal Dual mechancial seal in oil bath
Material
Impeller Chromium iron casting
Casing Grey iron casting EN-GJL-200
Suction Plate Ductile iron casting EN-GJS-500-7
Pump Body Grey iron casting EN-GJL-150, Grey iron casting EN-GJL-200
Mechanical Seal Silicon Carbide
Motor
Motor output kW 1,5 - 22,0
Starting method direct online
Type, Poles Induction motor, 2 poles, IP68
Insulation Insulation class F
Phase / Voltage 3-phase / 400V / 50Hz
r.p.m. 2883 - 2945
Motor Protector (built-in) Circle thermal cut-out, Miniature protector
Rated Current 3.60 - 37.60
Material
Frame Grey iron casting EN-GJL-150, Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X30Cr13
Cable NSSHÖU 4C*1.5mm², NSSHÖU 4C*2.5mm², NSSHÖU 4C*4.0mm², NSSHÖU 4C*6.0mm², NSSHÖU 4C*10mm² + 2*1,5ST
Cable Length 20m
Others
Dry Weight Kg 34 - 295
Pressure Resistance max. 50m
Dimensions in mm:
W1: lowest running water level
  • KTZ21.5
  • KTZ31.5
  • KTZ22.2
  • KTZ32.2
  • KTZ23.7
  • KTZ33.7
  • KTZ43.7
  • KTZ35.5
  • KTZ45.5
  • KTZ47.5
  • KTZ67.5
  • KTZ411
  • KTZ611
  • KTZ415
  • KTZ615
  • KTZ622
  • KTZ422
ModelAA1BDHW1
KTZ21.5235173529216648120
KTZ31.5235173529216648120
KTZ22.2235173549216668120
KTZ32.2235173549216668120
KTZ23.7283213667252637150
KTZ33.7283213677252637150
KTZ43.7283213687252637150
KTZ35.5363306721258688150
KTZ45.5379306731258688150
KTZ47.5330245812314697190
KTZ67.5361285874314697190
KTZ411374260864350740190
KTZ611374260884350740190
KTZ415428374864350740190
KTZ615457374884350740190
KTZ42252848512004131123330
KTZ62255848512204131123330

The KTZ-series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. The pump with 7.5 to 22kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
