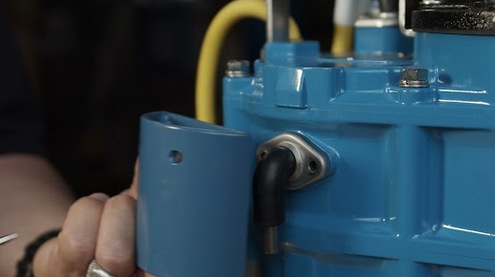

The KTVE-series is a lightweight three-phase portable drainage pump. A sensor probe is built within the footprint of the pump base automatically starting and stopping the pump to eliminate dry-running.
Model | Colour code curve | ø Discharge bore mm | Type of Fluid | Max. Solid Handling mm | Max. dry matter % | Max. PH Value | Max. Capacity l/min | Max. Head m | Motor output kW | Phase / Voltage |
---|---|---|---|---|---|---|---|---|---|---|
KTVE2.75 |
1
|
50 | Drainage | 8.50 | 10 | 5-9 | 320 | 15 | 0,75 | 3-phase / 400V / 50Hz |
KTVE21.5 |
2
|
50 | Drainage | 8.50 | 10 | 5-9 | 420 | 20 | 1,5 | 3-phase / 400V / 50Hz |
KTVE22.2 |
3
|
50 | Drainage | 8.50 | 10 | 5-9 | 525 | 24 | 2,2 | 3-phase / 400V / 50Hz |
KTVE33.7 |
4
|
80 | Drainage | 8.50 | 10 | 5-9 | 830 | 26.50 | 3,7 | 3-phase / 400V / 50Hz |
KTVE35.5 |
5
|
80 | Drainage | 8.50 | 10 | 5-9 | 980 | 35 | 5,5 | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 50 |
Type of Fluid | Drainage |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 320 |
Max. Head m | 15 |
Motor output kW | 0,75 |
Phase / Voltage | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 50 |
Type of Fluid | Drainage |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 420 |
Max. Head m | 20 |
Motor output kW | 1,5 |
Phase / Voltage | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 50 |
Type of Fluid | Drainage |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 525 |
Max. Head m | 24 |
Motor output kW | 2,2 |
Phase / Voltage | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 80 |
Type of Fluid | Drainage |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 830 |
Max. Head m | 26.50 |
Motor output kW | 3,7 |
Phase / Voltage | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 80 |
Type of Fluid | Drainage |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 980 |
Max. Head m | 35 |
Motor output kW | 5,5 |
Phase / Voltage | 3-phase / 400V / 50Hz |
ø Discharge bore mm | 50 - 80 |
---|---|
Discharge Connection | Threaded flange/Hose coupling |
Type of Fluid | Drainage |
---|---|
Temperature | 0-40°C |
Max. Solid Handling mm | 8.50 |
Max. dry matter % | 10 |
Max. PH Value | 5-9 |
Max. Capacity l/min | 320 - 980 |
Max. Head m | 15 - 35 |
Impeller | Semi-Vortex impeller |
---|---|
Bearings | Shielded ball bearings |
Mechanical Seal | Dual mechancial seal in oil bath |
Impeller | Urethane rubber, Ductile iron casting EN-GJS-700-2 |
---|---|
Casing | Synthetic rubber |
Pump Body | Cast Aluminium |
Mechanical Seal | Silicon Carbide |
Motor output kW | 0,75 - 5,5 |
---|---|
Starting method | direct online |
Type, Poles | Induction motor, 2 poles, IP68 |
Insulation | Insulation class E |
Phase / Voltage | 3-phase / 400V / 50Hz |
r.p.m. | 2783 - 2875 |
Motor Protector (built-in) | Circle thermal cut-out |
Rated Current | 2.20 - 11 |
Frame | Aluminium alloy casting |
---|---|
Shaft | Stainless steel EN-X30Cr13, Stainless steel EN-X6Cr13 |
Cable | NSSHÖU 4C*1.5mm², NSSHÖU 4C*2.5mm² |
Cable Length | 20m |
Dry Weight Kg | 13,3 - 52 |
---|---|
Pressure Resistance | max. 20m , max. 50m |
Model | A | A1 | B | B1 | D | H | W1 |
---|---|---|---|---|---|---|---|
KTVE2.75 | 200 | 155 | 401 | 329 | 200 | 417 | 234 |
KTVE21.5 | 240 | 187 | 482 | 400 | 240 | 486 | 265 |
KTVE22.2 | 240 | 187 | 482 | 400 | 240 | 486 | 265 |
KTVE33.7 | 285 | 211 | 585 | 462 | 285 | 585 | 327 |
KTVE35.5 | - | 229 | 620 | 497 | 300 | 620 | 357 |
The KTVE-series is a submersible three-phase automatic portable drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a three-phase unit, it is light weight design allowing for easy portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.
