Self-priming, centrifugal full-trash pumps, powered by Yanmar diesel (L70), recoil or electric start, engines. Capable of pumping large volumes of water that contains sand, silt & suspended large solids. Good for site drainage, sewage & flood defence.

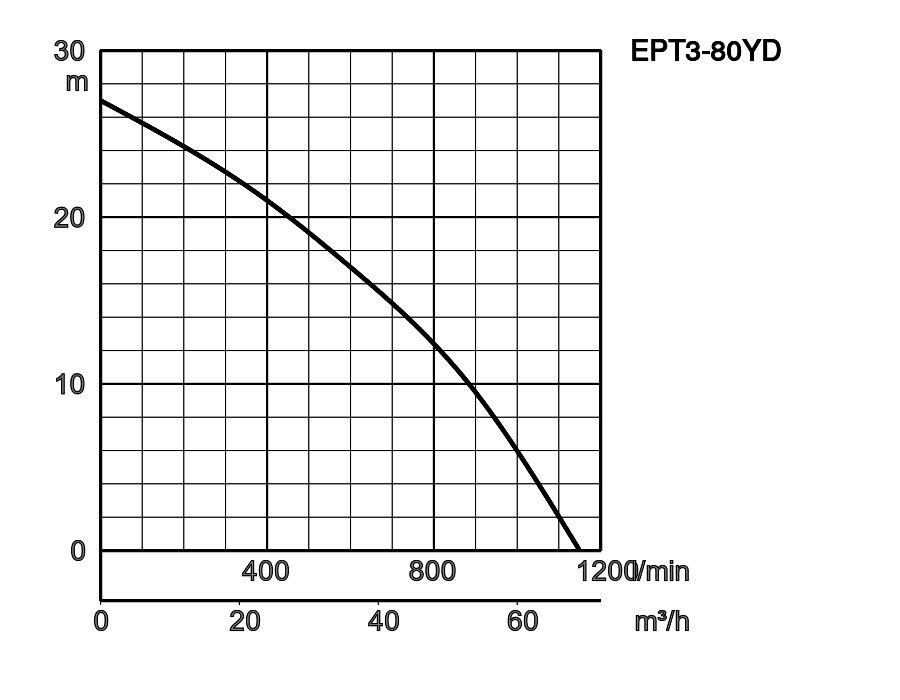

| Model | Colour code curve | Inlet x Outlet Bore | Max. Solid Handling mm | Max. Capacity l/min | Max. Head m | Motor output kW | Brand | Engine Model | Fuel |
|---|---|---|---|---|---|---|---|---|---|
| EPT3-80YDV |
1
|
80x80 (3"x3") | 31 | 1150 | 25 | 4,8 | Yanmar | L70 | Diesel |
| EPT3-100YDVE | 2 | 100x100 (4"x4") | 31 | 1700 | 25 | 6,8 | Yanmar | L100 | Diesel |
| Inlet x Outlet Bore | 80x80 (3"x3") |
| Max. Solid Handling mm | 31 |
| Max. Capacity l/min | 1150 |
| Max. Head m | 25 |
| Motor output kW | 4,8 |
| Brand | Yanmar |
| Engine Model | L70 |
| Fuel | Diesel |
| Inlet x Outlet Bore | 100x100 (4"x4") |
| Max. Solid Handling mm | 31 |
| Max. Capacity l/min | 1700 |
| Max. Head m | 25 |
| Motor output kW | 6,8 |
| Brand | Yanmar |
| Engine Model | L100 |
| Fuel | Diesel |
| Inlet x Outlet Bore | 100x100 (4"x4"), 80x80 (3"x3") |
|---|
| Type of Fluid | Drainage Water (containing sand) |
|---|---|
| Temperature | 0-40°C |
| Max. Solid Handling mm | 31 |
| Max. Capacity l/min | 1150 - 1700 |
| Max. Head m | 25 |
| Impeller | Chromium iron casting |
|---|---|
| Casing | Cast Aluminium |
| Suction Plate | Stainless steel |
| Mechanical Seal | Silicon Carbide |
| Motor output kW | 4,8 - 6,8 |
|---|---|
| Brand | Yanmar |
| Engine Model | L100, L70 |
| Fuel | Diesel |
| Fuel Tank Capacity | 3.3 L, 5.4 L |
| Starting System | Electric Starter, Recoil Starter |
| Dry Weight Kg | 74 - 102 |
|---|---|
| Packing Measurment LxWxH in mm | 710x520x765, 890x520x790 |
EPTare powered by Yanmar diesel (L70), recoil or electric start, engines. Both models have easy-carry frames and rubber feet, for engine noise and vibration absorption. Capable of pumping large volumes of water that contains sand, silt and suspended large solids, they are good for site drainage, land drainage, liquid waste removal, sewage and flood defence. The EPT3-80YDEis electric start (with battery holder, but not battery) to ensure quick and effortless starting. A two wheeled trolley is also available as an optional extra.
