Front screen type automatic bar screen available in various bar spacing sizes down to 1mm.
| Model | Bar Spacing mm | Max. PH Value | Capacity m³/h (Bar spacing: 1 mm) | Capacity m³/h (Bar spacing: 2 mm) | Capacity m³/h (Bar spacing: 2.5 mm) | Capacity m³/h (Bar spacing: 5 mm) | Width of water way mm | Installation Angle | Motor output kW | Phase / Voltage |
|---|---|---|---|---|---|---|---|---|---|---|
| KW-4027 | 1 / 2 / 2,5 / 5 | 4-10 | 17 | 29 | 34 | 47 | ≤ 400 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-4038 | 1 / 2 / 2,5 / 5 | 4-10 | 27 | 45 | 52 | 73 | ≤ 400 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-4049 | 1 / 2 / 2,5 / 5 | 4-10 | 39 | 66 | 76 | 105 | ≤ 400 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-5027 | 1 / 2 / 2,5 / 5 | 4-10 | 26 | 45 | 52 | 73 | 400-500 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-5038 | 1 / 2 / 2,5 / 5 | 4-10 | 41 | 69 | 81 | 113 | 400-500 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-5049 | 1 / 2 / 2,5 / 5 | 4-10 | 60 | 101 | 117 | 164 | 400-500 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-6027 | 1 / 2 / 2,5 / 5 | 4-10 | 36 | 61 | 70 | 98 | 500-600 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-6038 | 1 / 2 / 2,5 / 5 | 4-10 | 56 | 95 | 109 | 153 | 500-600 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| KW-6049 | 1 / 2 / 2,5 / 5 | 4-10 | 81 | 138 | 158 | 223 | 500-600 | 60° | 0,09 | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 17 |
| Capacity m³/h (Bar spacing: 2 mm) | 29 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 34 |
| Capacity m³/h (Bar spacing: 5 mm) | 47 |
| Width of water way mm | ≤ 400 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 27 |
| Capacity m³/h (Bar spacing: 2 mm) | 45 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 52 |
| Capacity m³/h (Bar spacing: 5 mm) | 73 |
| Width of water way mm | ≤ 400 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 39 |
| Capacity m³/h (Bar spacing: 2 mm) | 66 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 76 |
| Capacity m³/h (Bar spacing: 5 mm) | 105 |
| Width of water way mm | ≤ 400 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 26 |
| Capacity m³/h (Bar spacing: 2 mm) | 45 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 52 |
| Capacity m³/h (Bar spacing: 5 mm) | 73 |
| Width of water way mm | 400-500 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 41 |
| Capacity m³/h (Bar spacing: 2 mm) | 69 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 81 |
| Capacity m³/h (Bar spacing: 5 mm) | 113 |
| Width of water way mm | 400-500 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 60 |
| Capacity m³/h (Bar spacing: 2 mm) | 101 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 117 |
| Capacity m³/h (Bar spacing: 5 mm) | 164 |
| Width of water way mm | 400-500 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 36 |
| Capacity m³/h (Bar spacing: 2 mm) | 61 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 70 |
| Capacity m³/h (Bar spacing: 5 mm) | 98 |
| Width of water way mm | 500-600 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 56 |
| Capacity m³/h (Bar spacing: 2 mm) | 95 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 109 |
| Capacity m³/h (Bar spacing: 5 mm) | 153 |
| Width of water way mm | 500-600 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
| Max. PH Value | 4-10 |
| Capacity m³/h (Bar spacing: 1 mm) | 81 |
| Capacity m³/h (Bar spacing: 2 mm) | 138 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 158 |
| Capacity m³/h (Bar spacing: 5 mm) | 223 |
| Width of water way mm | 500-600 |
| Installation Angle | 60° |
| Motor output kW | 0,09 |
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Bar Spacing mm | 1 / 2 / 2,5 / 5 |
|---|---|
| Capacity m³/h (Bar spacing: 1 mm) | 17 - 81 |
| Capacity m³/h (Bar spacing: 2 mm) | 29 - 138 |
| Capacity m³/h (Bar spacing: 2.5 mm) | 34 - 158 |
| Capacity m³/h (Bar spacing: 5 mm) | 47 - 223 |
| Height mm (H1) | 279 - 511 |
| Height mm (H2) | 660 - 1057 |
| Height mm (H3) | 323 - 722 |
| Width of water way mm | ≤ 400 - 500-600 |
| Length mm | 544 - 774 |
| Installation Angle | 60° |
| Temperature | 0-40°C |
|---|---|
| Max. PH Value | 4-10 |
| Motor output kW | 0,09 |
|---|---|
| Phase / Voltage | 3-phase / 400V / 50Hz |
| Dry Weight kg | 23.50 - 42.30 |
|---|

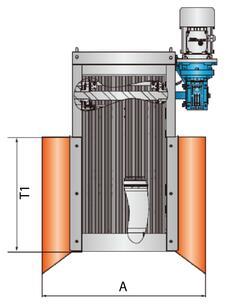

| Model | A | B | T1 | T2 | T3 |
|---|---|---|---|---|---|
| KW-4027 | 465 | 544 | 279 | 659 | 323 |
| KW-4038 | 465 | 650 | 395 | 842 | 506 |
| KW-4049 | 465 | 774 | 511 | 1057 | 722 |
| KW-5027 | 565 | 544 | 279 | 659 | 323 |
| KW-5038 | 565 | 650 | 395 | 842 | 506 |
| KW-5049 | 565 | 774 | 511 | 1057 | 722 |
| KW-6027 | 665 | 544 | 279 | 659 | 323 |
| KW-6038 | 665 | 650 | 395 | 842 | 506 |
| KW-6049 | 665 | 774 | 511 | 1057 | 722 |
Front screen type automatic bar screen available in various bar spacing sizes down to 1mm.
