KRS2 | 3-phase / 50Hz

Slurry pump suitable for most demanding jobs. 4-pole motor used to achieve a simple structure that demonstrates excellent durability and versatility.

Downloads

Performance curves & Specifications Material Dimensions Application reports

Model	Colour code curve	Bore mm	Motor output kW	Rated current A	Head max. m	Capacity max. l/min	Dry weight kg w/o cable	Max. solid handling ø mm	Pressure resistance max. m	Cable length m

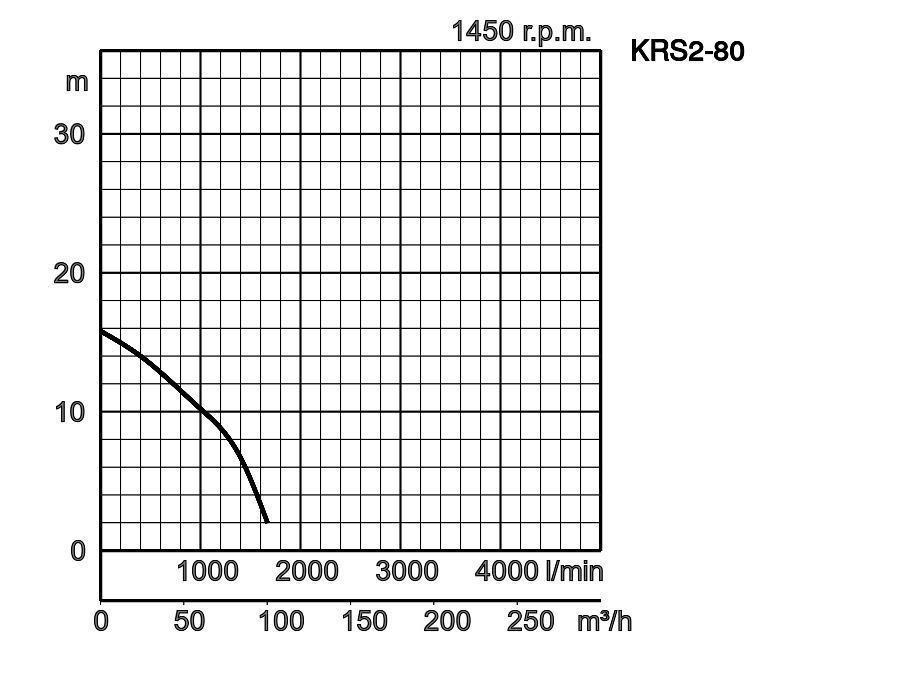

KRS2-80	1 print KRS2-80_1.pdf	80	4,0	9,5	15,8	1670	105,0	30	15	20

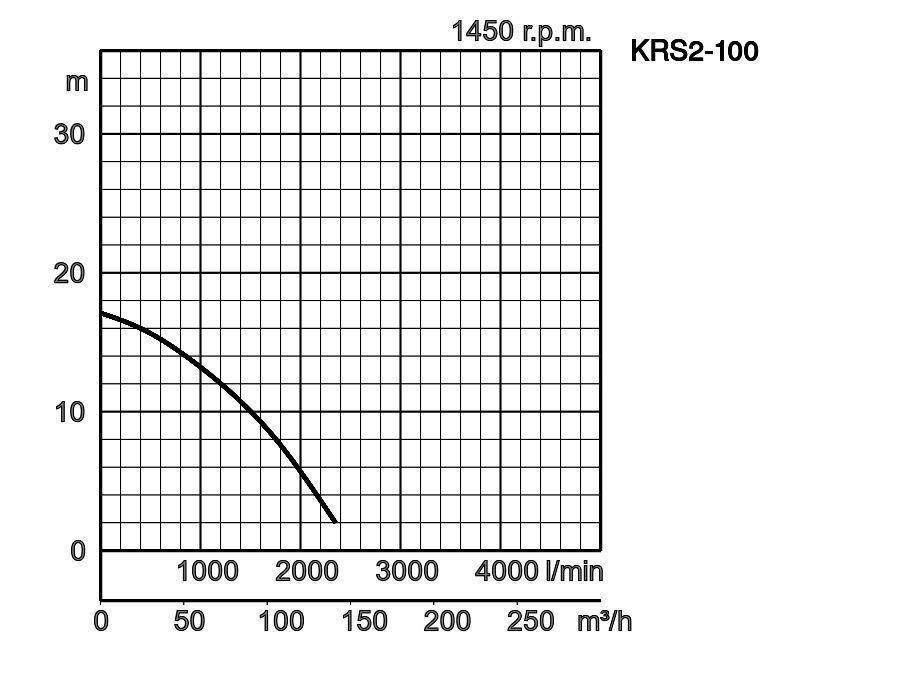

KRS2-100	2 print KRS2-100_1.pdf	100	6,0	13,0	17,1	2350	145,0	30	15	20

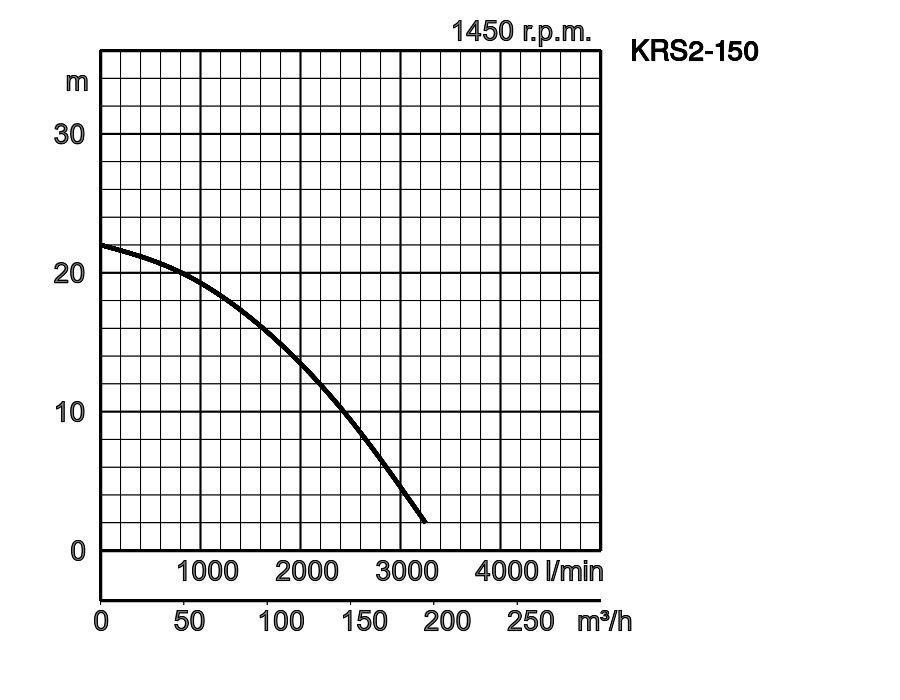

KRS2-150	3 print KRS2-150_1.pdf	150	9,0	18,5	22,0	3250	170,0	30	15	20

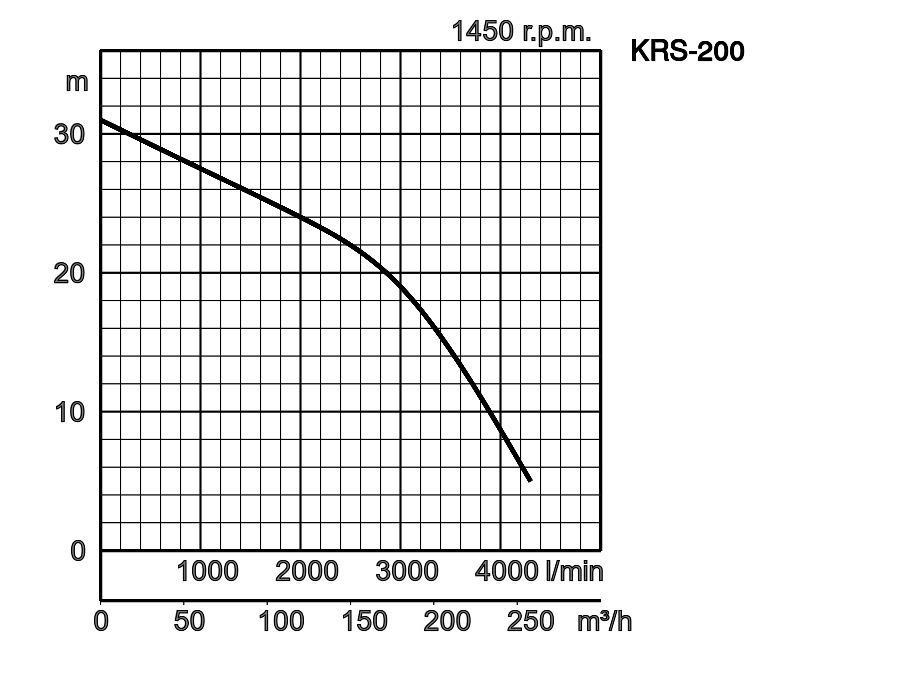

KRS-200	4 print KRS-200_1.pdf	200	18,0	35,0	31,0	4300	395,0	30	30	20

ø Discharge bore mm			80, 100, 150, 200
Pumping Fluid	Temperature		0-40°C
Pumping Fluid	Type of Fluid		Sludge, Slurry, Liquids containing sandy mud and/or bentonite
Pump	Compo- nents	Impeller	Open type impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Chromium iron casting
		Casing	Grey iron casting EN-GJL-200
		Suction Plate	Chromium iron casting
		Shaft Seal	Silicon carbide in oil bath
Motor	Lubrication		Turbine oil (ISO VG32)
	Motor Protector (built-in)		Circle thermal cut-out
	Insulation		Insulation class E, Insulation class B
	Phase / Voltage		3-phase / 400V / 50Hz / d.o.l.
	Type, Poles		Induction motor, 4 poles, IP68
	Material	Casing	Grey iron casting EN-GJL-150
		Shaft	Stainless steel EN-X30Cr13
		Cable	Rubber, NSSHÖU
Discharge Connection			Threaded flange/Hose coupling

Dimensions in mm:

KRS2-80
KRS2-100
KRS2-150
KRS-200

W1: lowest running water level

Model	A	A1	B	B1	D	H	W1
KRS2-80	349	260	800	680	326	780	265
KRS2-100	415	305	835	697	374	773	270
KRS2-150	433	324	898	718	407	830	270
KRS-200	576	445	1181	950	530	1140	285

In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website www.tsurumi.eu/english/applications.htm.

Schorn Gravel Works, Cologne, Germany

Evacuation of the sedimentation tank of the open cast mine in the gravel works

Gotthard Basistunnel, Switzerland

Railway Tunnel Alptransit Gotthard, Sedrun Section

Rösrath Treatment Plant, Germany

Reconstruction of the sand filter at the Rösrath treatment plant

ARGE tunnel Katzenberg, Germany

Construction of a double-track railway tunnel with a total length of 9.385m

Inland waterway canal Hohenems, Austria

Construction of the inland waterway canal as well as the installation of concrete girders for securing purposes in Hohenems, Austria

Sand dressing, Quartz works, Frechen

Construction of a new handling system for quartz sand

Cleaning of a truck washing pit, Dormagen

Pumping away the washing water from the truck washing pit

Tunnel Burgholz, Wuppertal

Construction of a tunnel for road traffic

Gotthard basetunnel, Sedrun

Railway tunnel Alptransit, Gotthard

Technical Relieve Organisation (THW) local association Cologne East

Technical Relieve Organisation (THW), local association Cologne East on duty in Magdeburg

Open-cast gravel mining, Germany

pumping of viscous sludge

Schwarzbach pipe heading, Germany

pumping of highly abrasive sludge

Pumped Storage Power Station, Vianden, Luxemburg

Extension of the pumped storage power station at Vianden with an 11th machine, Lot 1 – Structural installations, Luxemburg

MUCEM, Marseille, France

Dumez Mediterranée Company (VINCI Group) New construction of the MUCEM (Museum of European and Mediterranean Civilizations) in Marseille, on an area of 26,000 m³

Rösrath treatment plant sand filter, Germany

Maintenance of sand filter of Rösrath treatment plant

Truxor waters care system, Germany

Displacement of sands in waters.

Production of gypsum plaster boards, France

Gypsum is extracted from the quarry located nearby the factory. It is then ground before being heated in the oven to extract the water which it contains. It is ground again more finely to obtain plaster in powder form. From this plaster, the factory produces plaster boards.

Pumping of activated sludge, Dellach, Austria

For the service and inspection of the aeration system, the activated sludge basins are emptied every two years.

Mick Kies gravel washing installation, Dodenburg, Germany

Since 1959, Mick Kies GmbH in Dierscheid has used a certified process recognised throughout Europe to obtain top-quality quartz gravel and quartz sand. During this process, the gravel is washed and appropriately processed for final customers.
