KTD | 3-phase / 50Hz

A powerful slurry pump using KTZ pumps as a base. Features wear resistance and durability.

KTD | 3-phase / 50Hz
ModelColour code curveBore mmMotor output kWRated current AHead max. mCapacity max. l/minDry weight kg w/o cableMax. solid handling ø mmPressure resistance max. mCable length m

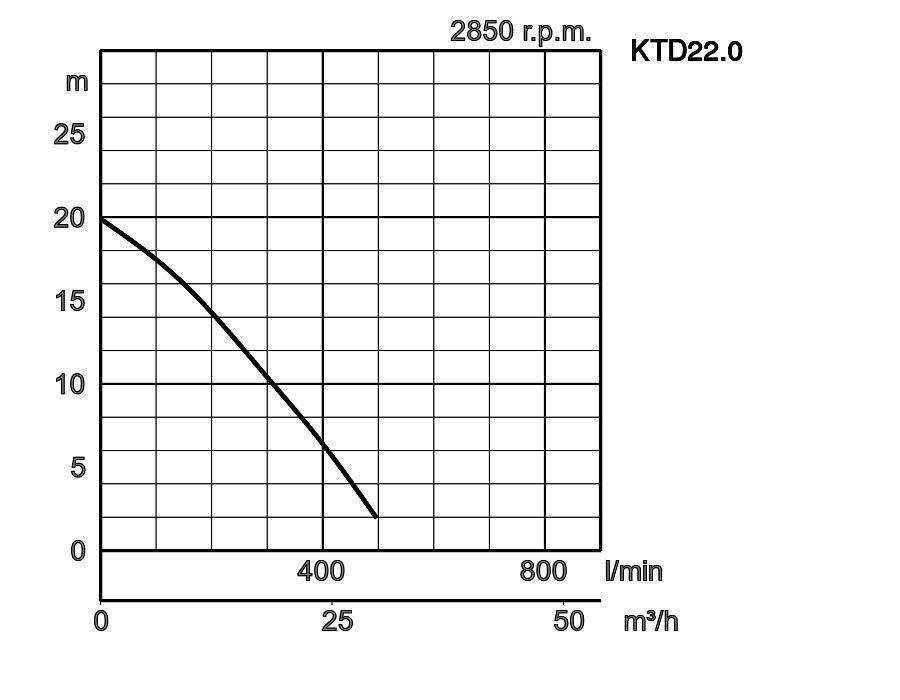

KTD22.0 50 2,0 4,5 19,9 496 38,0 10 25 20

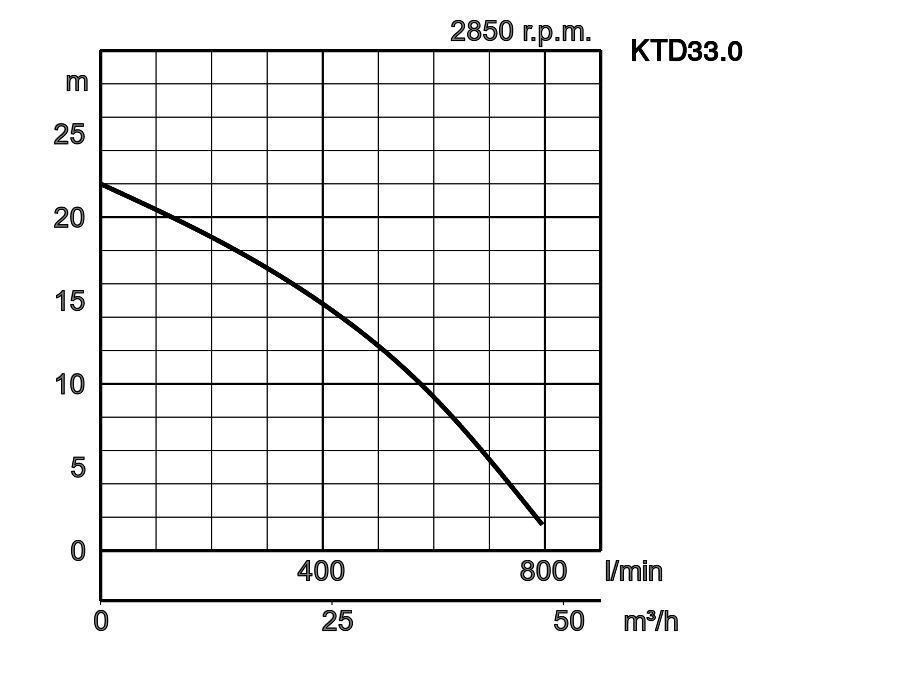

KTD33.0 80 3,0 6,5 22,0 794 65,0 10 25 20
ø Discharge bore mm 50, 80
Pumping Fluid Type of Fluid Sludge, Slurry, Liquids containing sandy mud and/or bentonite
Temperature 0-40°C
Pump Compo- nents Impeller Semi-open type impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material Impeller Chromium iron casting
Casing Grey iron casting EN-GJL-200
Suction Plate Ductile iron casting EN-GJS-500-7
Shaft Seal Silicon carbide in oil bath
Motor Type, Poles Induction motor, 2 poles, IP68
Motor Protector (built-in) Circle thermal cut-out
Insulation Insulation class F
Lubrication Turbine oil (ISO VG32)
Phase / Voltage 3-phase / 400V / 50Hz / d.o.l.
Material Casing Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X30Cr13
Cable Rubber, NSSHÖU
Discharge Connection Threaded flange/Hose coupling

Dimensions in mm:

  • KTD22.0
  • KTD33.0

W1: lowest running water level

In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website www.tsurumi.eu/english/applications.htm.
