200BYK | 3-phase / 50Hz

A closed double-channel impeller ensures, that sewage water containing sludge and fibrous substances can be pumped efficiently without clogging.

Performance curves & Specifications Material Dimensions

Model		Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	Dry weight kg *		Impeller passage mm
free standing	with guide rail fitting	Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	free standing	with guide rail fitting	Impeller passage mm

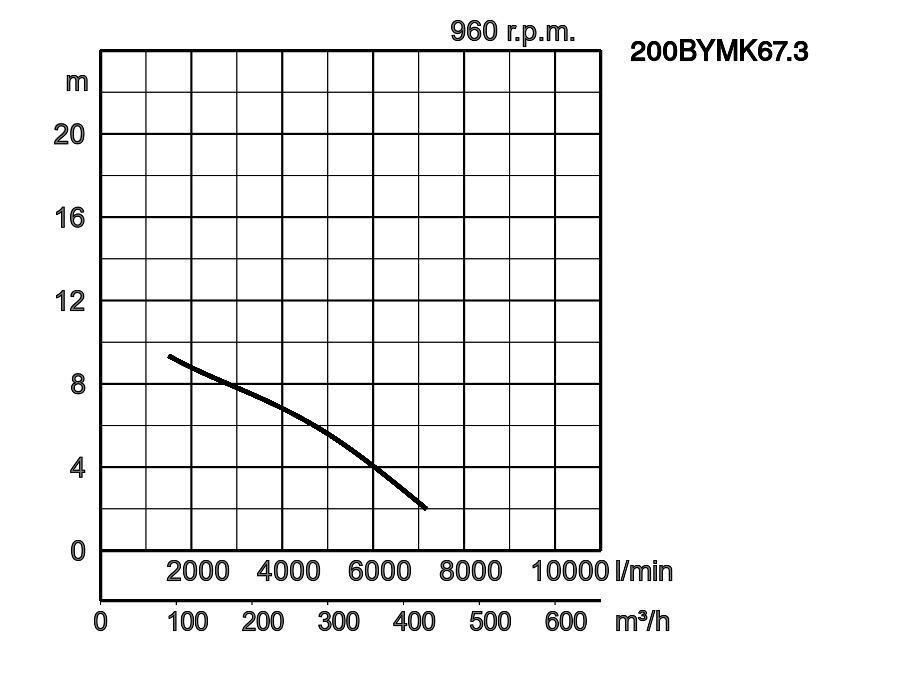

200BYMK67.3	200BYMK67.3	1 print 200BYMK67.3_1.pdf	200	7,3	3	960	9,4	7167	star/delta	318,0	318,0	100

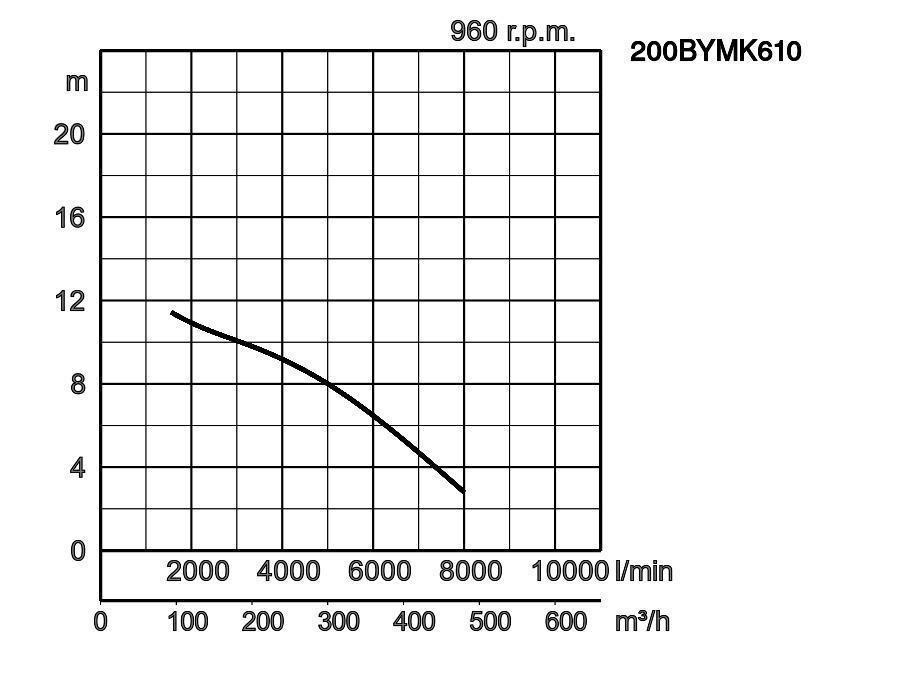

200BYMK610	200BYMK610	2 print 200BYMK610_1.pdf	200	10	3	960	11,5	8000	star/delta	332,0	332,0	100

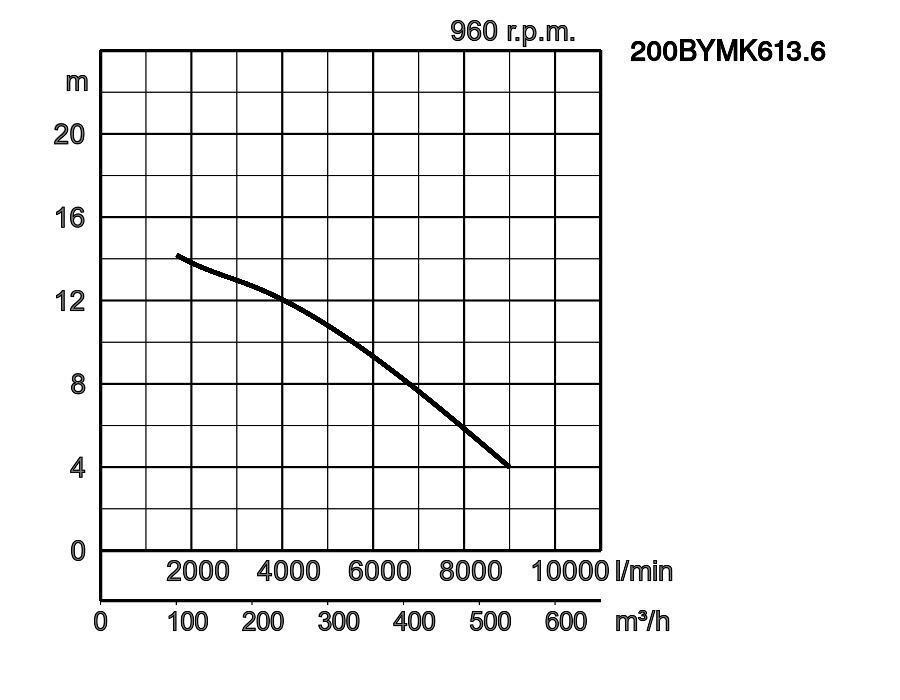

200BYMK613.6	200BYMK613.6	3 print 200BYMK613.6_1.pdf	200	13,6	3	960	14,2	9000	star/delta	348,0	348,0	100

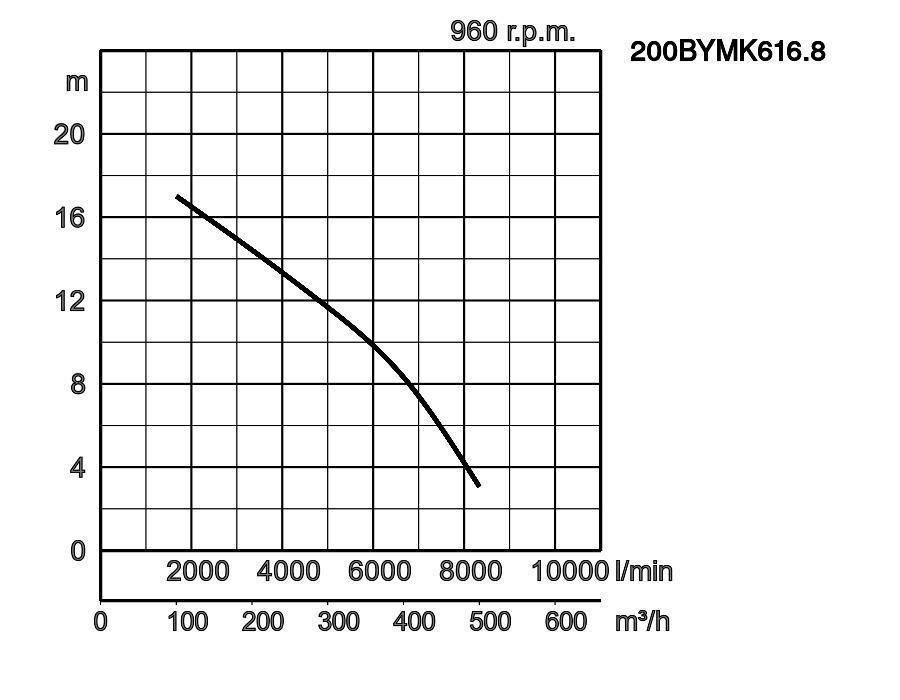

200BYMK616.8	200BYMK616.8	4 print 200BYMK616.8_1.pdf	200	16,8	3	960	17,0	8333	star/delta	681,8	499,9	100

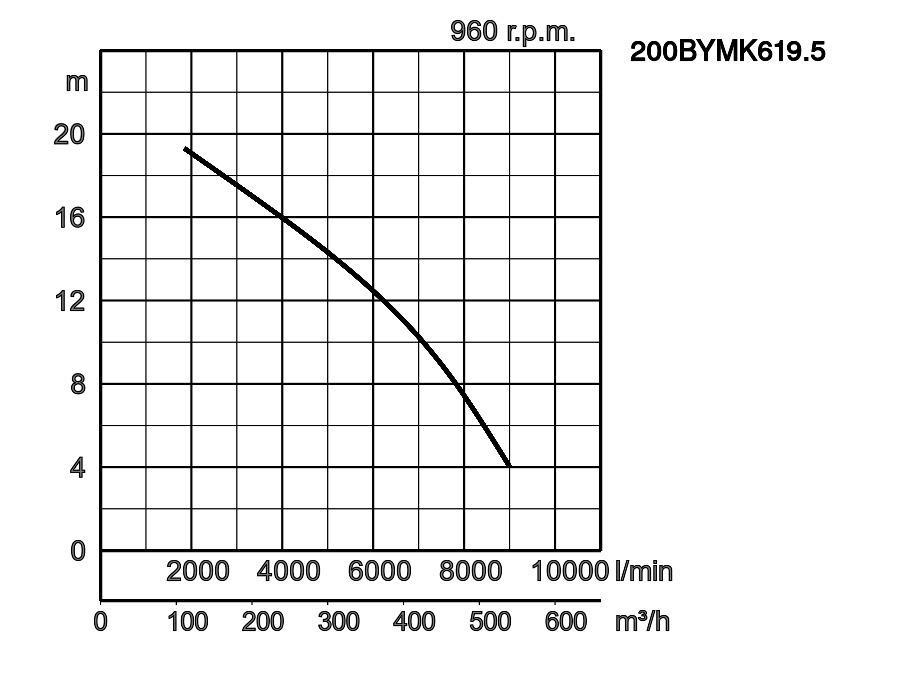

200BYMK619.5	200BYMK619.5	5 print 200BYMK619.5_1.pdf	200	19,5	3	960	19,3	9000	star/delta	700,0	518,1	100

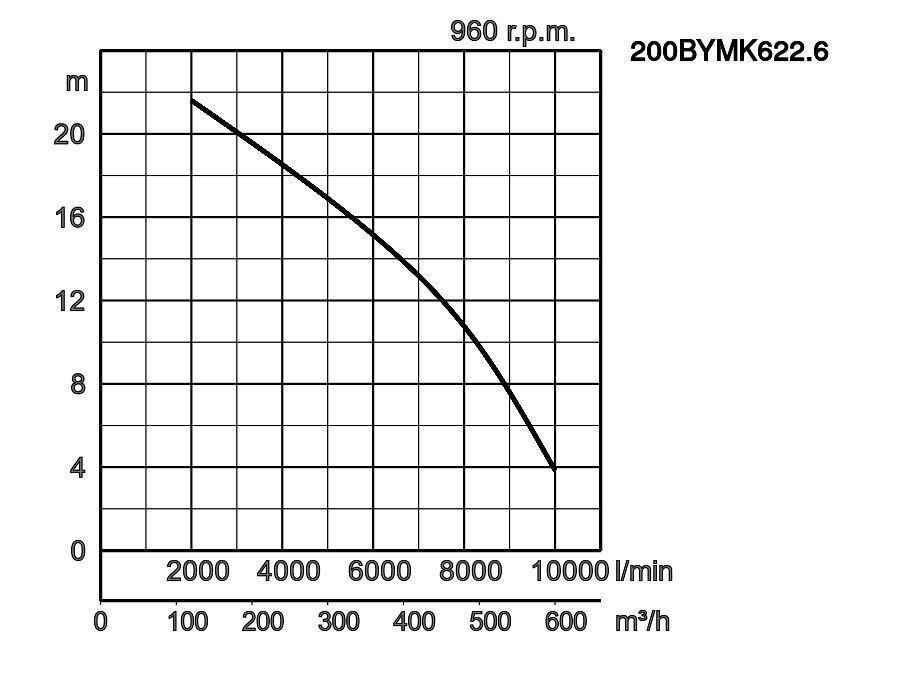

200BYMK622.6	200BYMK622.6	6 print 200BYMK622.6_1.pdf	200	22,6	3	960	21,6	10000	star/delta	726,0	544,1	100

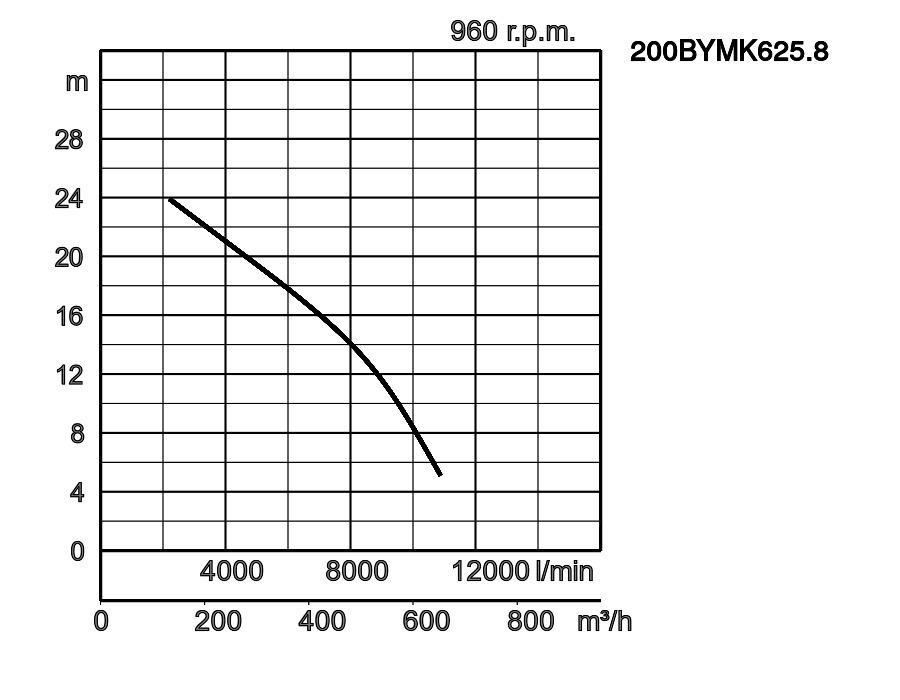

200BYMK625.8	200BYMK625.8	7 print 200BYMK625.8_1.pdf	200	25,8	3	960	23,9	10883	star/delta	730,9	549,0	100

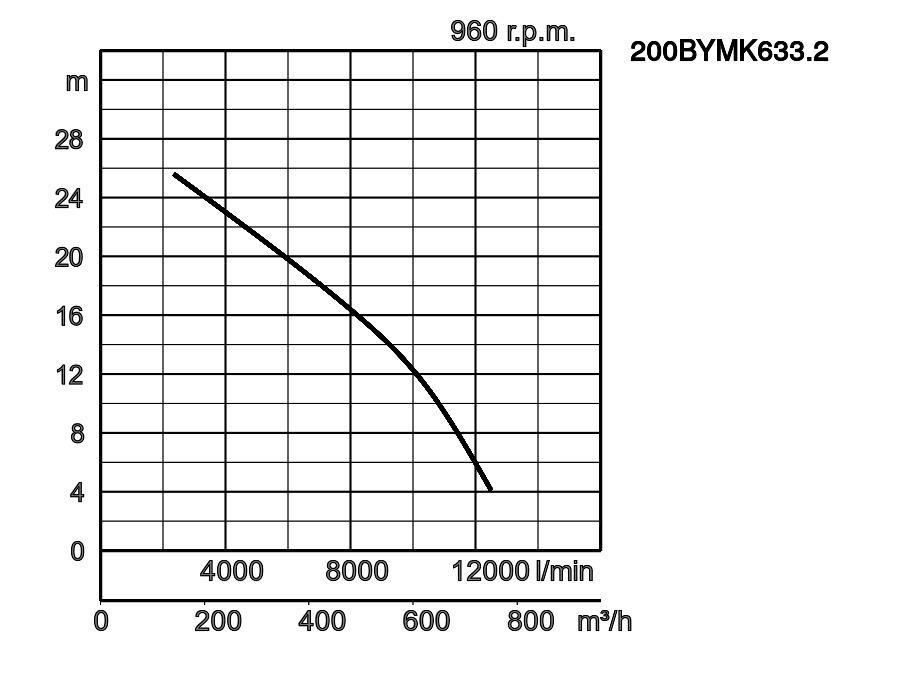

200BYMK633.2	200BYMK633.2	8 print 200BYMK633.2_1.pdf	200	33,2	3	960	25,6	12500	star/delta	859,7	677,7	100

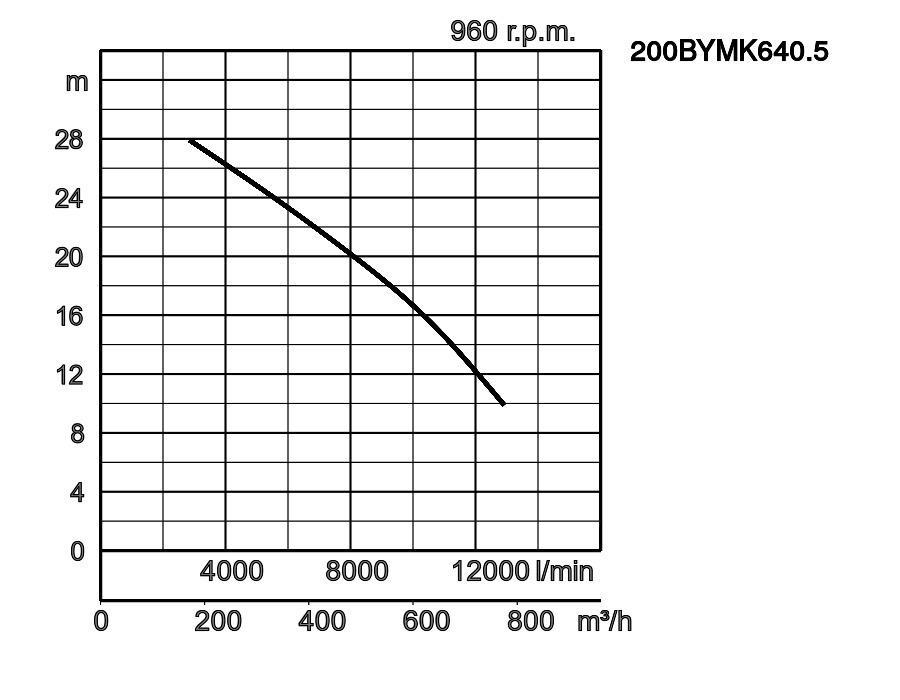

200BYMK640.5	200BYMK640.5	9 print 200BYMK640.5_1.pdf	200	40,5	3	960	27,9	12917	star/delta	1061,9	916,4	100

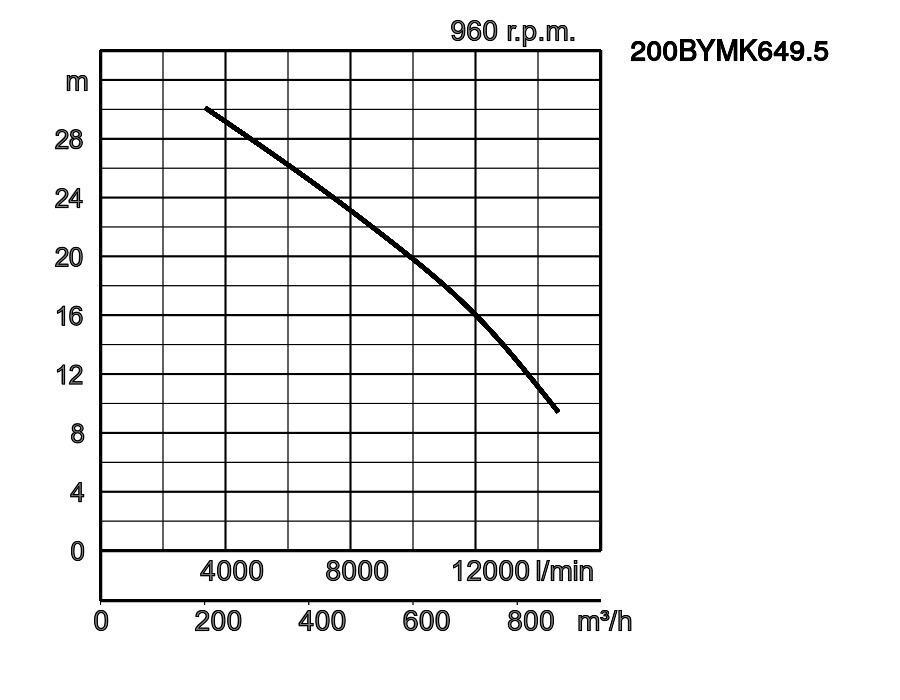

200BYMK649.5	200BYMK649.5	10 print 200BYMK649.5_1.pdf	200	49,5	3	960	30,1	14667	star/delta	1087,9	942,4	100

ø Discharge bore mm			200mm
Pumping Fluid	Temperature		0-40°C
Pumping Fluid	Type of Fluid		Municipal sewage
Pump	Compo- nents	Impeller	Dual channel impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Grey iron casting EN-GJL-250
		Casing	Grey iron casting EN-GJL-250
		Shaft Seal	SiC, upper in oil bath
		Wearring	Bronze
Motor	Insulation		Insulation class H
	Motor Protector (built-in)		Miniature protector
	Type, Poles		Induction motor, 6 poles, IP68
	Phase / Voltage		3-phase / 400V / 50Hz / s.d.
	Lubrication		Turbine oil (ISO VG32)
	Material	Casing	Grey iron casting EN-GJL-250
		Shaft	Stainless steel EN-X14CrMoS17, Stainless steel EN-X20Cr13
		Cable	Rubber, 10m H07RN8-F
Discharge Connection			Flange DIN/ANSI DN200 (PN10)
Optional Accessories			Horizontal installation / Vertical installation

W1: lowest running water level

Model	A	B	B1	C	C1	DN1	DN2	J2	K1	K2	K3	K4	L	M	O
200BYMK67.3	990	740	450	547	241	200	250	369	318	692	857	1224	350	680	1364
200BYMK610	1050	740	450	547	241	200	250	369	318	692	857	1224	350	680	1364
200BYMK613.6	1140	740	450	547	241	200	250	369	318	692	857	1224	350	680	1364
200BYMK616.8	1208	900	550	650	291	200	200	369	301	692	842	1209	367	560	1417
200BYMK619.5	1333	878	550	650	291	200	200	369	301	692	842	1209	367	560	1417
200BYMK622.6	1333	900	550	650	291	200	200	369	301	692	842	1209	367	560	1417
200BYMK625.8	1333	900	550	650	291	200	200	369	301	692	842	1209	367	560	1417
200BYMK633.2	1338	900	550	650	291	200	200	369	301	692	842	1209	367	560	1417
200BYMK640.5	1405	1030	600	779	353	200	250	369	318	692	864	1231	350	680	1539
200BYMK649.5	1535	1030	600	779	353	200	250	369	318	692	864	1231	350	680	1539

Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately

Model	B	B1	C	C1	DN1	DN2	P1	P2	Q	R	S1	S3	T	U	V1
200BYMK67.3	760	450	547	241	200	250	310	760	165	1000	380	115	771	876	310
200BYMK610	760	450	547	241	200	250	310	760	165	1060	380	115	831	936	310
200BYMK613.6	760	450	547	241	200	250	310	760	165	1150	380	115	921	1026	310
200BYMK616.8	900	550	650	291	200	200	350	900	150	1220	500	120	993	1103	360
200BYMK619.5	900	550	650	291	200	200	350	900	150	1345	500	120	1118	1228	360
200BYMK622.6	900	550	650	291	200	200	350	900	150	1345	500	120	1118	1228	360
200BYMK625.8	900	550	650	291	200	200	350	900	150	1345	500	120	1118	1228	360
200BYMK633.2	900	550	650	291	200	200	350	900	150	1403	500	120	1156	1266	410
200BYMK640.5	1030	600	779	353	200	250	430	1030	172	1550	450	120	1151	1261	410
200BYMK649.5	1030	600	779	353	200	250	430	1030	172	1550	450	120	1281	1391	410

W1: lowest running water level
