A closed single-channel impeller ensures, that sewage water containing sludge and fibrous substances can be pumped efficiently without clogging.
You are here:
- Start >
- Europe >
- Industrial & Wastewater >
- Sewage Pumps >
- 100BYZK

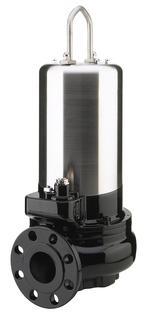

100BYZK | 3-phase / 50Hz
Downloads
| Model | Colour code curve | Bore mm | Power output kW | Phases | r.p.m. | Head max. m | Capacity max. l/min | Starting method | Dry weight kg * | Impeller passage mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| free standing | with guide rail fitting | free standing | with guide rail fitting | |||||||||

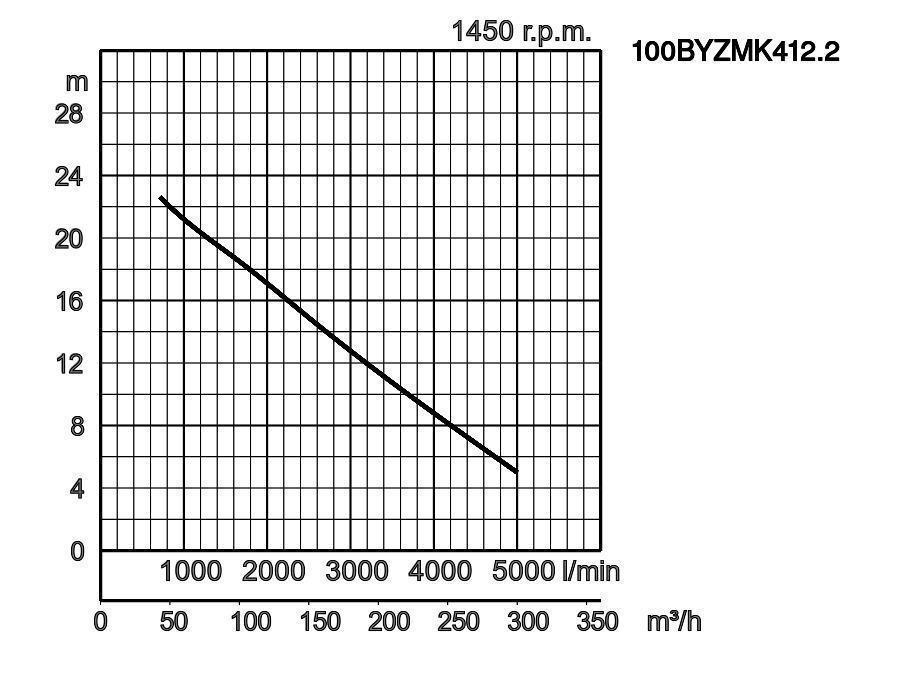

| 100BYZMK412.2L | 100BYZMK412.2L | 100 | 12,2 | 3 | 1450 | 18,9 | 4333 | star/delta | 219,0 | 219,0 | 100 | |
| 100BYZMK412.2 | 100BYZMK412.2 | 100 | 12,2 | 3 | 1450 | 22,5 | 5000 | star/delta | 219,0 | 219,0 | 100 | |
| 100BYZMK414.6 | 100BYZMK414.6 | 100 | 14,6 | 3 | 1450 | 25,6 | 5500 | star/delta | 219,0 | 219,0 | 100 | |
| 100BYZMK419.3 | 100BYZMK419.3 | 100 | 19,3 | 3 | 1450 | 29,1 | 5833 | star/delta | 244,0 | 244,0 | 100 | |
100BYZMK412.2L_1.pdf
| ø Discharge bore mm | 100mm | |||
|---|---|---|---|---|
| Pumping Fluid | Temperature | 0-40°C | ||
| Type of Fluid | Municipal sewage | |||
| Pump | Compo- nents | Impeller | Single channel impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Grey iron casting EN-GJL-250 | ||
| Casing | Grey iron casting EN-GJL-250 | |||
| Shaft Seal | SiC, upper in oil bath | |||
| Wearring | Bronze | |||
| Motor | Phase / Voltage | 3-phase / 400V / 50Hz / s.d. | ||
| Type, Poles | Induction motor, 4 poles, IP68 | |||
| Lubrication | Turbine oil (ISO VG32) | |||
| Insulation | Insulation class H | |||
| Motor Protector (built-in) | Miniature protector | |||
| Material | Casing | Grey iron casting EN-GJL-250 | ||
| Shaft | Stainless steel EN-X14CrMoS17 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Flange DIN/ANSI DN100 (PN10) | |||
| Optional Accessories | Horizontal installation / Vertical installation | |||
Dimensions in mm:
-
-
- 100BYZMK412.2
- 100BYZMK414.6
- 100BYZMK419.3
- 100BYZMK412.2L
W1: lowest running water level
| Model | A | B | B1 | C | C1 | DN1 | DN2 | J2 | K1 | K2 | K3 | K4 | L | M | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100BYZMK412.2L | 878 | 781 | 541 | 457 | 207 | 100 | 150 | 197 | 205 | 502 | 622 | 817 | 283 | 520 | 942 |
| 100BYZMK412.2 | 878 | 781 | 541 | 457 | 207 | 100 | 150 | 197 | 205 | 502 | 622 | 817 | 283 | 520 | 942 |
| 100BYZMK414.6 | 878 | 781 | 541 | 457 | 207 | 100 | 150 | 197 | 205 | 502 | 622 | 817 | 283 | 520 | 942 |
| 100BYZMK419.3 | 968 | 781 | 541 | 457 | 207 | 100 | 150 | 197 | 205 | 502 | 622 | 817 | 283 | 520 | 942 |
Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately
Dimensions - guide rail fitting type in mm:
| Model | B | B1 | C | C1 | DN1 | DN2 | P1 | P2 | Q | R | S1 | S3 | T | U | V1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100BYZMK412.2L | 605 | 345 | 457 | 207 | 100 | 150 | 260 | 605 | 130 | 890 | 380 | 115 | 706 | 816 | 310 |
| 100BYZMK412.2 | 605 | 345 | 457 | 207 | 100 | 150 | 260 | 605 | 130 | 890 | 380 | 115 | 706 | 816 | 310 |
| 100BYZMK414.6 | 605 | 345 | 457 | 207 | 100 | 150 | 260 | 605 | 130 | 890 | 380 | 115 | 706 | 816 | 310 |
| 100BYZMK419.3 | 605 | 345 | 457 | 207 | 100 | 150 | 260 | 605 | 130 | 980 | 380 | 115 | 796 | 906 | 310 |
-
-
- 100BYZMK412.2
- 100BYZMK414.6
- 100BYZMK419.3
- 100BYZMK412.2L
W1: lowest running water level
