100BYZ | 3-phase / 50Hz

A closed single-channel impeller ensures, that sewage water containing sludge and fibrous substances can be pumped efficiently without clogging.

Performance curves & Specifications Material Dimensions

Model		Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	Dry weight kg *		Impeller passage mm
free standing	with guide rail fitting	Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	free standing	with guide rail fitting	Impeller passage mm

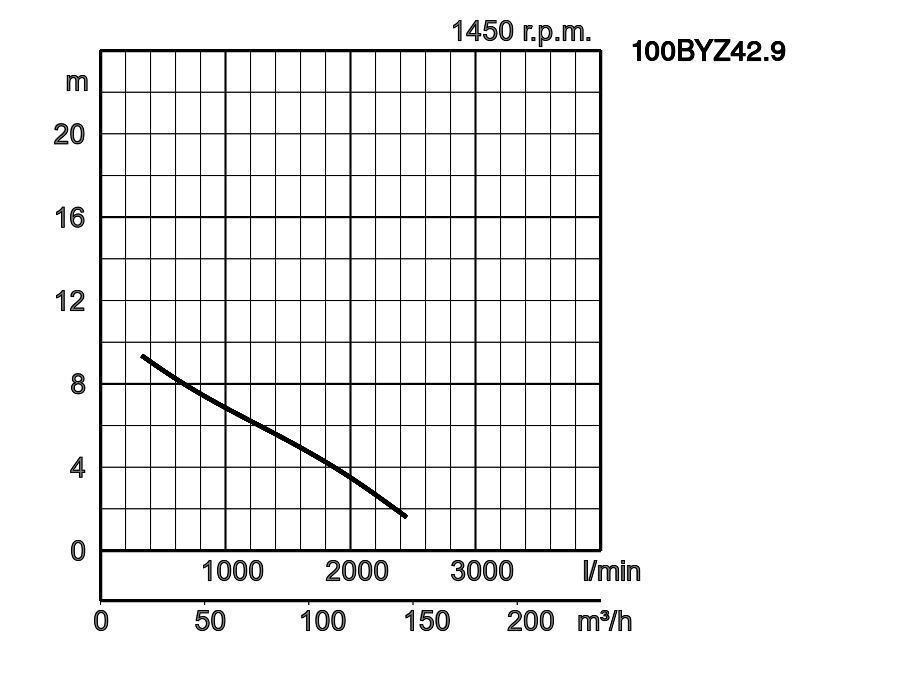

100BYZ42.9	TOS100BYZ42.9	1 print 100BYZ42.9_1.pdf	100	2,9	3	1450	9,2	2448	direct	104,0	104,0	100

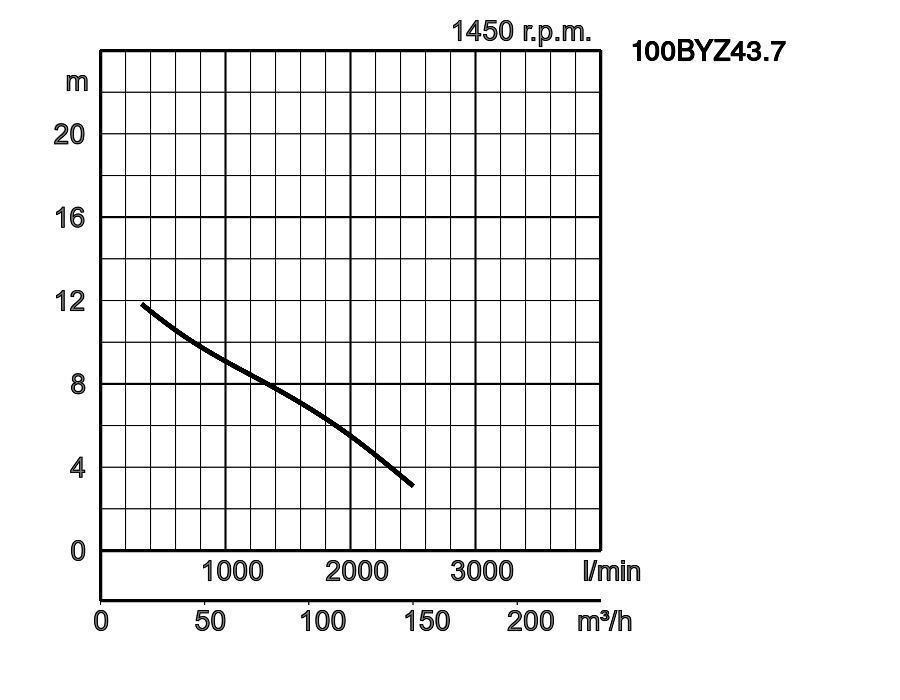

100BYZ43.7	TOS100BYZ43.7	2 print 100BYZ43.7_1.pdf	100	3,7	3	1450	11,7	2500	star/delta	108,0	108,0	100
100BYZ43.7H	TOS100BYZ43.7H	3 print 100BYZ43.7H_1.pdf	100	3,7	3	1450	12,6	1863	star/delta	129,0	129,0	100

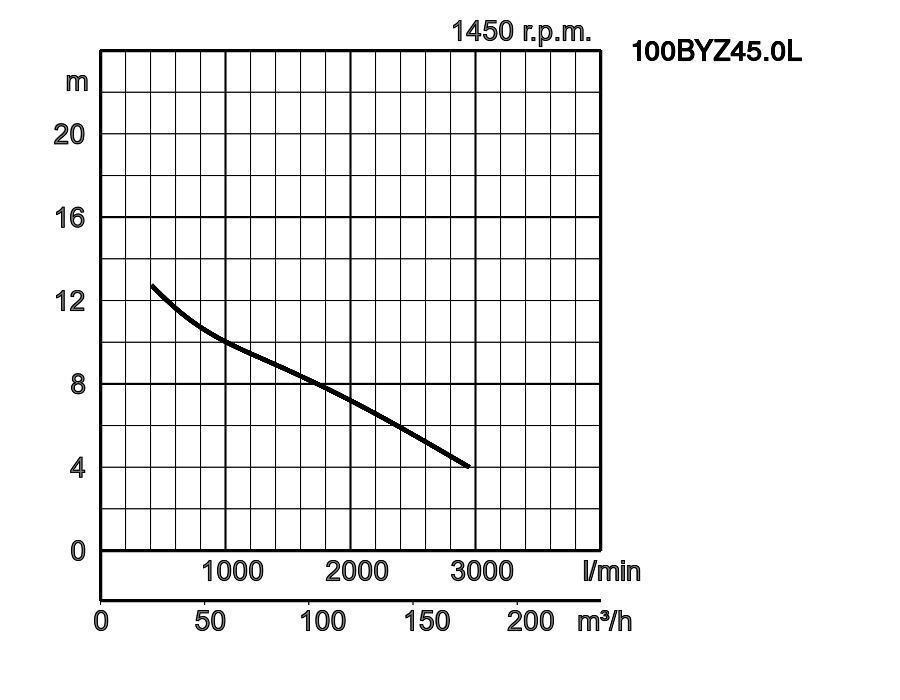

100BYZ45.0L	TOS100BYZ45.0L	4 print 100BYZ45.0L_1.pdf	100	5,0	3	1450	12,6	2950	star/delta	139,0	139,0	100

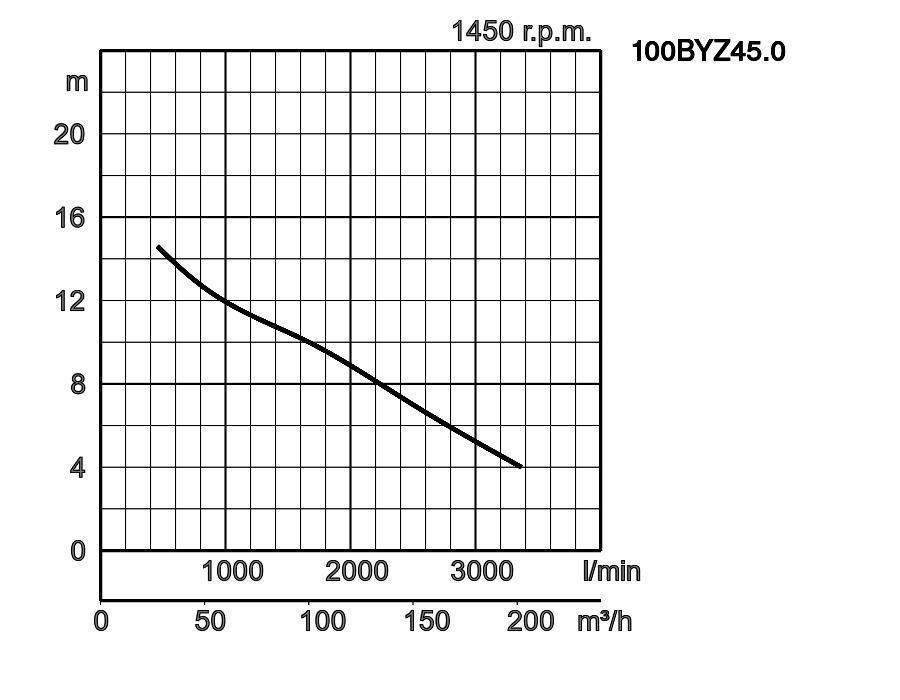

100BYZ45.0	TOS100BYZ45.0	5 print 100BYZ45.0_1.pdf	100	5,0	3	1450	14,4	3367	star/delta	139,0	139,0	100

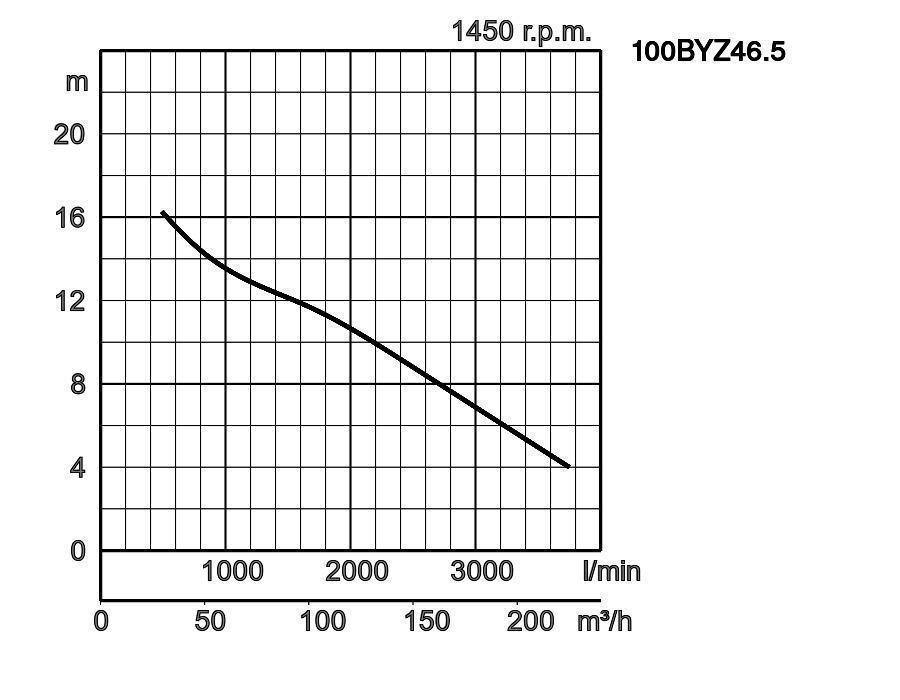

100BYZ46.5	TOS100BYZ46.5	6 print 100BYZ46.5_1.pdf	100	6,5	3	1450	16,3	3750	star/delta	142,0	142,0	100

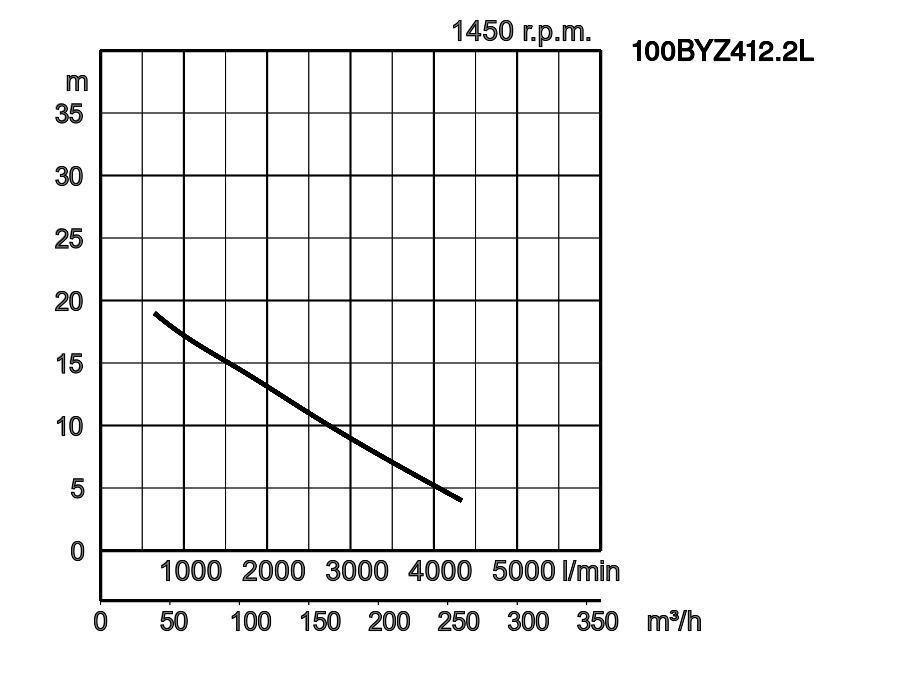

100BYZ412.2L	TOS100BYZ412.2L	7 print 100BYZ412.2L_1.pdf	100	12,2	3	1450	18,9	4333	star/delta	209,0	209,0	100

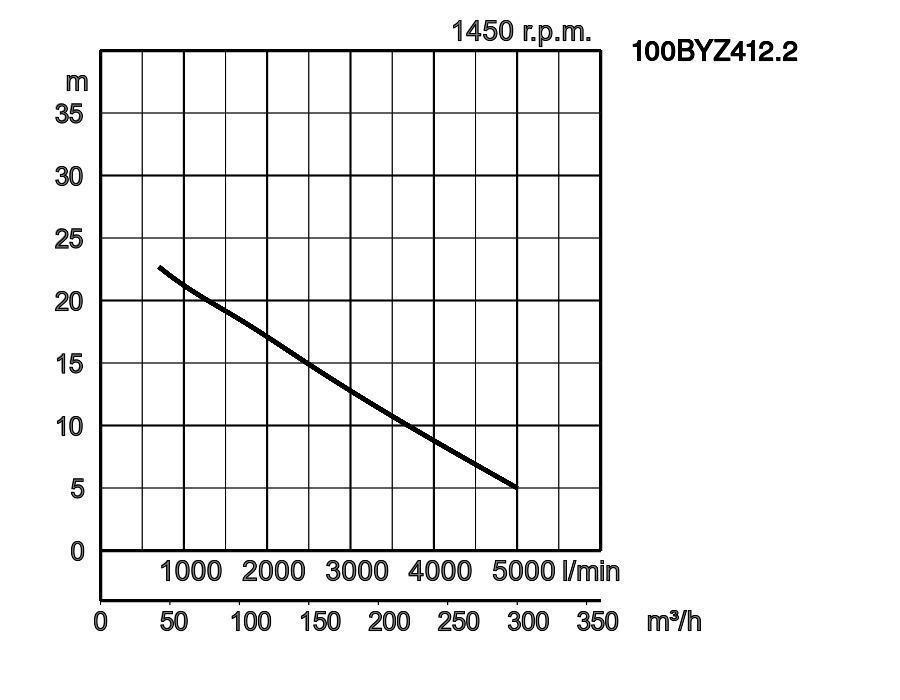

100BYZ412.2	TOS100BYZ412.2	8 print 100BYZ412.2_1.pdf	100	12,2	3	1450	27,0	5000	star/delta	209,0	209,0	100

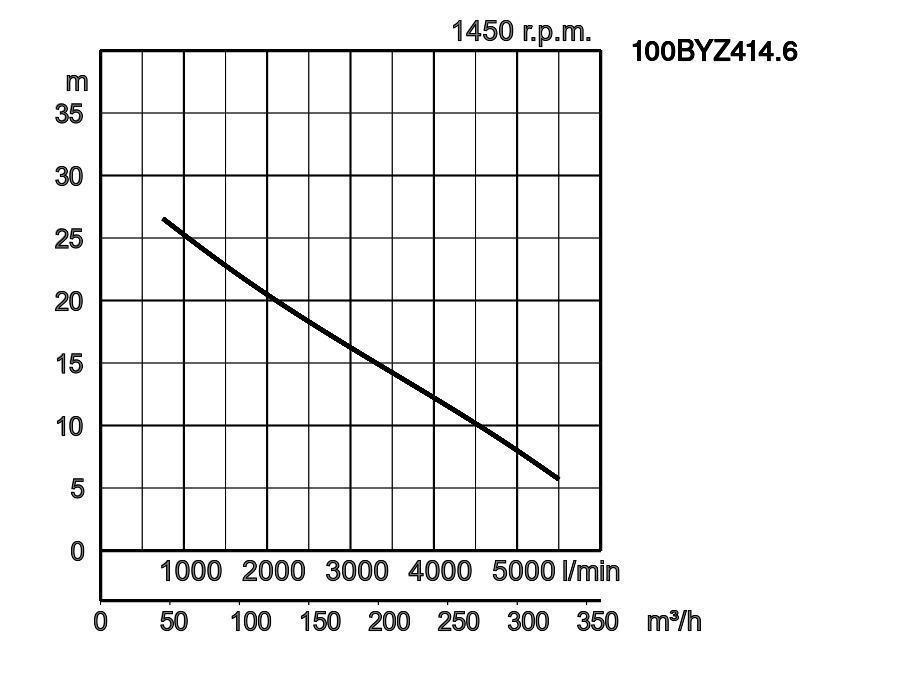

100BYZ414.6	TOS100BYZ414.6	9 print 100BYZ414.6_1.pdf	100	14,6	3	1450	25,6	5500	star/delta	209,0	209,0	100

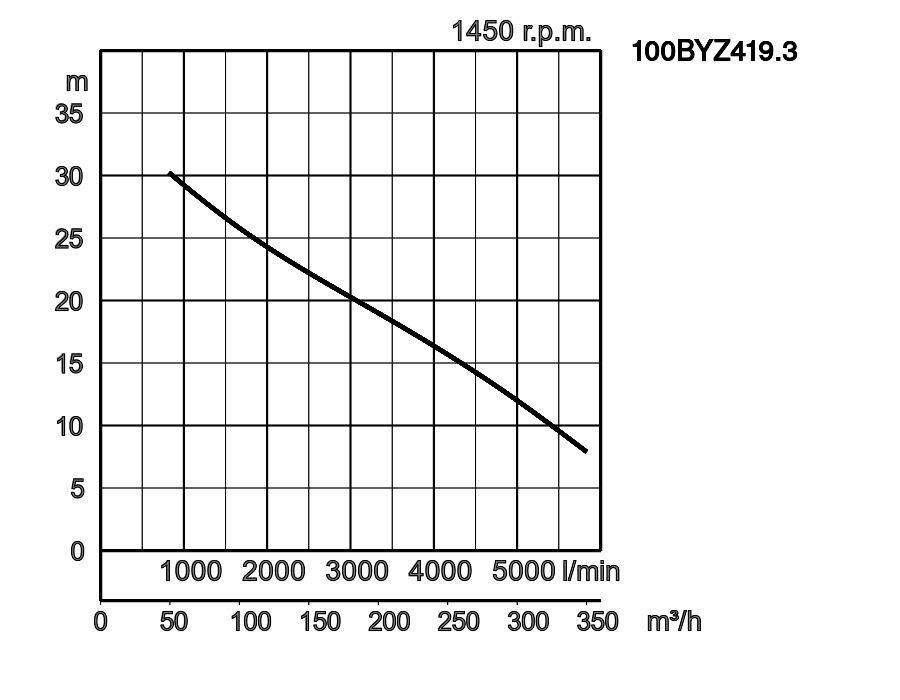

100BYZ419.3	TOS100BYZ419.3	10 print 100BYZ419.3_1.pdf	100	19,3	3	1450	29,1	5833	star/delta	231,0	231,0	100

ø Discharge bore mm			100mm
Pumping Fluid	Temperature		0-40°C
Pumping Fluid	Type of Fluid		Municipal sewage
Pump	Compo- nents	Impeller	Single channel impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Grey iron casting EN-GJL-250
		Casing	Grey iron casting EN-GJL-250
		Shaft Seal	SiC, upper in oil bath
		Wearring	Bronze
Motor	Lubrication		Turbine oil (ISO VG32)
	Phase / Voltage		3-phase / 400V / 50Hz / s.d.
	Insulation		Insulation class H
	Motor Protector (built-in)		Miniature protector
	Type, Poles		Induction motor, 4 poles, IP68
	Material	Casing	Grey iron casting EN-GJL-250
		Shaft	Stainless steel EN-X14CrMoS17
		Cable	Rubber, 10m H07RN8-F
Discharge Connection			Flange DIN/ANSI DN100 (PN10)
Optional Accessories			Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types

W1: lowest running water level

Model	A	B	B1	C	C1	DN1	DN2	DN3	F1	F2	F3	G	H	J1
100BYZ42.9	737	422	265	323	147	100	100	4"	-	-	-	395	642	122
100BYZ43.7	737	422	265	323	147	100	100	4"	-	-	-	395	642	122
100BYZ43.7H	733	460	280	335	149	100	100	4"	-	-	-	450	684	122
100BYZ45.0L	806	460	280	335	149	100	100	4"	-	-	-	450	684	122
100BYZ45.0	806	460	280	335	149	100	100	4"	-	-	-	450	684	122
100BYZ46.5	806	460	280	335	149	100	100	4"	-	-	-	450	684	122
100BYZ412.2L	878	585	345	475	225	100	150	4"	-	-	-	450	764	122
100BYZ412.2	878	585	345	475	225	100	150	4"	-	-	-	450	764	122
100BYZ414.6	878	585	345	475	225	100	150	4"	-	-	-	450	764	122
100BYZ419.3	968	585	345	475	225	100	150	4"	-	-	-	450	764	122

Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately

Model	A	B	B1	C	C1	D	DN1	DN2	E
100BYZ42.9	737	422	265	323	147	846	100	100	117
100BYZ43.7	737	422	265	323	147	846	100	100	117
100BYZ43.7H	733	460	280	335	149	884	100	100	120
100BYZ45.0L	806	460	280	335	149	884	100	100	120
100BYZ45.0	806	460	280	335	149	884	100	100	120
100BYZ46.5	806	460	280	335	149	884	100	100	120
100BYZ412.2L	878	585	345	457	207	1009	100	150	120
100BYZ412.2	878	585	345	457	207	1009	100	150	120
100BYZ414.6	878	585	345	457	207	1000	100	150	120
100BYZ419.3	968	585	345	457	207	1009	100	150	120

W1: lowest running water level
