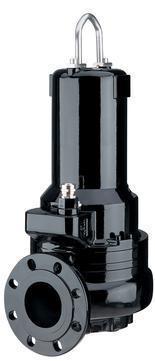

100BY | 3-phase / 50Hz

A closed single-channel impeller ensures, that sewage water containing sludge and fibrous substances can be pumped efficiently without clogging.

Performance curves & Specifications Material Dimensions

Model		Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	Dry weight kg *		Impeller passage mm
free standing	with guide rail fitting	Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	free standing	with guide rail fitting	Impeller passage mm

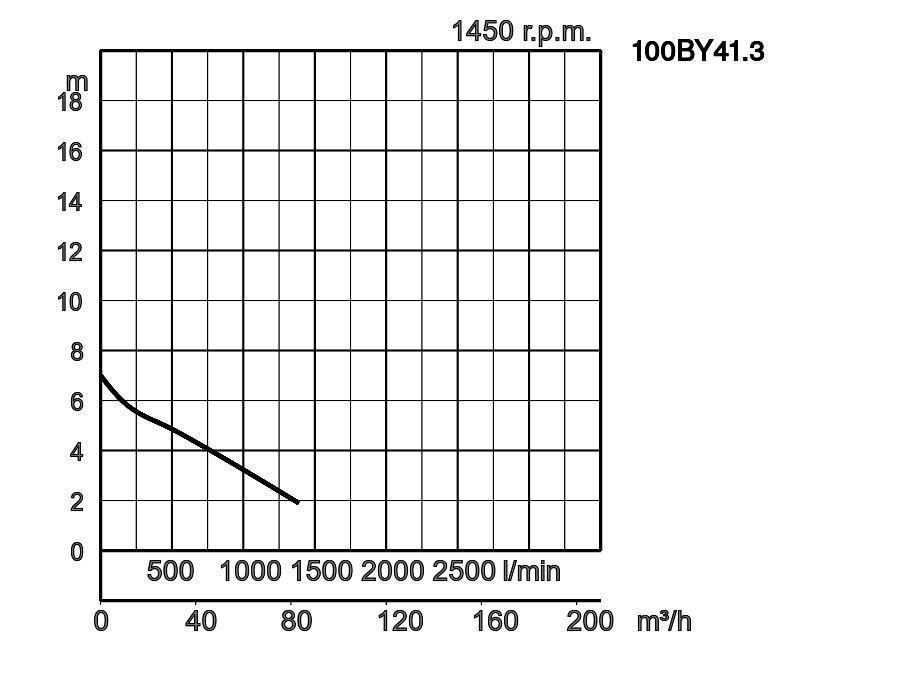

100BY41.3	TOS100BY41.3	1 print 100BY41.3_1.pdf	100	1,3	3	1450	7,0	1387	direct	74,0	74,0	80

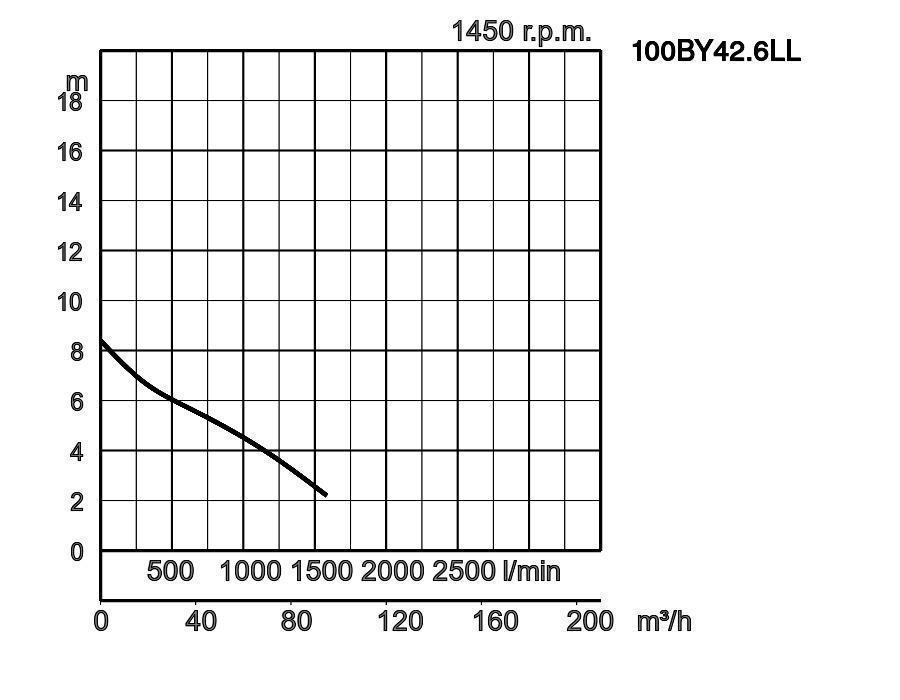

100BY42.6LL	TOS100BY42.6LL	2 print 100BY42.6LL_1.pdf	100	2,6	3	1450	8,4	1583	direct	80,0	80,0	80

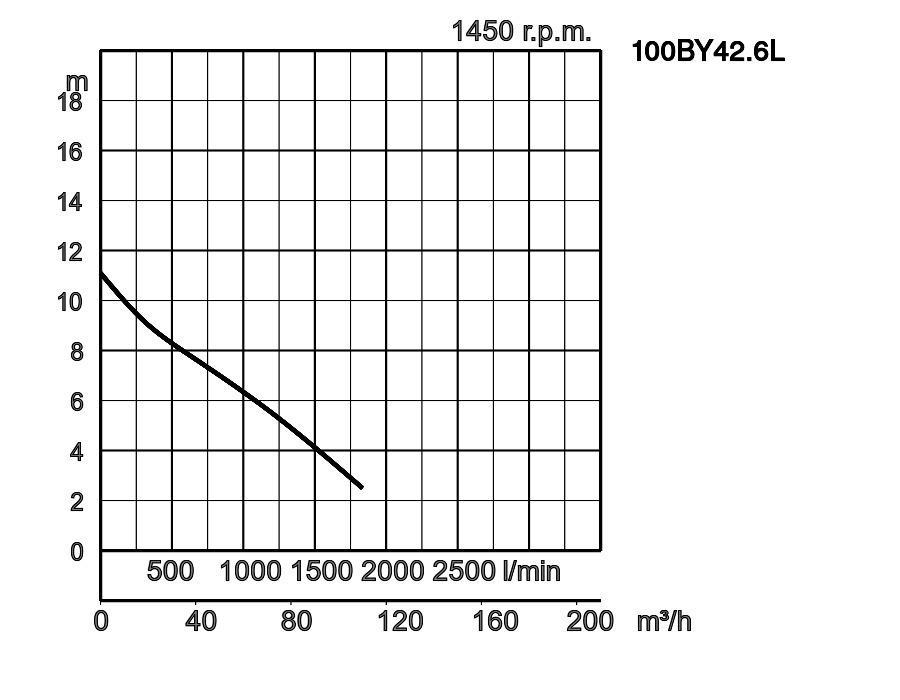

100BY42.6L	TOS100BY42.6L	3 print 100BY42.6L_1.pdf	100	2,6	3	1450	11,1	1833	direct	82,0	82,0	80

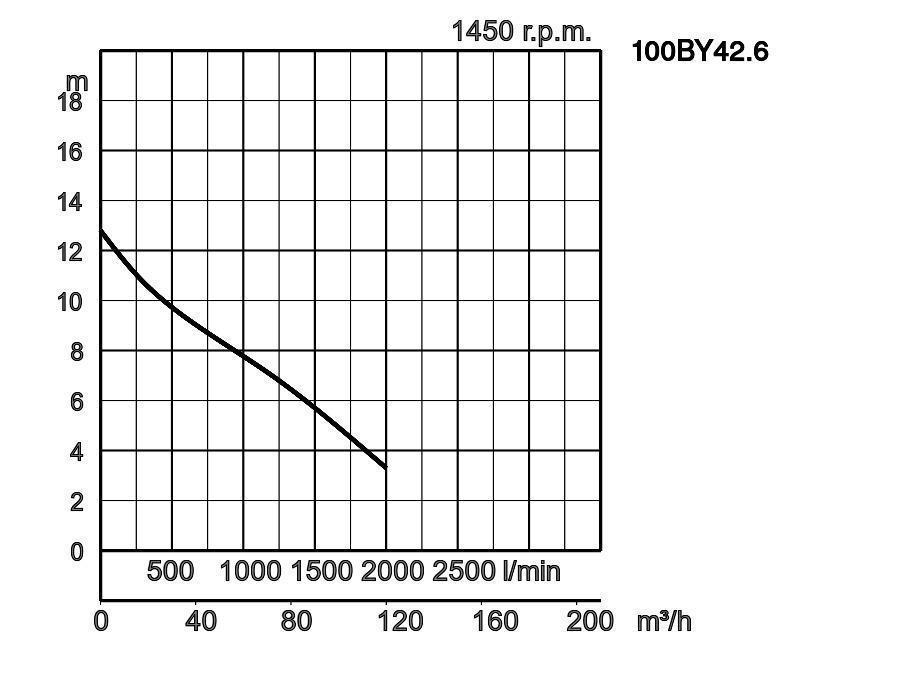

100BY42.6	TOS100BY42.6	4 print 100BY42.6_1.pdf	100	2,6	3	1450	12,8	2000	direct	82,0	82,0	80

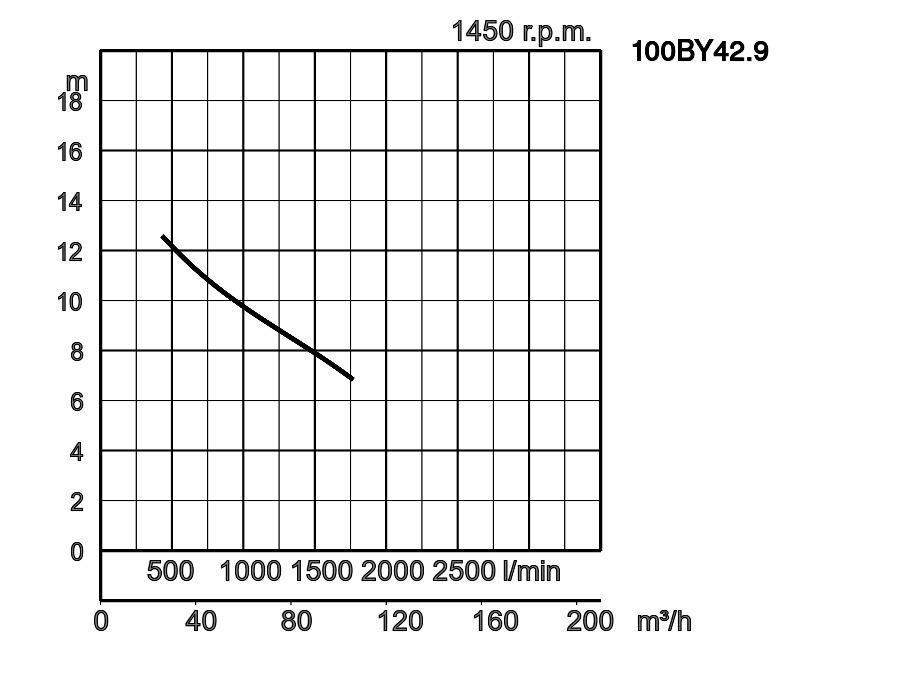

100BY42.9	TOS100BY42.9	5 print 100BY42.9_1.pdf	100	2,9	3	1450	15,5	1767	direct	118,0	118,0	80

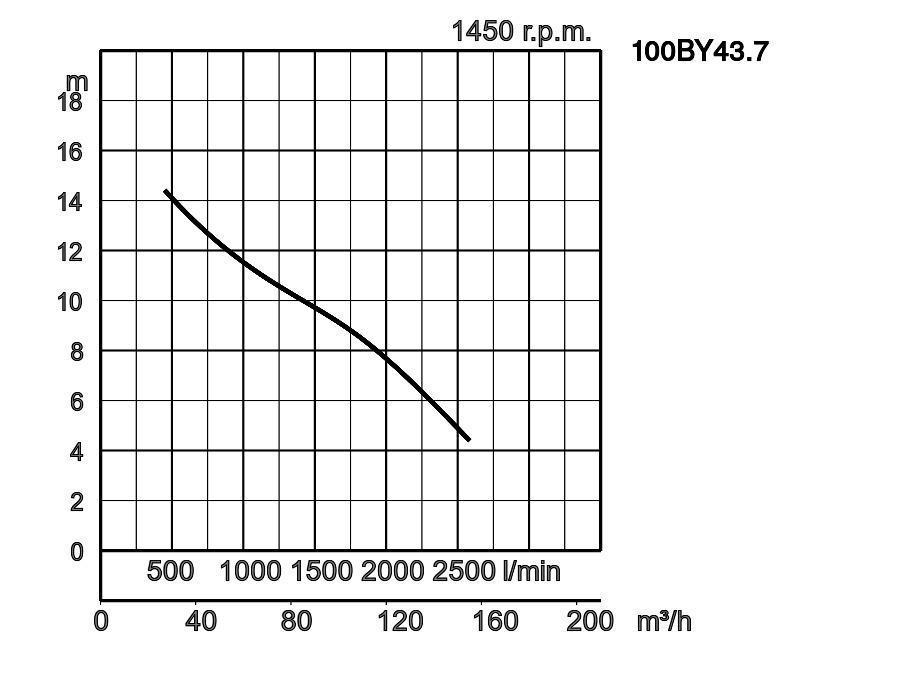

100BY43.7	TOS100BY43.7	6 print 100BY43.7_1.pdf	100	3,7	3	1450	14,4	2583	star/delta	122,0	122,0	80

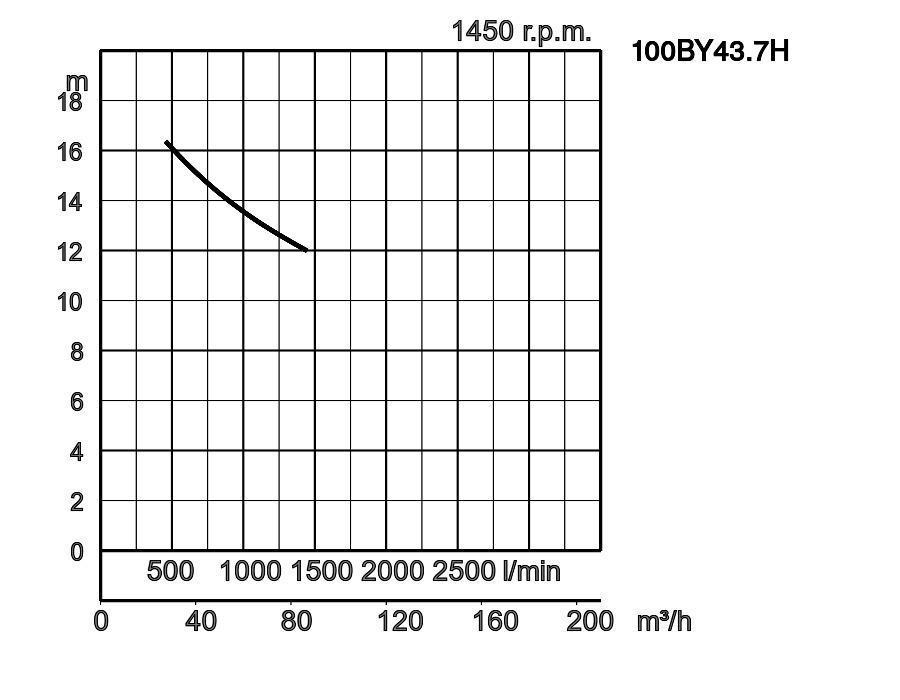

100BY43.7H	TOS100BY43.7H	7 print 100BY43.7H_1.pdf	100	3,7	3	1450	16,1	1444	star/delta	122,0	122,0	80

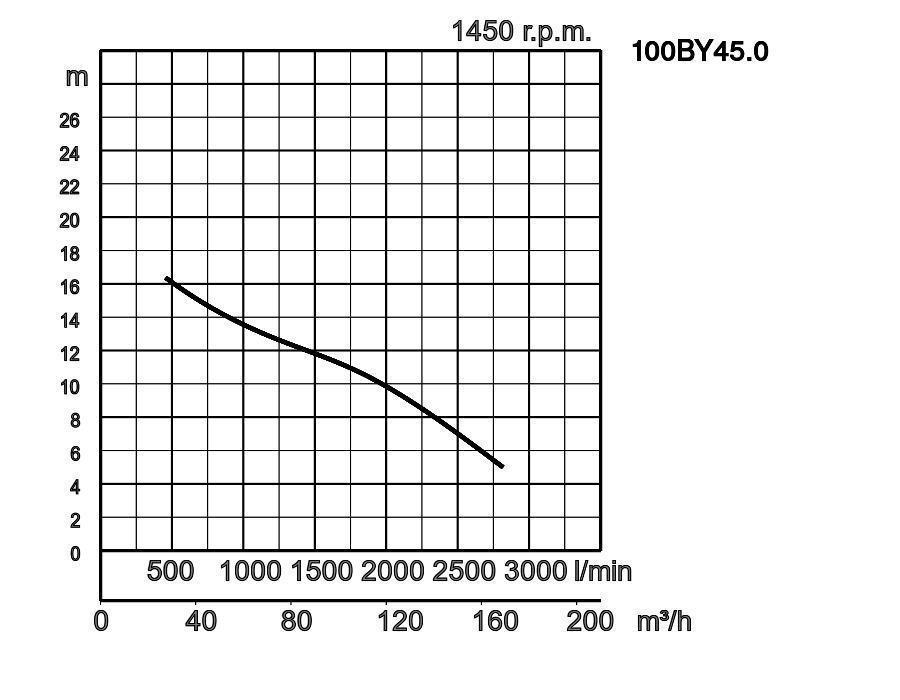

100BY45.0	TOS100BY45.0	8 print 100BY45.0_1.pdf	100	5,0	3	1450	16,1	2817	star/delta	132,0	132,0	80

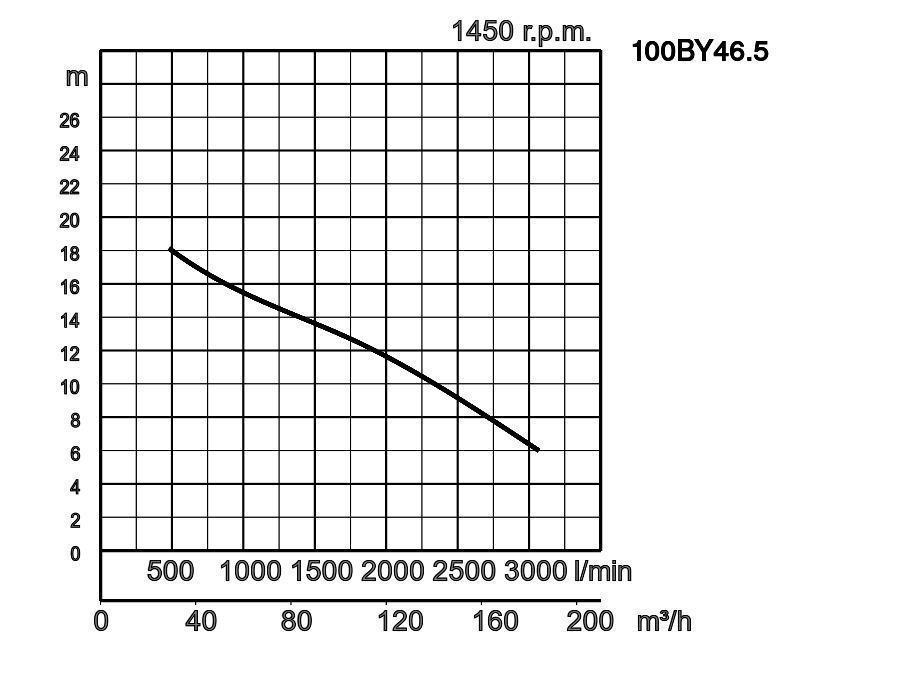

100BY46.5	TOS100BY46.5	9 print 100BY46.5_1.pdf	100	6,5	3	1450	18,0	3067	star/delta	135,0	135,0	80

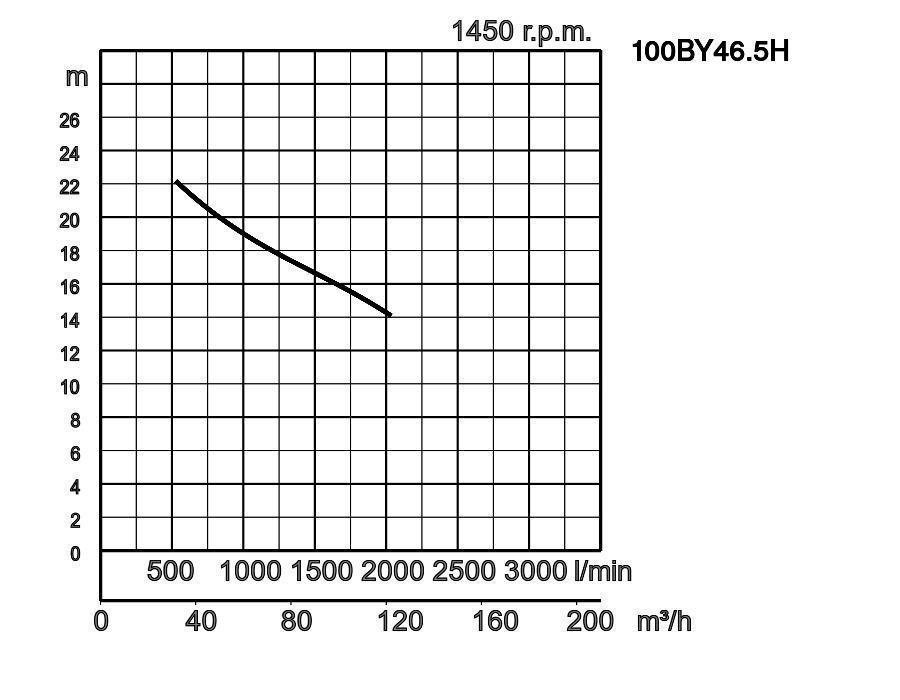

100BY46.5H	TOS100BY46.5H	10 print 100BY46.5H_1.pdf	100	6,5	3	1450	22,1	2033	star/delta	142,2	142,2	80

ø Discharge bore mm			100mm
Pumping Fluid	Temperature		0-40°C
Pumping Fluid	Type of Fluid		Municipal sewage
Pump	Compo- nents	Impeller	Single channel impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Grey iron casting EN-GJL-250
		Casing	Grey iron casting EN-GJL-250
		Shaft Seal	SiC, upper in oil bath
		Wearring	Bronze
Motor	Type, Poles		Induction motor, 4 poles, IP68
	Phase / Voltage		3-phase / 400V / 50Hz / d.o.l., 3-phase / 400V / 50Hz / s.d.
	Lubrication		Turbine oil (ISO VG32)
	Motor Protector (built-in)		Miniature protector
	Insulation		Insulation class H
	Material	Casing	Grey iron casting EN-GJL-250
		Shaft	Stainless steel EN-X14CrMoS17
		Cable	Rubber, 10m H07RN8-F
Discharge Connection			Flange DIN/ANSI DN100 (PN10)
Optional Accessories			Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types

W1: lowest running water level

Model	A	B	B1	C	C1	DN1	DN2	DN3	F1	F2	F3	G	H	J1
100BY41.3	517	360	200	305	145	100	100	4"	-	-	-	395	577	122
100BY42.6LL	554	360	200	305	145	100	100	4"	-	-	-	395	577	122
100BY42.6L	554	360	200	305	145	100	100	4"	-	-	-	395	577	122
100BY42.6	554	360	200	305	145	100	100	4"	-	-	-	395	577	122
100BY42.9	692	460	280	357	163	100	100	4"	-	-	-	395	656	122
100BY43.7	692	460	280	357	163	100	100	4"	-	-	-	395	656	122
100BY43.7H	692	460	280	357	163	100	100	4"	-	-	-	395	656	122
100BY45.0	765	460	280	357	163	100	100	4"	-	-	-	395	656	122
100BY46.5	765	460	280	357	163	100	100	4"	-	-	-	395	656	122
100BY46.5H	772	488	300	381	178	100	100	4"	-	-	-	395	677	122

Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately

Model	A	B	B1	C	C1	D	DN1	DN2	E
100BY41.3	517	360	200	305	145	784	100	100	147
100BY42.6LL	554	360	200	305	145	784	100	100	147
100BY42.6L	554	360	200	305	145	784	100	100	147
100BY42.6	554	360	200	305	145	784	100	100	147
100BY42.9	692	460	280	357	163	884	100	100	140
100BY43.7	692	460	280	357	163	884	100	100	140
100BY43.7H	692	460	280	357	163	884	100	100	140
100BY45.0	765	460	280	357	163	884	100	100	140
100BY46.5	765	460	280	357	163	884	100	100	140
100BY46.5H	772	488	300	381	178	912	100	100	145

W1: lowest running water level
