GSD | 3-phase / 50Hz

Heavy duty sand pump - a special steel impeller and suction plate have greatly increased the pump's life. The casing is designed to have wide passing area, thorough thickness and anti-abrasion material

GSD | 3-phase / 50Hz

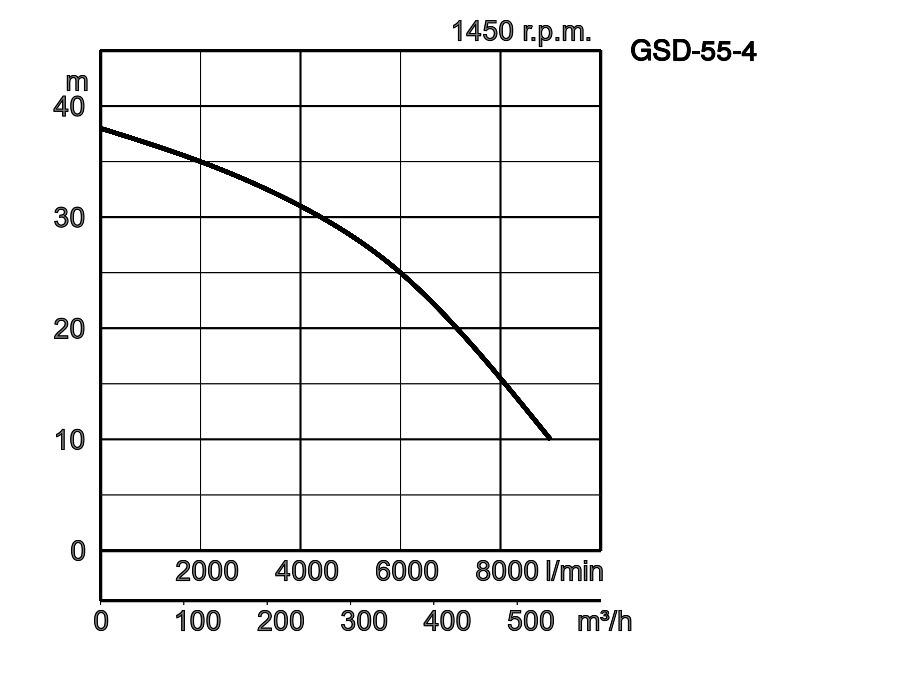

ModelColour code curveBore mmMotor output kWRated current AHead max. mCapacity max. l/minDry weight kg w/o cableMax. solid handling ø mmPressure resistance max. mCable length m
GSD-55-4 250 55,0 123,0 38,0 9000 1215 25 20 20
ø Discharge bore mm 250mm
Pumping Fluid Type of Fluid Sludge, Slurry, Liquids containing sandy mud and/or bentonite
Temperature 0-40°C
Pump Compo- nents Impeller Open type impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material Impeller Chromium iron casting
Casing Grey iron casting EN-GJL-200
Suction Plate Chromium iron casting
Shaft Seal Silicon carbide in oil bath
Motor Type, Poles Induction motor, 4 poles, IP68
Motor Protector (built-in) Miniature protector
Insulation Insulation class F
Phase / Voltage 3-phase / 400V / 50Hz / s.d.
Lubrication Turbine oil (ISO VG32)
Material Casing Grey iron casting EN-GJL-150
Shaft Stainless steel EN-X30Cr13
Cable Rubber, NSSHÖU
Discharge Connection Hose coupling

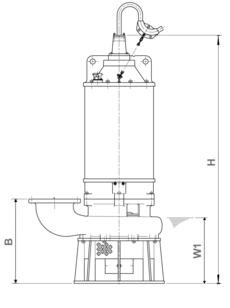

Dimensions in mm:

  • GSD-55-4

W1: lowest running water level

In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website www.tsurumi.eu/english/applications.htm.
