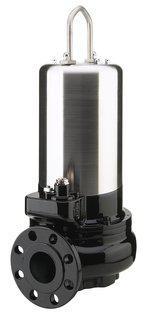

The UYZK-series is equipped with a vortex-impeller and a wide pump-casing. This construction prevents clogging by big or fibrous impurifications.
You are here:
- Start >
- Belgium >
- Sewage Treatment >
- Livestock & Fish Farming >
- 100UYZK
100UYZK | 3-phase / 50Hz
Downloads
| Model | Colour code curve | Bore mm | Power output kW | Phases | r.p.m. | Head max. m | Capacity max. l/min | Starting method | Dry weight kg * | Impeller passage mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| free standing | with guide rail fitting | free standing | with guide rail fitting | |||||||||

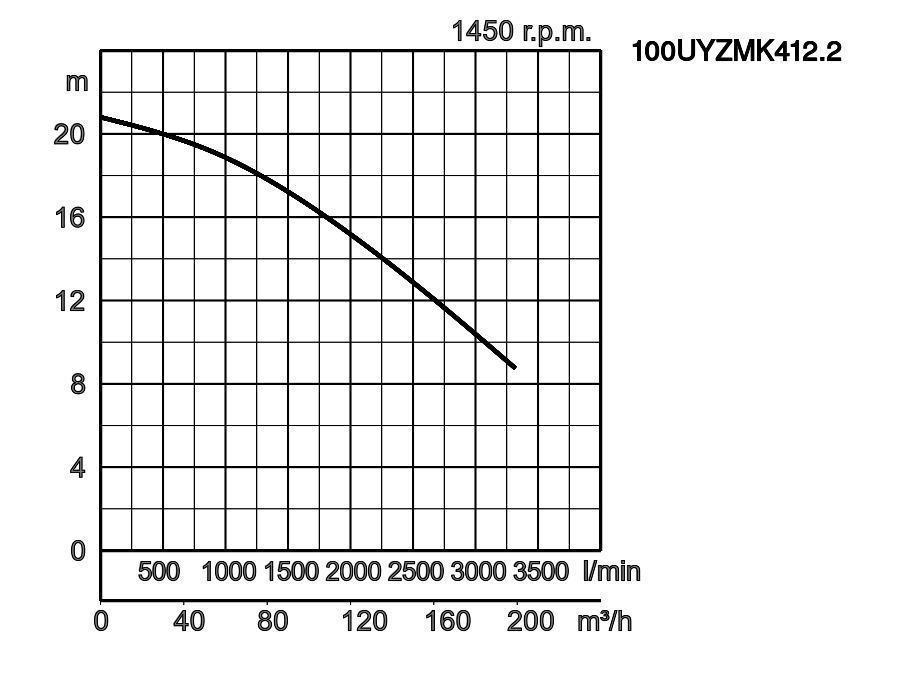

| 100UYZMK412.2 | 100UYZMK412.2 | 100 | 12,2 | 3 | 1450 | 20,8 | 3300 | star/delta | 290,4 | 207,2 | 100 | |

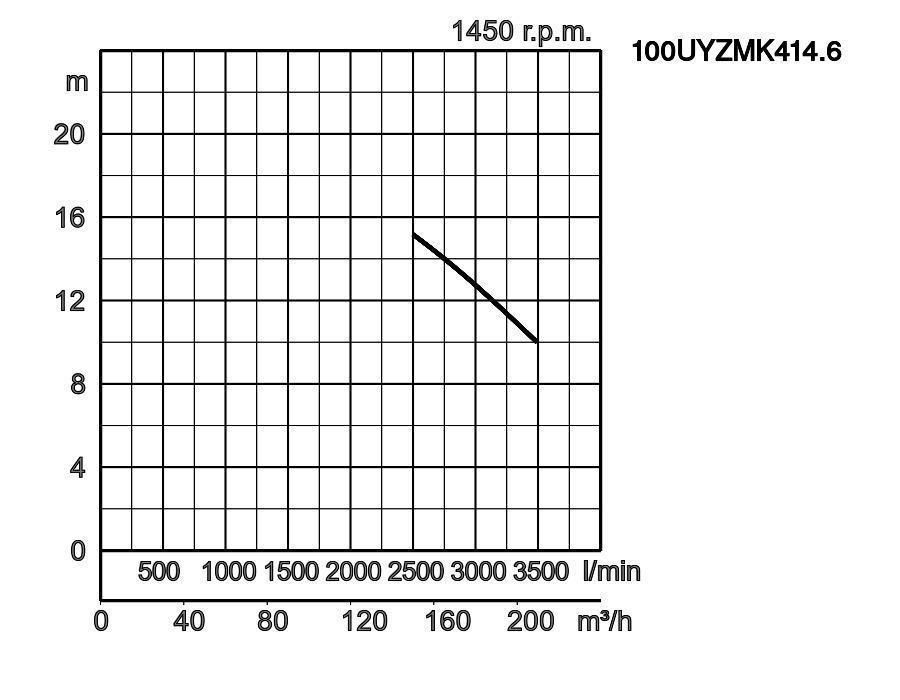

| 100UYZMK414.6 | 100UYZMK414.6 | 100 | 14,6 | 3 | 1450 | 15,3 | 3490 | star/delta | 291,3 | 208,2 | 100 | |

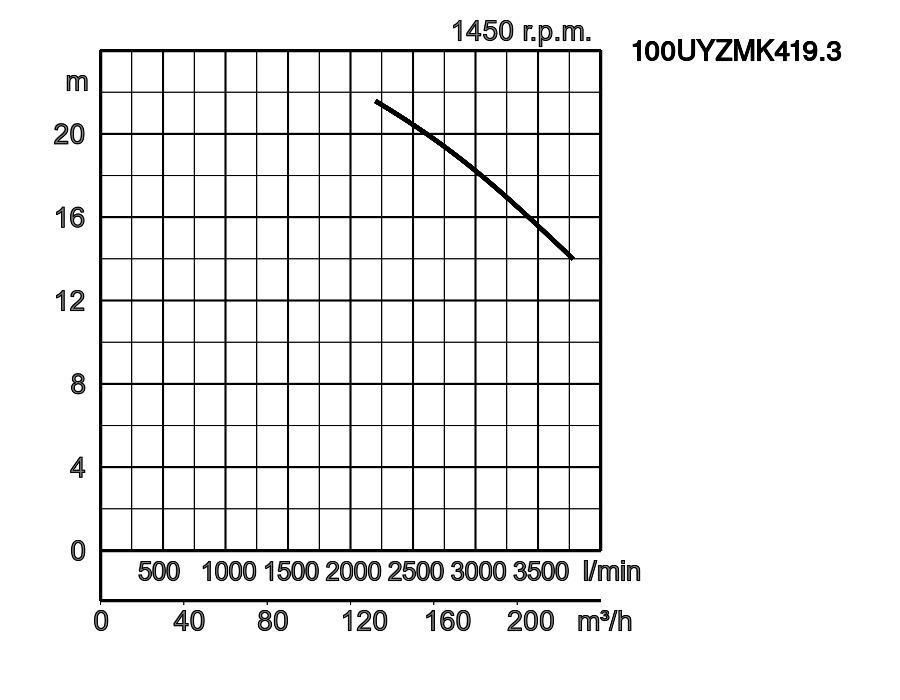

| 100UYZMK419.3 | 100UYZMK419.3 | 100 | 19,3 | 3 | 1450 | 7,0 | 2214 | star/delta | 318,0 | 234,8 | 100 | |
100UYZMK412.2_1.pdf
| ø Discharge bore mm | 100mm | |||
|---|---|---|---|---|
| Pumping Fluid | Type of Fluid | Municipal sewage | ||
| Temperature | 0-35°C | |||
| Pump | Compo- nents | Impeller | Vortex impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Grey iron casting EN-GJL-250 | ||
| Casing | Grey iron casting EN-GJL-250 | |||
| Shaft Seal | SiC, upper in oil bath | |||
| Wearring | Bronze | |||
| Motor | Insulation | Insulation class H | ||
| Motor Protector (built-in) | Miniature protector | |||
| Phase / Voltage | 3-phase / 400V / 50Hz / s.d. | |||
| Type, Poles | Induction motor, 4 poles, IP68 | |||
| Lubrication | Turbine oil (ISO VG32) | |||
| Material | Casing | Grey iron casting EN-GJL-250 | ||
| Shaft | Stainless steel EN-X5CrNiMo17-12-2 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Flange DIN/ANSI DN100 (PN10) | |||
| Optional Accessories | Horizontal installation / Vertical installation | |||
Dimensions in mm:
-
-
- 100UYZMK412.2
- 100UYZMK414.6
- 100UYZMK419.3
W1: lowest running water level
| Model | A | B | B1 | C | C1 | DN1 | DN2 | J2 | K1 | K2 | K3 | K4 | L | M | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100UYZMK412.2 | 994 | 576 | 345 | 457 | 207 | 100 | 150 | 197 | 205 | 500 | 637 | 832 | 197 | 520 | 942 |
| 100UYZMK414.6 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | 197 | 205 | 502 | 612 | 806 | 197 | 520 | 941 |
| 100UYZMK419.3 | 1098 | 555 | 345 | 410 | 205 | 100 | 150 | 197 | 205 | 502 | 612 | 806 | 197 | 520 | 941 |
Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately
Dimensions - guide rail fitting type in mm:
| Model | B | B1 | C | C1 | DN1 | DN2 | P1 | P2 | Q | R | S1 | S3 | T | U | V1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100UYZMK412.2 | 576 | 345 | 457 | 207 | 100 | 150 | 250 | 595 | 135 | 1006 | 350 | 120 | 842 | 952 | 310 |
| 100UYZMK414.6 | 555 | 345 | 410 | 205 | 100 | 150 | 230 | 575 | 110 | 1110 | 380 | 115 | 941 | 1046 | 310 |
| 100UYZMK419.3 | 555 | 345 | 410 | 205 | 100 | 150 | 230 | 575 | 110 | 1110 | 380 | 115 | 941 | 1046 | 310 |
-
-
- 100UYZMK412.2
- 100UYZMK414.6
- 100UYZMK419.3
W1: lowest running water level
