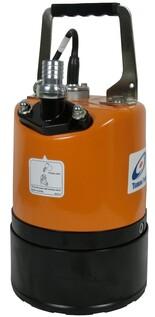

LSC | 1-phase / 50Hz

Original residue dewatering pump capable of pumping down to floor level. Even the smallest puddle can be pumped dry. Ideal for complete drainage of flat surfaces where a sump is not available: rooftops, parking lots, garages, roadways, pools,...

Downloads

Performance curves & Specifications Material Dimensions Application reports

Model	Colour code curve	Bore mm	Motor output kW	Rated current A	Head max. m	Capacity max. l/min	Dry weight kg w/o cable	Max. solid handling ø mm	Pressure resistance max. m	Cable length m
LSC1.4S	1 print LSC1.4S_1.pdf	25	0,48	2,9	11,0	170	12,0	6	10	10
LSCE1.4S		25	0,48	2,9	11,0	170	12,6	6	10	10
LSC2.75S	2 print LSC2.75S_1.pdf	50	0,75	4,5	15,0	228	15,2	6	10	10

ø Discharge bore mm			25, 50
Pumping Fluid	Temperature		0-40°C
Pumping Fluid	Type of Fluid		Cleaning water, Water on floor, Puddles
Pump	Compo- nents	Impeller	Semi-Vortex impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Urethane rubber
		Casing	Ethylene propylene rubber
		Suction Plate	Steelplate+Urethane rubber
		Shaft Seal	Silicon carbide in oil bath
Motor	Lubrication		Turbine oil (ISO VG32)
	Type, Poles		Induction motor, 2 poles, IP68
	Phase / Voltage		Single phase 230V / 110V / 50Hz
	Motor Protector (built-in)		Miniature protector
	Insulation		Insulation class E
	Material	Casing	Aluminium die casting
		Shaft	Stainless steel EN-X6Cr13
		Cable	Rubber, 10m H07RN8-F
Discharge Connection			Hose coupling

Dimensions in mm:

LSCE1.4S

LSC1.4S
LSC2.75S

W1: lowest running water level

Model	d	A	A1	B	H
LSC1.4S	25	196	168	316	258
LSCE1.4S	-	-	-	-	-
LSC2.75S	50	197	167	357	313

In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website www.tsurumi.eu/english/applications.htm.
