Sewage pump equipped with a vortex-impeller and a wide pump-casing. This construction prevents clogging by big or fibrous impurifications. The pumps are as a standard equipped with a moisture sensor and a cooling jacket and thus can constructively be installed dry- and wet-well mounted. Option for explosion-proof version available.
| Model | Colour code curve | Bore mm | Power output kW | Phases | r.p.m. | Head max. m | Capacity max. l/min | Starting method | Vægt | Impeller passage mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| free standing | with guide rail fitting | free standing | with guide rail fitting | |||||||||

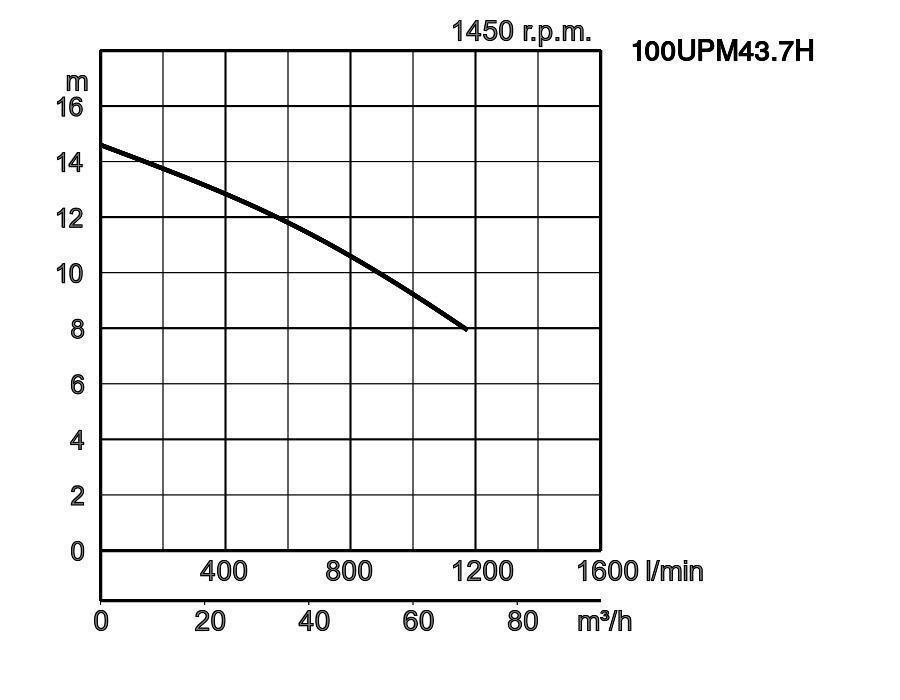

| 100UPM43.7H | TOS100UPM43.7H | 100 | 3,7 | 3 | 1450 | 14,6 | 1173 | star/delta | 124,0 | 124,0 | 80 | |

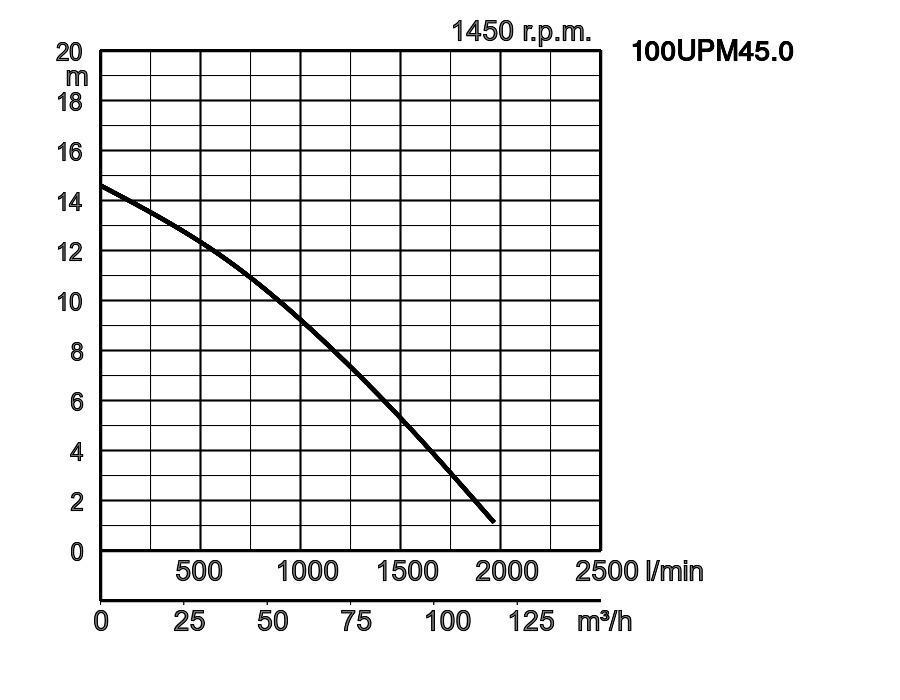

| 100UPM45.0 | TOS100UPM45.0 | 100 | 5,0 | 3 | 1450 | 14,6 | 1967 | star/delta | 124,0 | 124,0 | 80 | |

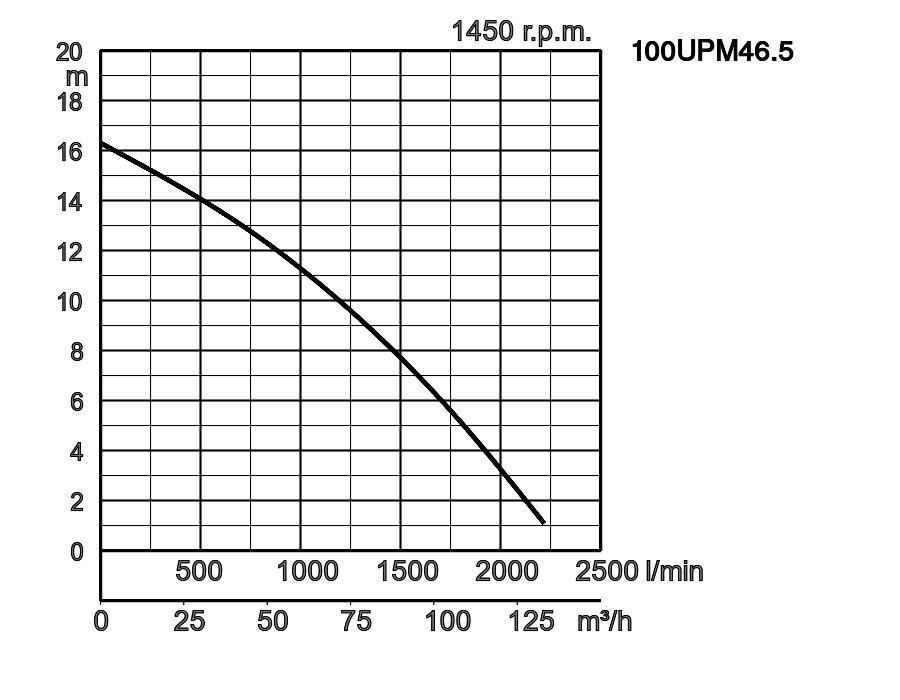

| 100UPM46.5 | TOS100UPM46.5 | 100 | 6,5 | 3 | 1450 | 16,3 | 2217 | star/delta | 141,0 | 141,0 | 80 | |
| ø Discharge bore mm | 100mm | |||
|---|---|---|---|---|
| Pumping Fluid | Temperature | 0-40°C | ||
| Type of Fluid | Municipal sewage | |||
| Pump | Compo- nents | Impeller | Vortex impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Grey iron casting EN-GJL-250 | ||
| Casing | Grey iron casting EN-GJL-250 | |||
| Shaft Seal | SiC, upper in oil bath | |||
| Wearring | Bronze | |||
| Motor | Insulation | Insulation class H | ||
| Lubrication | Turbine oil (ISO VG32) | |||
| Motor Protector (built-in) | Miniature protector | |||
| Type, Poles | Induction motor, 4 poles, IP68 | |||
| Phase / Voltage | 3-phase / 400V / 50Hz / s.d. | |||
| Material | Casing | Grey iron casting EN-GJL-250 | ||
| Shaft | Stainless steel EN-X14CrMoS17 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Flange DIN/ANSI DN100 (PN10) | |||
| Optional Accessories | Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types | |||
| Model | A | B | B1 | C | C1 | DN1 | DN2 | DN3 | F1 | F2 | F3 | G | H | J1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100UPM43.7H | 722 | 438 | 280 | 316 | 158 | 100 | 100 | 4" | - | - | - | 395 | 657 | 122 |
| 100UPM45.0 | 722 | 438 | 280 | 316 | 158 | 100 | 100 | 4" | - | - | - | 395 | 657 | 122 |
| 100UPM46.5 | 792 | 438 | 280 | 316 | 158 | 100 | 100 | 4" | - | - | - | 395 | 657 | 122 |
| Model | A | B | B1 | C | C1 | D | DN1 | DN2 | E |
|---|---|---|---|---|---|---|---|---|---|
| 100UPM43.7H | 722 | 438 | 280 | 316 | 158 | 862 | 100 | 100 | 152 |
| 100UPM45.0 | 722 | 438 | 280 | 316 | 158 | 862 | 100 | 100 | 152 |
| 100UPM46.5 | 792 | 438 | 280 | 316 | 158 | 862 | 100 | 100 | 152 |
100UPM43.7H_1.pdf
